EGR Cooler, Housing, and Cooling Feed Hose Removal
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

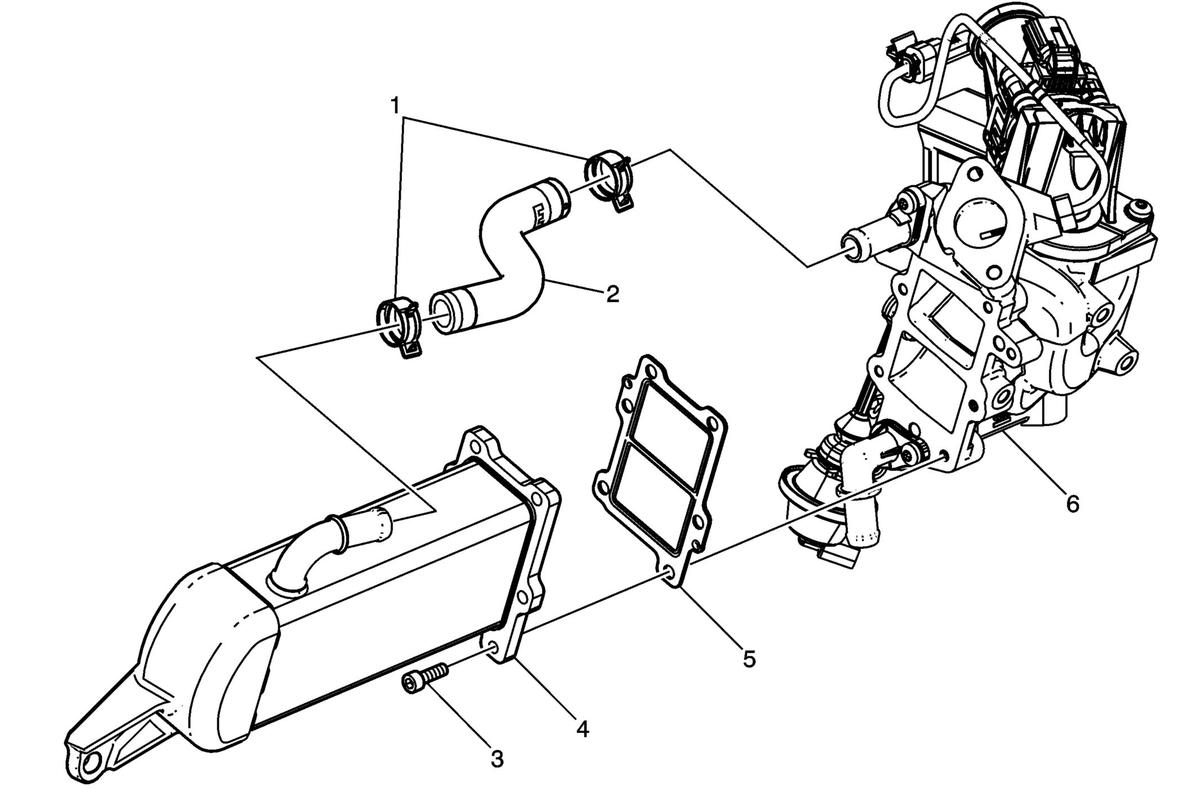

EGR Cooler, Housing, and Cooling Feed Hose Removal
| Callout | Component Name |
|---|---|
| 1 | Thermostat Bypass Hose Clamp |
| 2 | Exhaust Gas Recirculation Manifold Cooling Feed Hose |
| 3 | Exhaust Gas Recirculation Cooler Bolt |
| 4 | Exhaust Gas Recirculation Cooler |
| 5 | Exhaust Gas Recirculation Cooler Gasket
NOTE:
Discard gaskets, they are not reusable. |
| 6 | Exhaust Gas Recirculation Valve Machined Housing |
