EGR Assembly, Intake Manifold Tuning Valve Vacuum and Pipes Removal
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
EGR Assembly, Intake Manifold Tuning Valve Vacuum and Pipes Removal

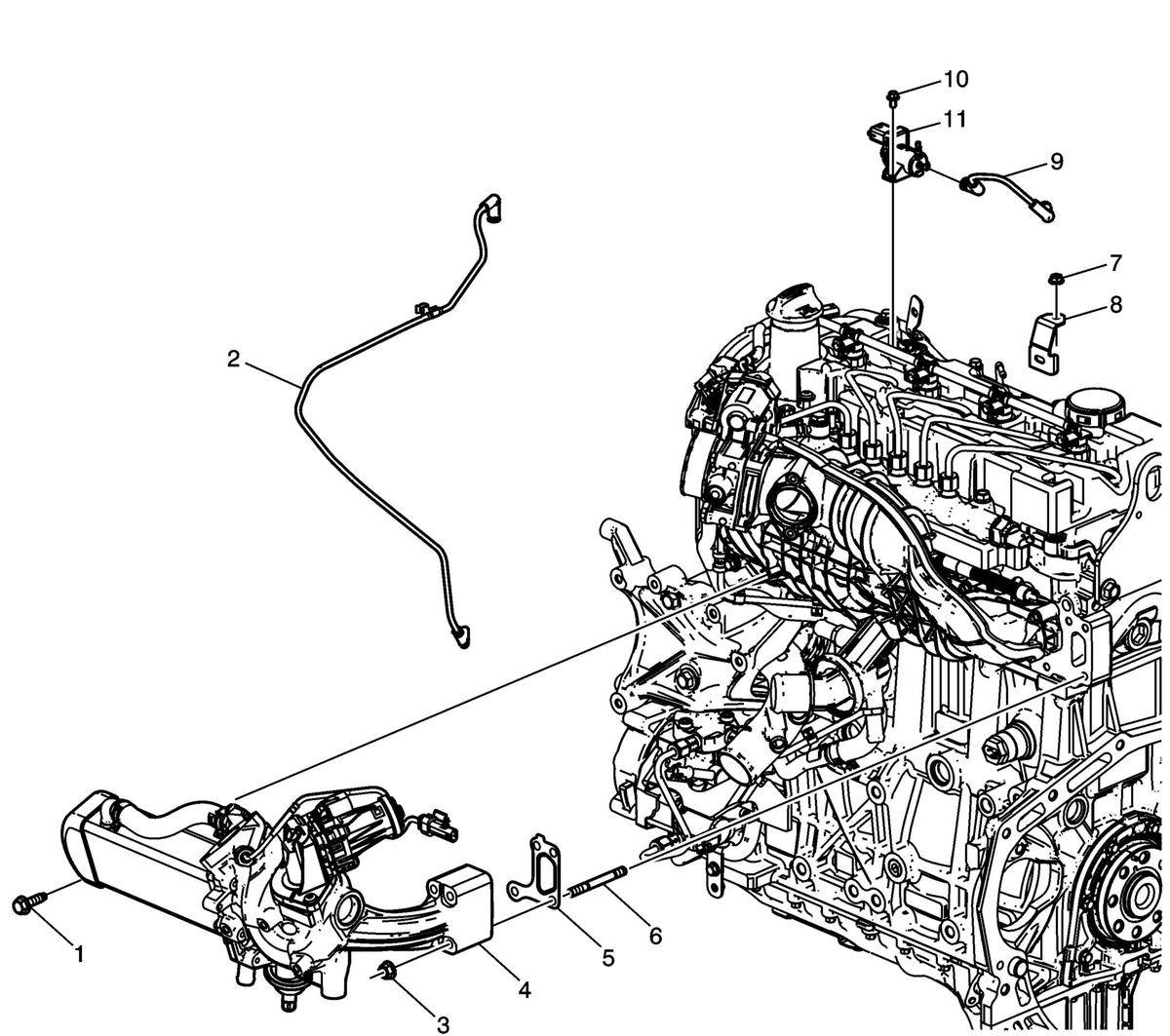

| Callout | Component Name |
|---|---|
| 1 | Exhaust Gas Recirculation Cooler Bolt |
| 2 | Exhaust Gas Recirculation Valve Vacuum Pipe |
| 3 | Exhaust Gas Recirculation Valve Adapter Nut |
| 4 | Exhaust Gas Recirculation Valve and Cooler |
| 5 | Exhaust Gas Recirculation Valve Gasket
NOTE:
Discard gaskets, they are not reusable. |
| 6 | Exhaust Gas Recirculation Valve Adapter Stud |
| 7 | Exhaust Temperature Sensor Connector Bracket Nut |
| 8 | Exhaust Temperature Sensor Bracket |
| 9 | Exhaust Gas Recirculation Valve Vacuum Pipe |
| 10 | Intake Manifold Tuning Vacuum Control Solenoid Valve Bolt |
| 11 | Intake Manifold Tuning Vacuum Control Solenoid Valve |
