EGR Pipe, Brace, and Hoses Installation
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
EGR Pipe, Brace, and Hoses Installation

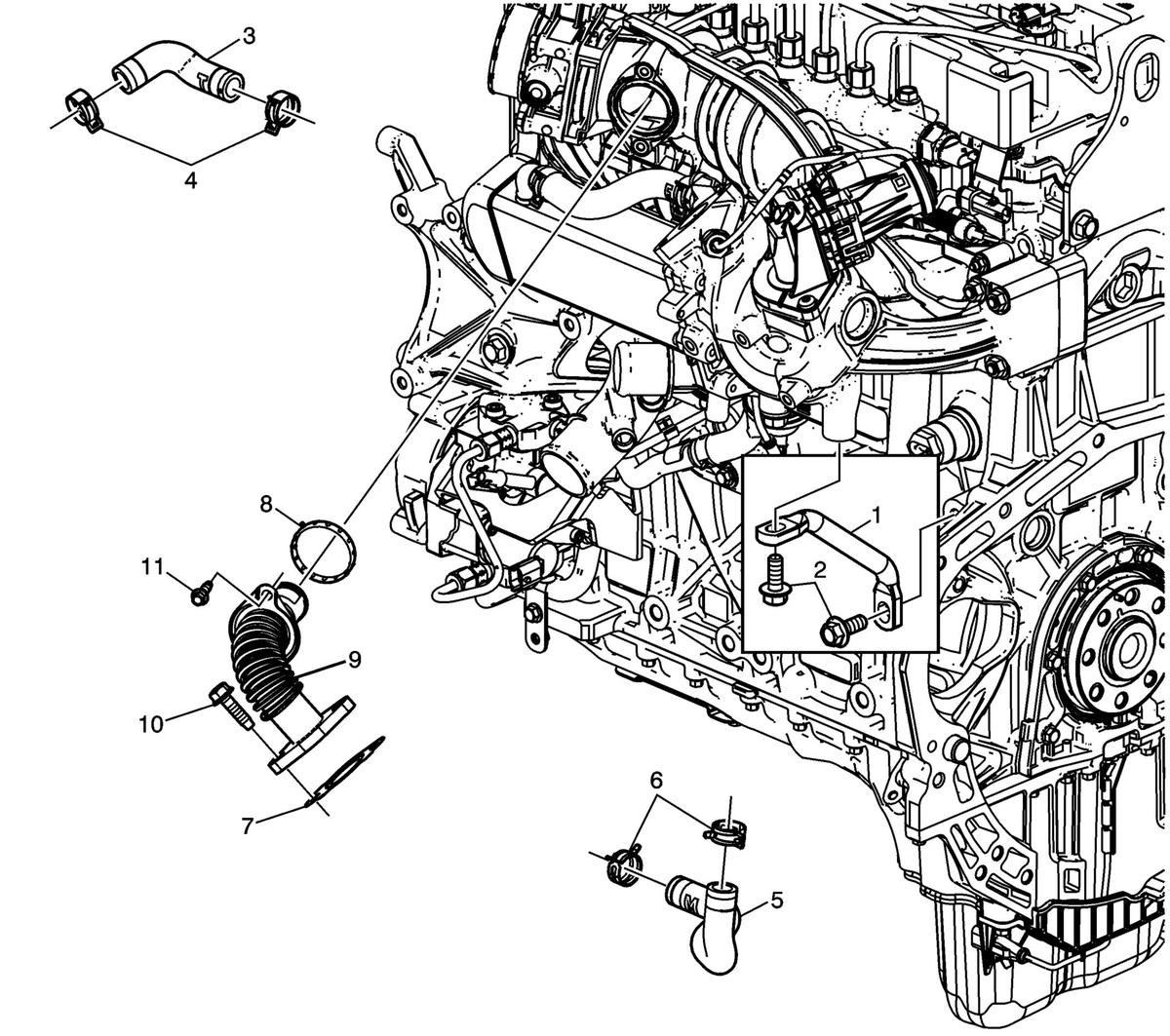

| Callout | Component Name |
|---|---|
| 1 | Exhaust Gas Recirculation Manifold Brace |
| 2 | Exhaust Gas Recirculation Manifold Brace Bolt
CAUTION:
Refer to Fastener Caution . Tighten 58 N. m (43 lb ft) |
| 3 | Exhaust Gas Recirculation Manifold Cooling Feed Hose |
| 4 | Thermostat Bypass Hose Clamp
NOTE:
Use NEW clamps. |
| 5 | Exhaust Gas Recirculation Manifold Cooling Return Hose |
| 6 | Thermostat Bypass Hose Clamp |
| 7 | Exhaust Gas Recirculation Pipe Gasket
NOTE:
Use a NEW gasket. |
| 8 | Exhaust Gas Recirculation Pipe Gasket
NOTE:
Use a NEW gasket. |
| 9 | Exhaust Gas Recirculation Pipe |
| 10 | Exhaust Gas Recirculation Pipe Bolt Tighten 25 N. m (18 lb ft) |
| 11 | Exhaust Gas Recirculation Pipe Bolt Tighten 11 N. m (97 lb in) |
