EGR Cooler, Housing, and Cooling Feed Hose Installation
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
EGR Cooler, Housing, and Cooling Feed Hose Installation

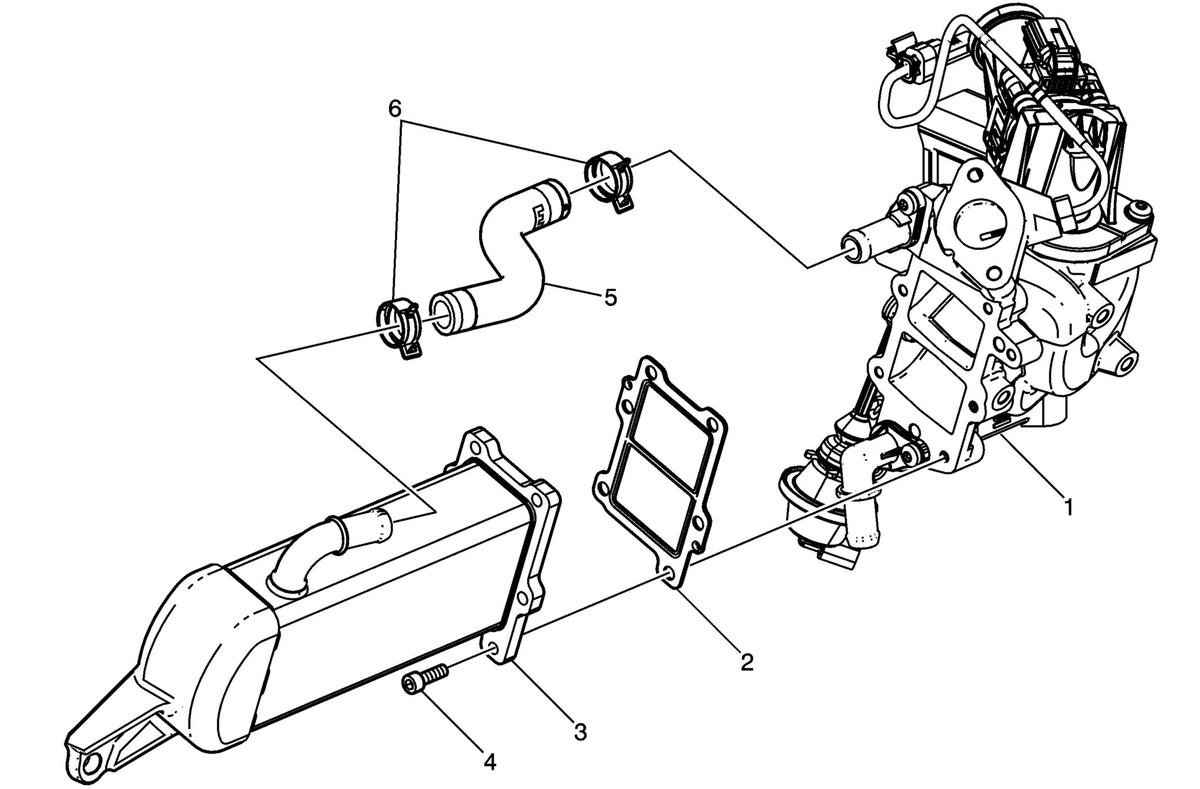

| Callout | Component Name |
|---|---|
| 1 | Exhaust Gas Recirculation Valve Machined Housing |
| 2 | Exhaust Gas Recirculation Cooler Gasket
NOTE:
Use a NEW gasket. |
| 3 | Exhaust Gas Recirculation Cooler |
| 4 | Exhaust Gas Recirculation Cooler Bolt
CAUTION:
Refer to Fastener Caution . Tighten 15 N. m (11 lb ft) |
| 5 | Exhaust Gas Recirculation Manifold Cooling Feed Hose |
| 6 | Thermostat Bypass Hose Clamp |
