EGR Assembly, Intake Manifold Tuning Valve Vacuum and Pipes Installation
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

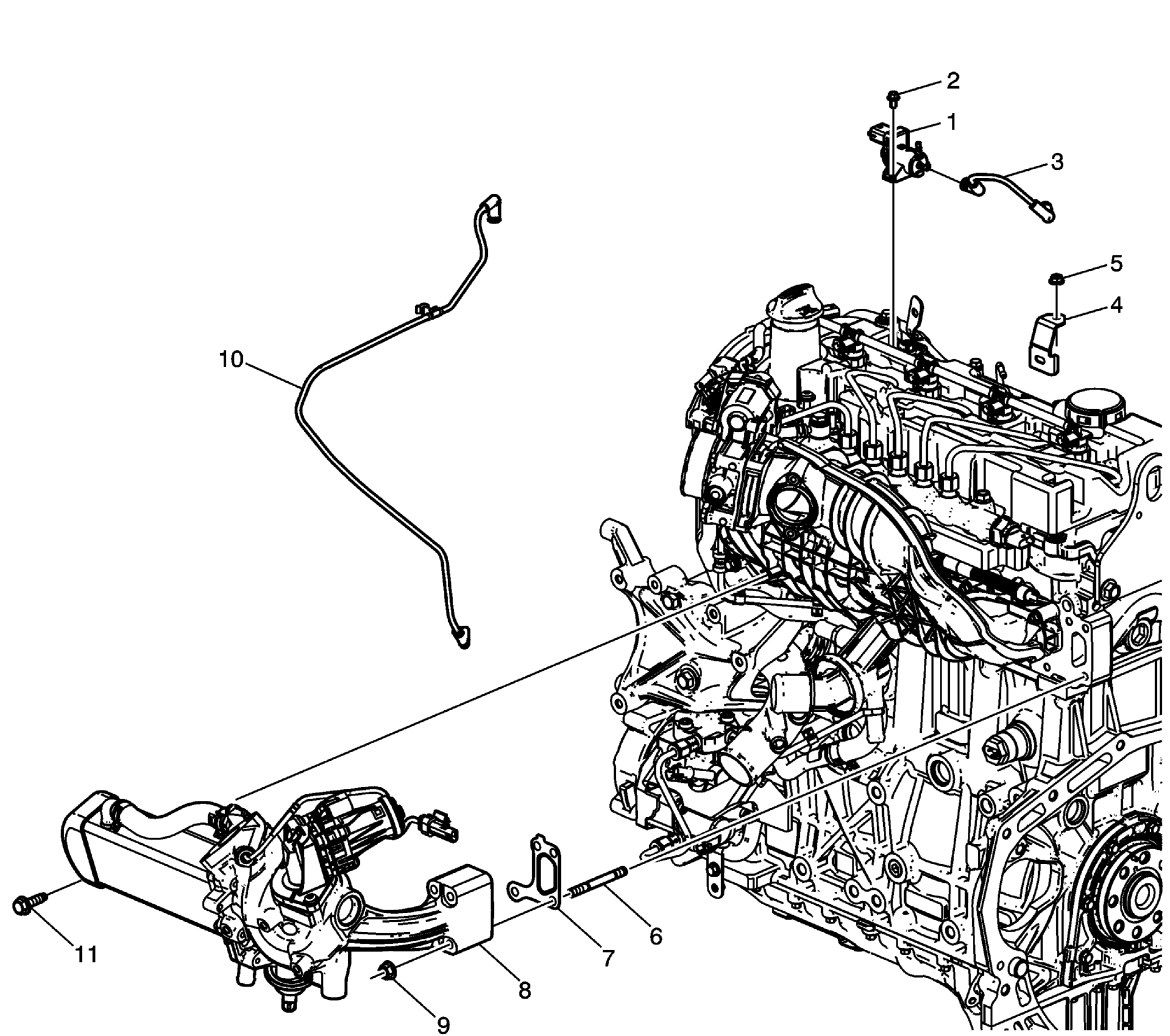

EGR Assembly, Intake Manifold Tuning Valve Vacuum and Pipes Installation
| Callout | Component Name |
|---|---|
| 1 | Intake Manifold Tuning Vacuum Control Solenoid Valve |
| 2 | Intake Manifold Tuning Vacuum Control Solenoid Valve Bolt
CAUTION:
Refer to Fastener Caution . Tighten 7 N. m (62 lb in) |
| 3 | Exhaust Gas Recirculation Valve Vacuum Pipe |
| 4 | Exhaust Temperature Sensor Bracket |
| 5 | Exhaust Temperature Sensor Connector Bracket Nut Tighten 10 N. m (89 lb in) |
| 6 | Exhaust Gas Recirculation Valve Adapter Stud |
| 7 | Exhaust Gas Recirculation Valve Gasket
NOTE:
Use a NEW gasket. |
| 8 | Exhaust Gas Recirculation Valve and Cooler |
| 9 | Exhaust Gas Recirculation Valve Adapter Nut Tighten 25 N. m (18 lb ft) |
| 10 | Exhaust Gas Recirculation Valve Vacuum Pipe |
| 11 | Exhaust Gas Recirculation Cooler Bolt Tighten 25 N. m (18 lb ft) |
