Engine Front Cover Cleaning and Inspection

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Clean and inspect the timing belt upper front cover (1).
Courtesy of GENERAL MOTORS COMPANY

Clean and inspect the timing belt lower front cover (1).
Courtesy of GENERAL MOTORS COMPANY

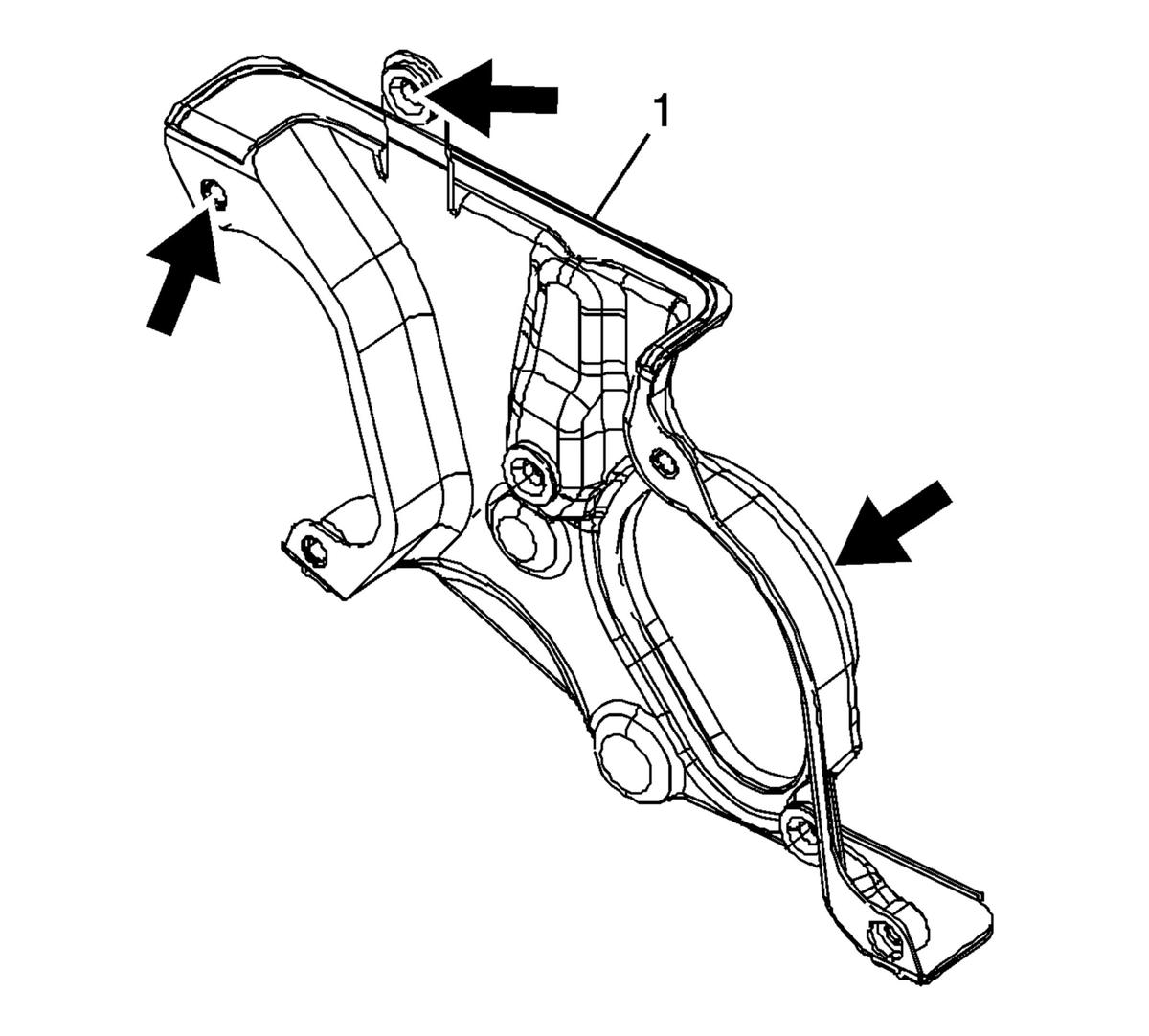

Clean and inspect the timing belt rear cover (1).
