Engine Coolant Thermostat Removal

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

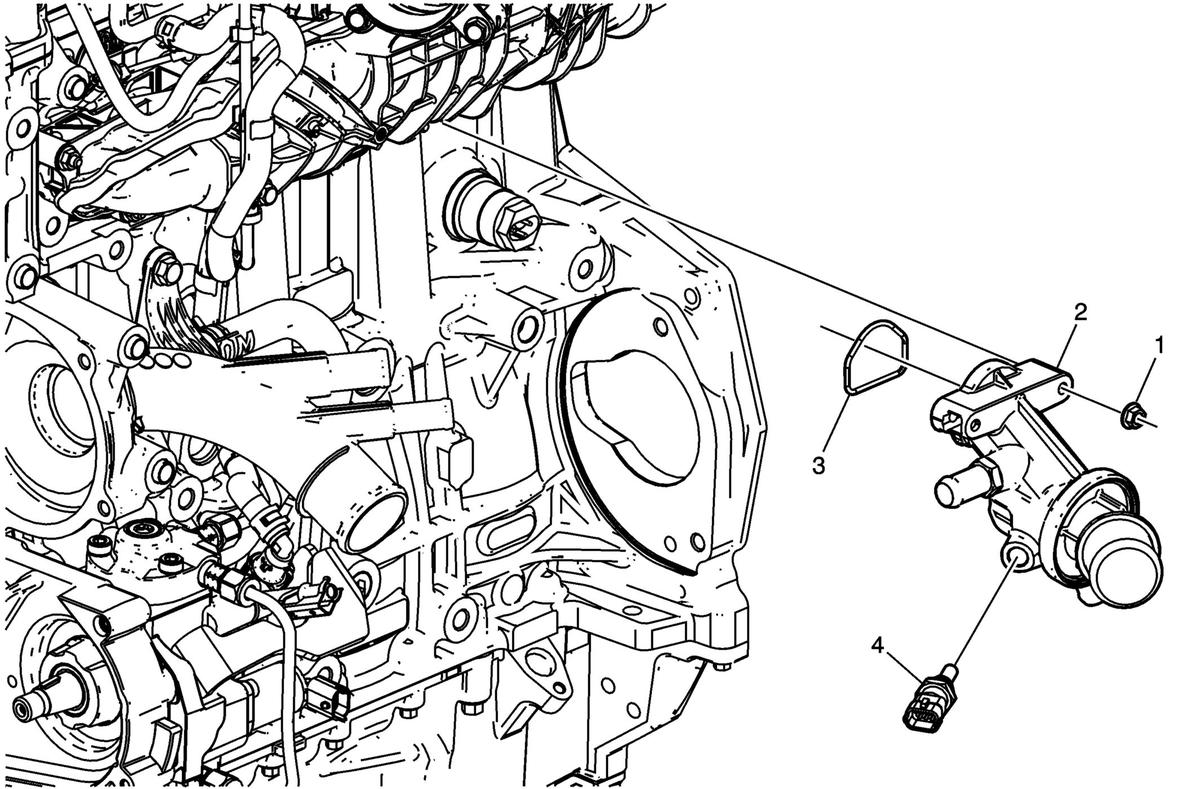

GM4071549Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Intake Manifold Nut
2 Engine Coolant Thermostat
3 Engine Coolant Thermostat Gasket
NOTE:

Discard gasket, it is not reusable.
4 Engine Coolant Temperature Sensor
