Cylinder Head Removal
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

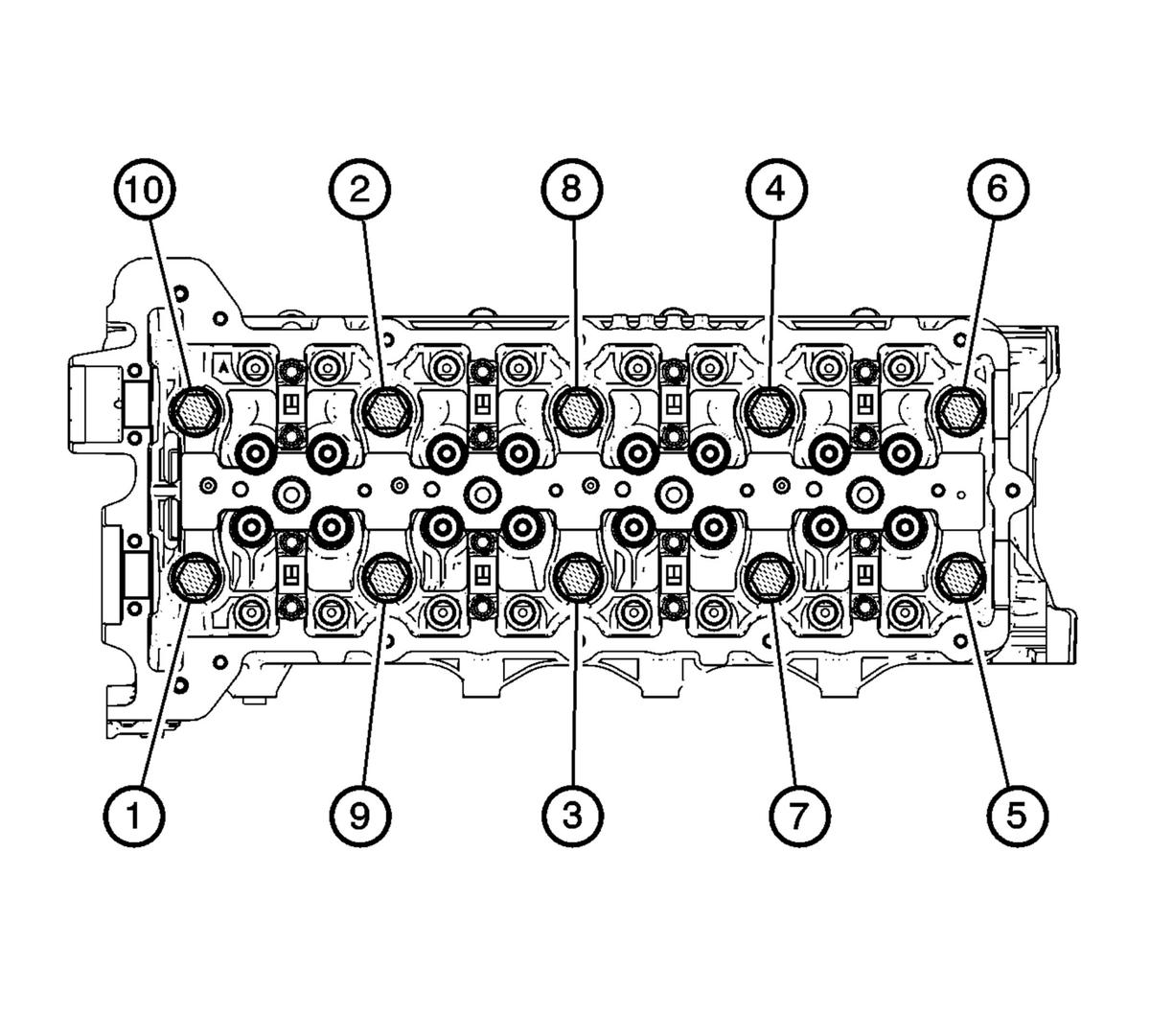

Remove the cylinder head bolts in sequence.
 Courtesy of GENERAL MOTORS COMPANY
|
NOTE:
Ensure that the glow plugs have all been removed before removing cylinder head.

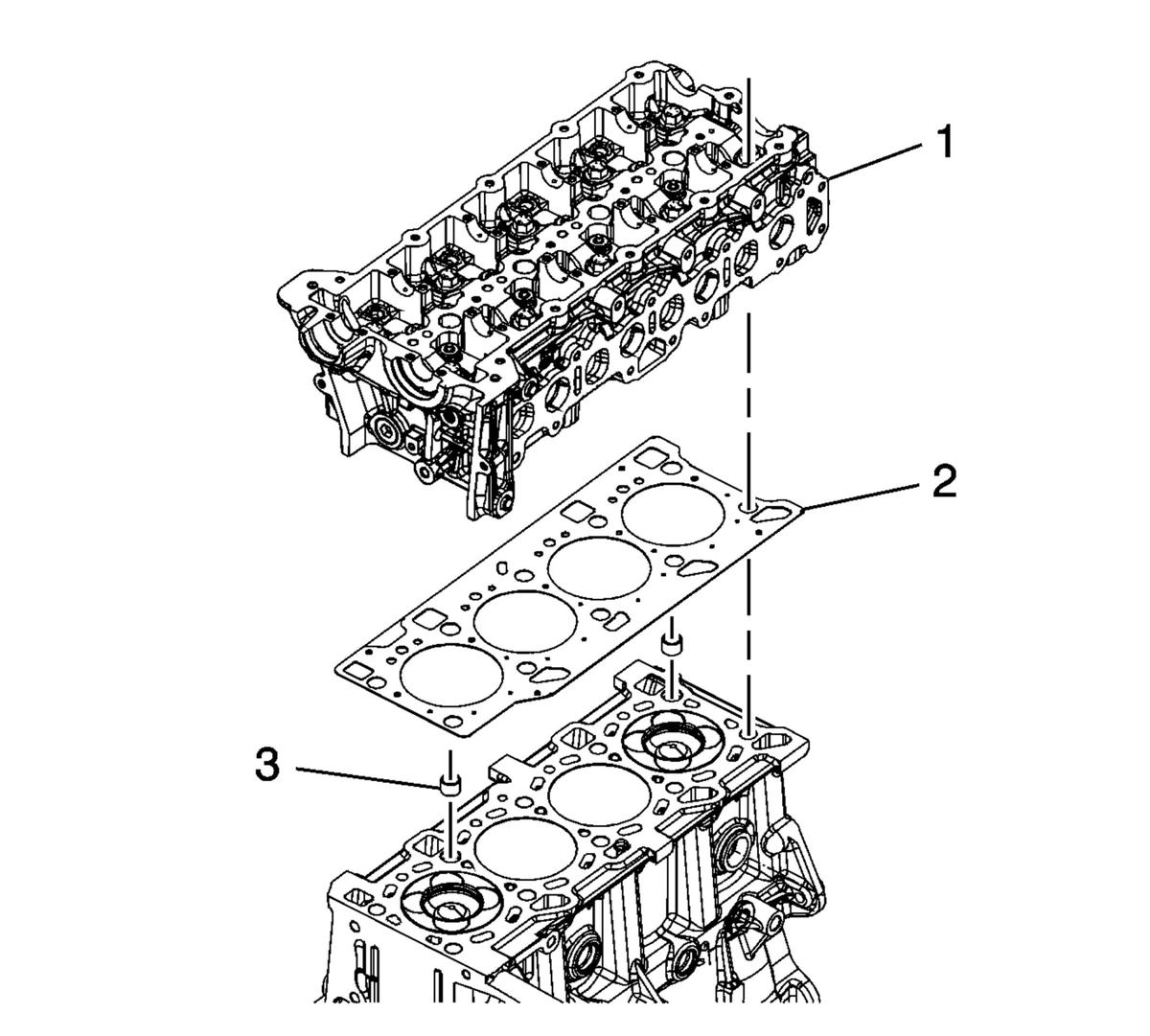

Remove the, cylinder head (1) and gasket (2).
- Remove the cylinder head locating pins (3).
