Compressor Air Intake Turbocharger Assemble

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY
NOTE:
- Do not twist the crank or the actuator rod end during install.
- Do not replace the original actuator rod, as it is calibrated to the turbocharger.

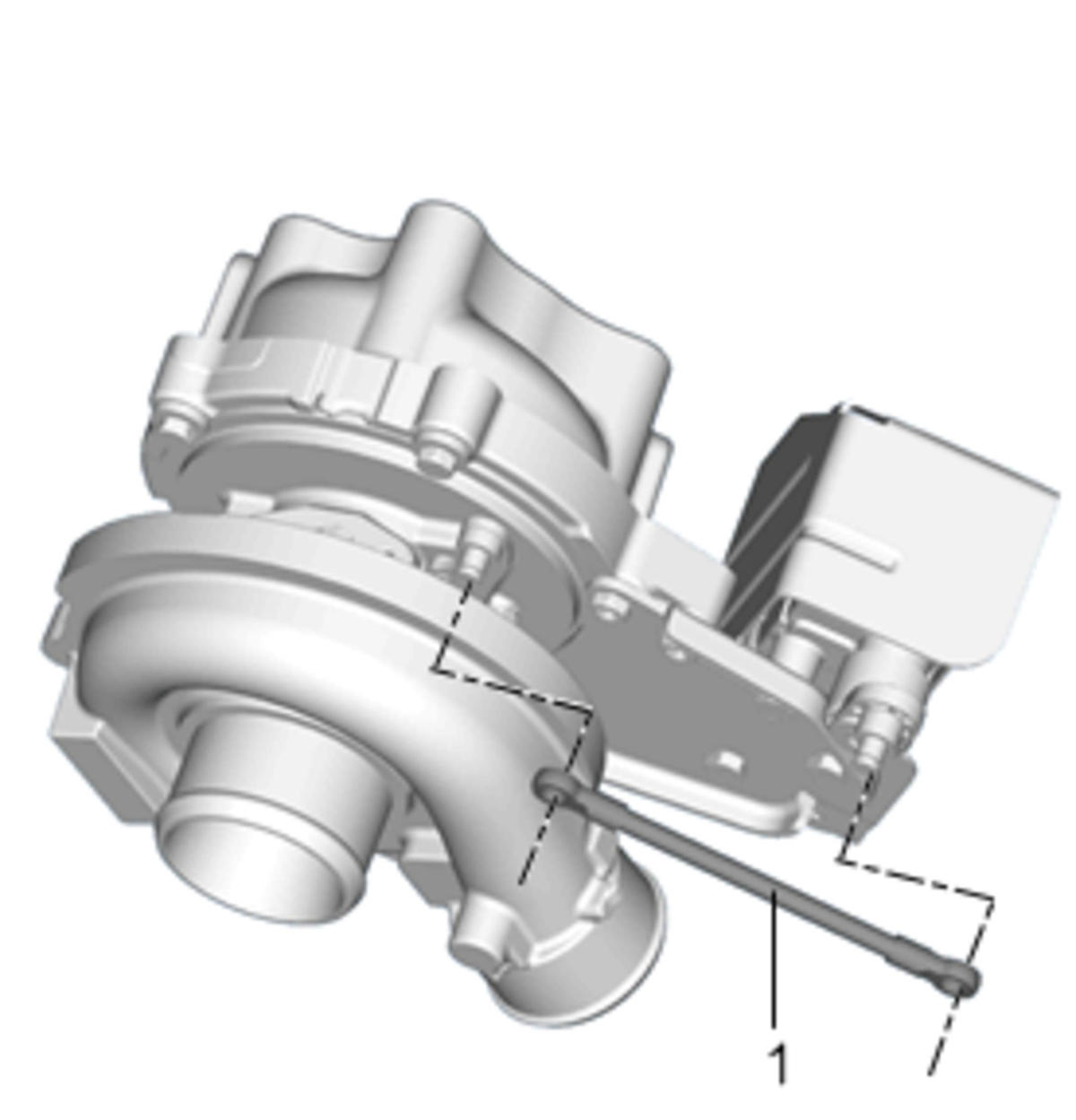

Install the actuator rod (1) onto the actuator and crank pin.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Do not deform, twist, or over clamp the clip.

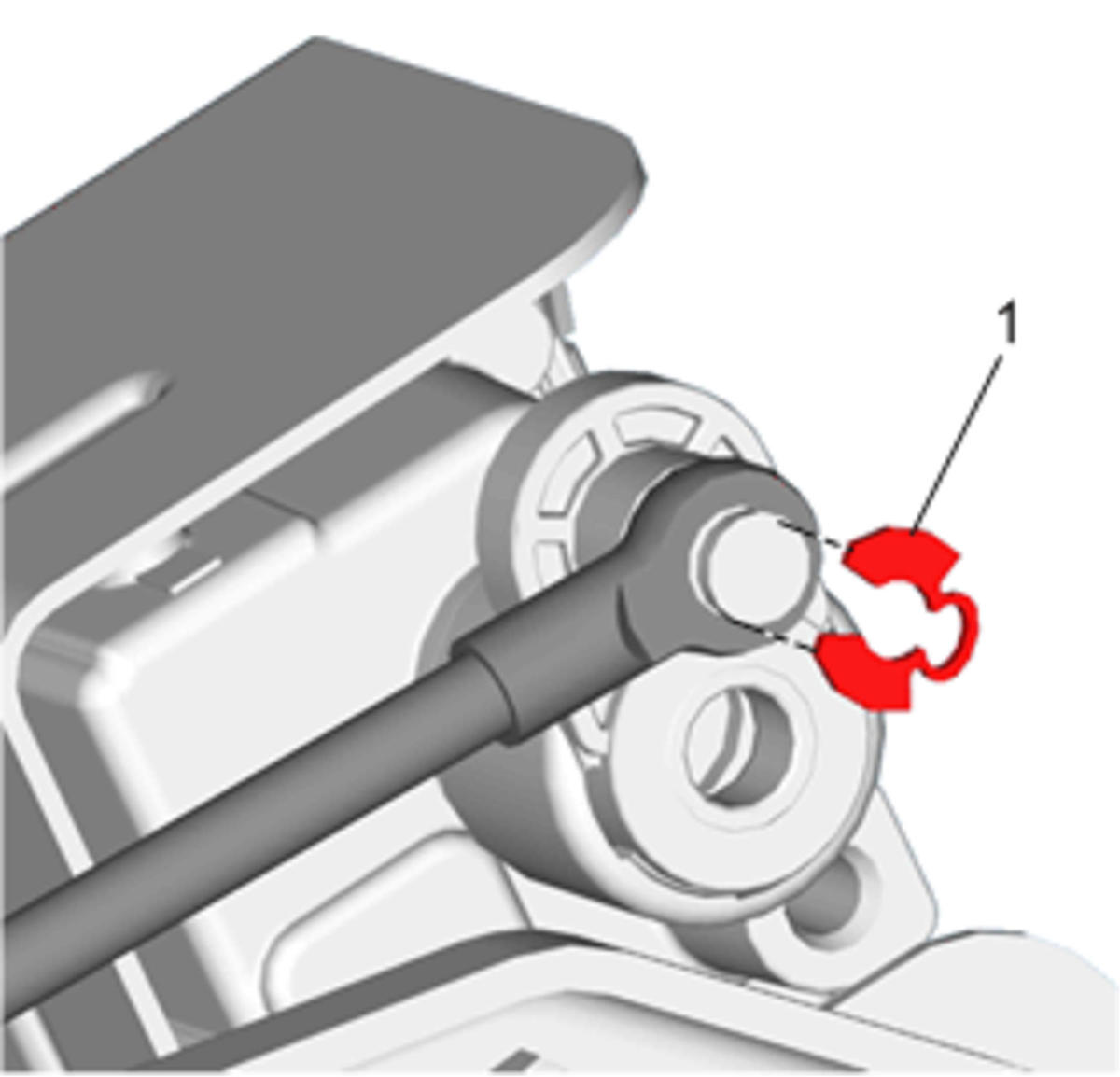

Manually introduce the clip (1) into the actuator pin groove. Use a suitable tool, such as pliers, to clamp the clip inside the groove.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Do not deform, twist, or over clamp the clip.

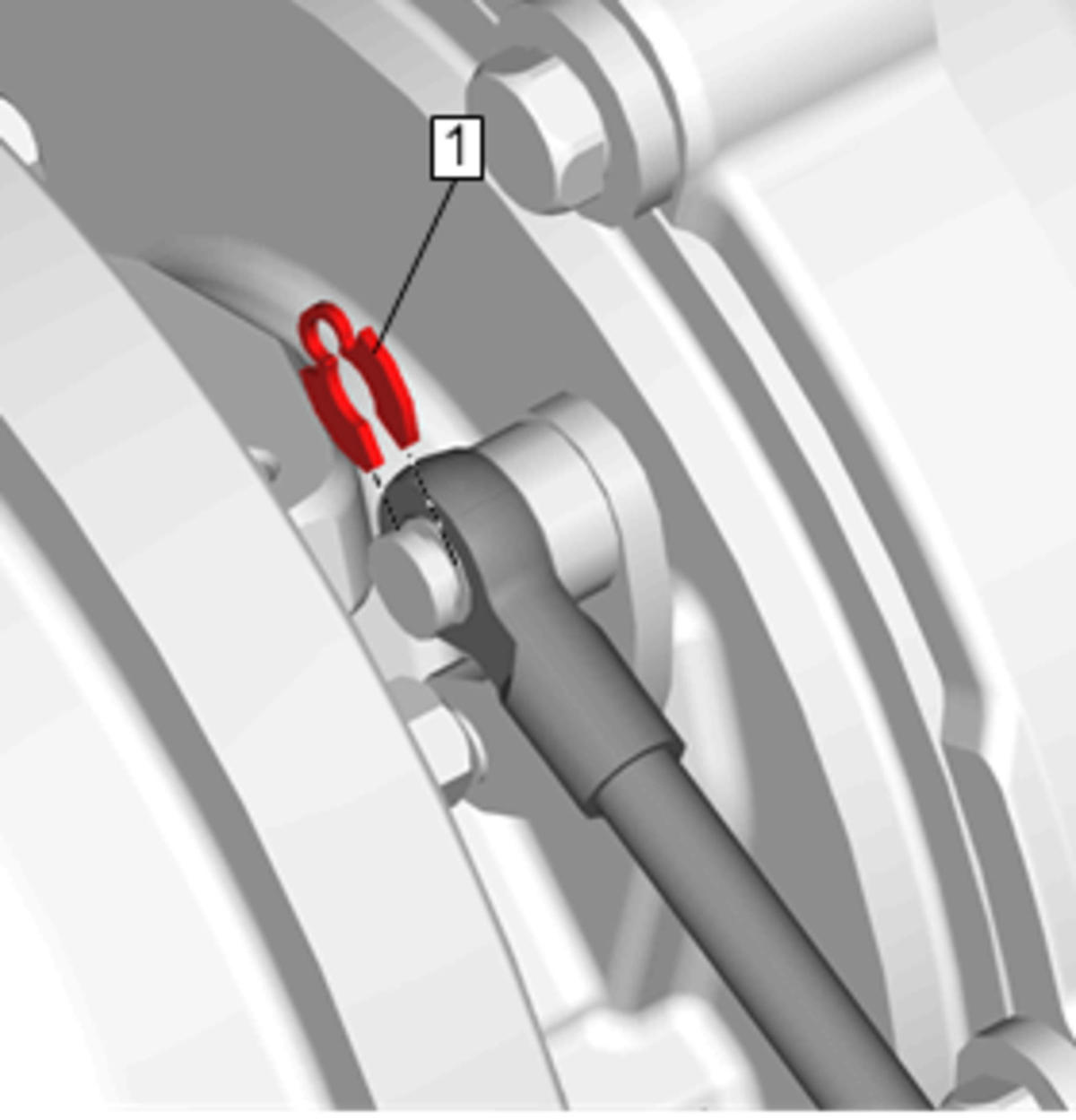

Manually introduce the clip (1) into the crank pin groove. Use a suitable tool, such as pliers, to clamp the clip inside the groove.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Do not use a tool when checking the rotation of the actuator rod clips.

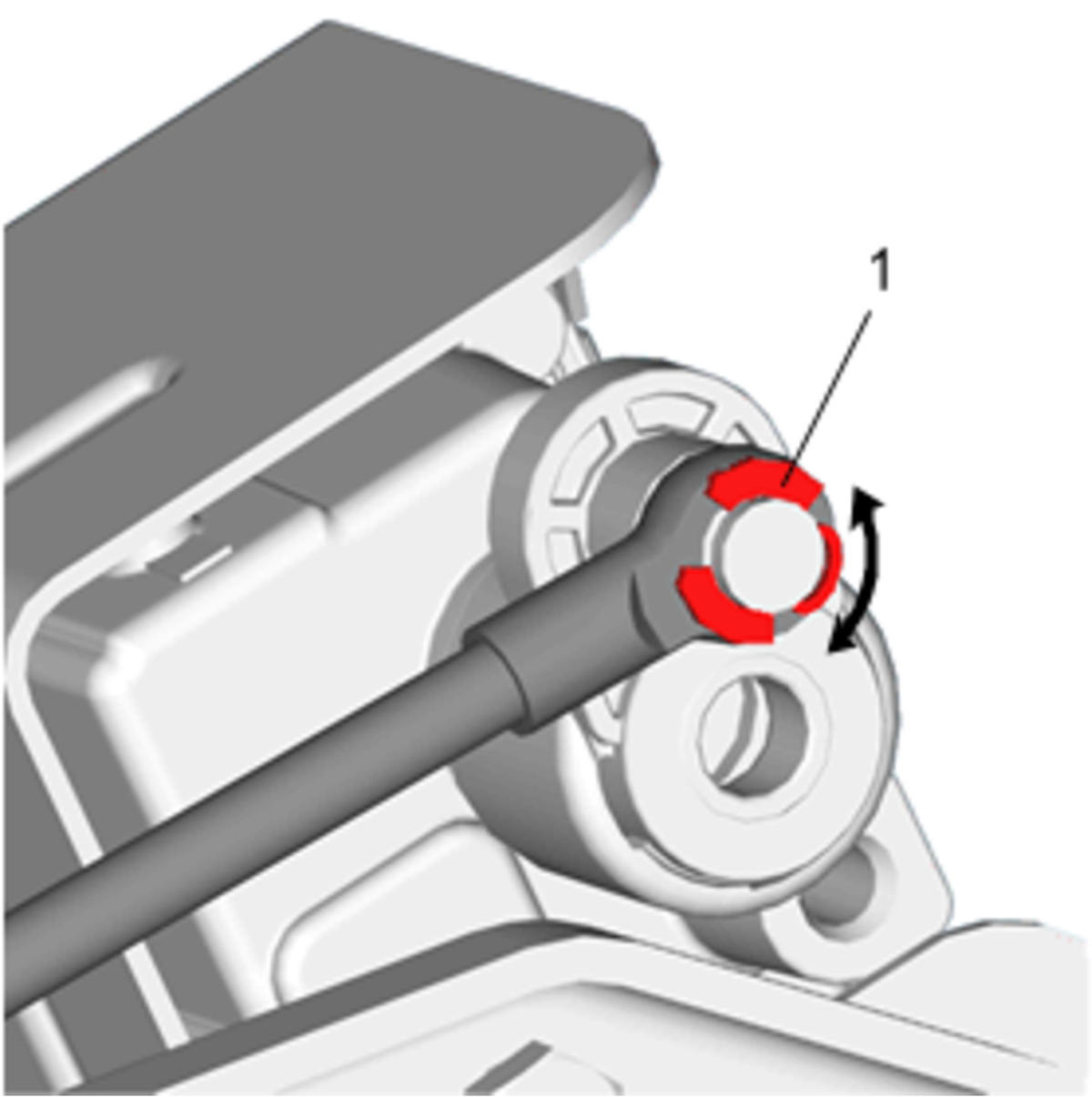

Manually rotate the actuator rod clips. If the clip is free in rotation, remove and replace with a new clip. If the clip continues to rotate freely, inspect the pin for visual signs of wear. Utilize good judgement and replace the clip or turbo as necessary.
