Camshaft Removal
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

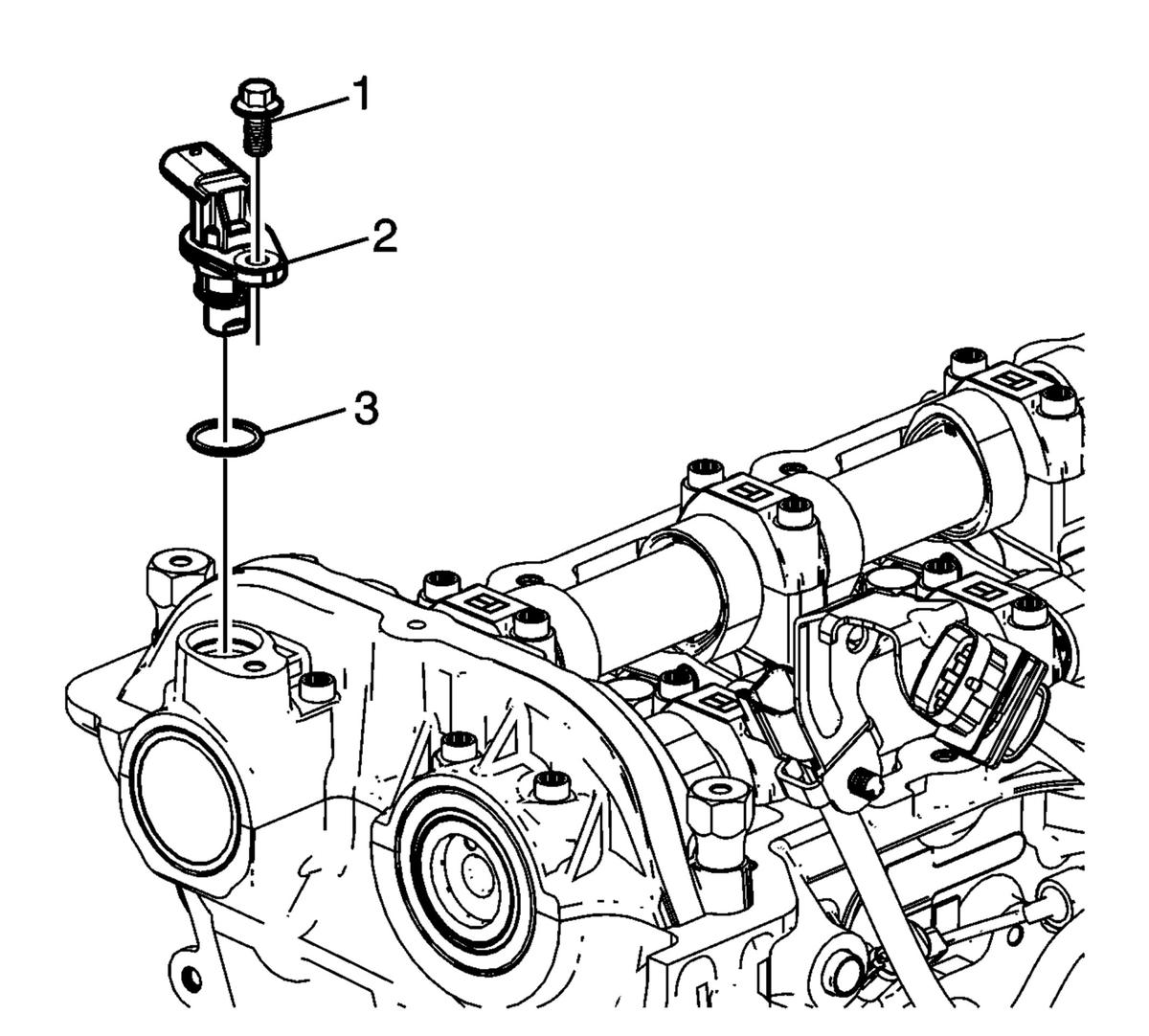

Remove the camshaft position sensor bolt (1) and sensor (2).
- Remove and discard the camshaft position sensor seal (3).
Remove the camshaft cap bolts in sequence.
- NOTE:
Mark the camshaft caps before removal to ensure installation in their original location.

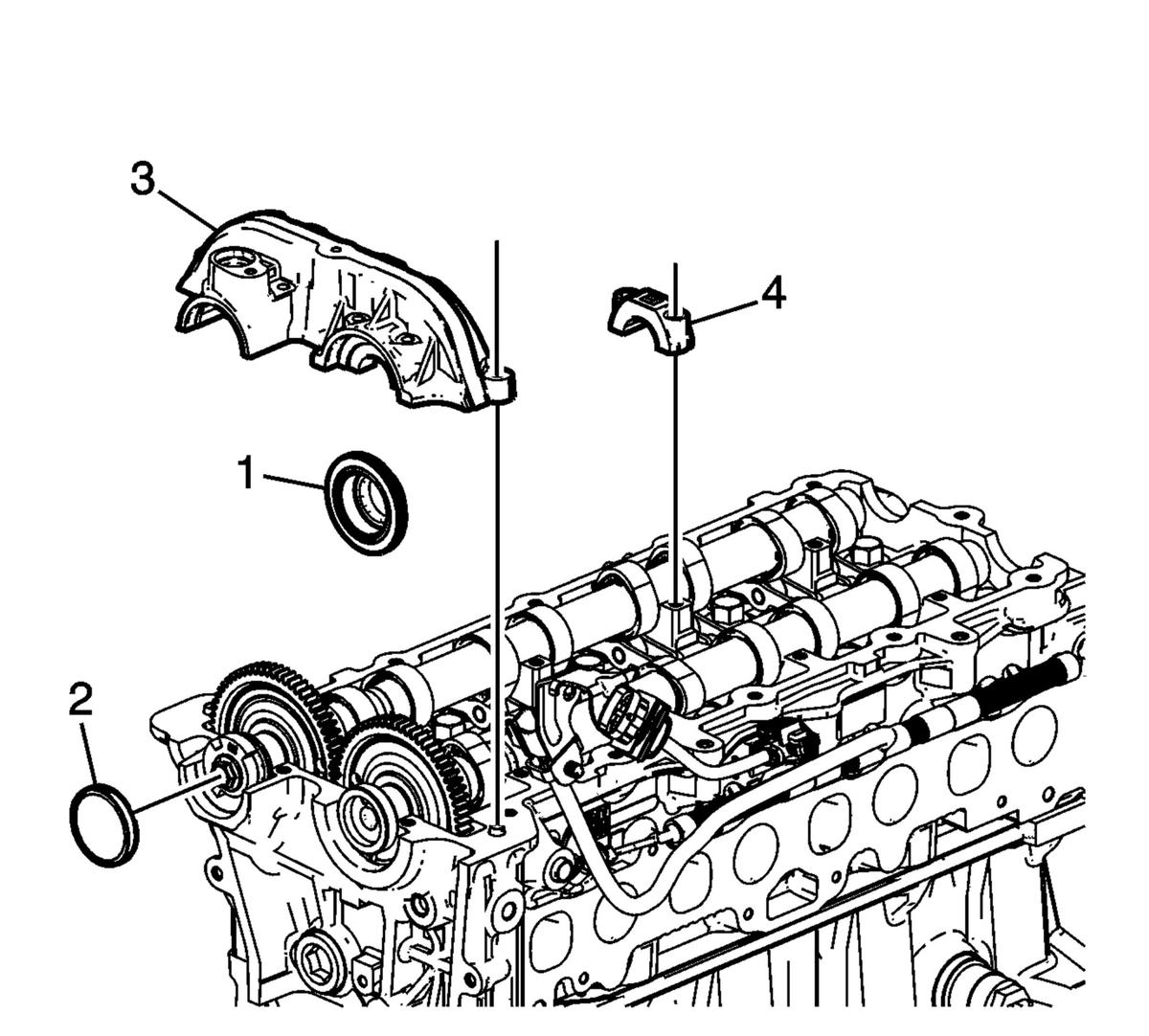

Remove the camshaft caps (3 - 4).
- Remove the camshaft exhaust cap (2) and camshaft intake seal (1).

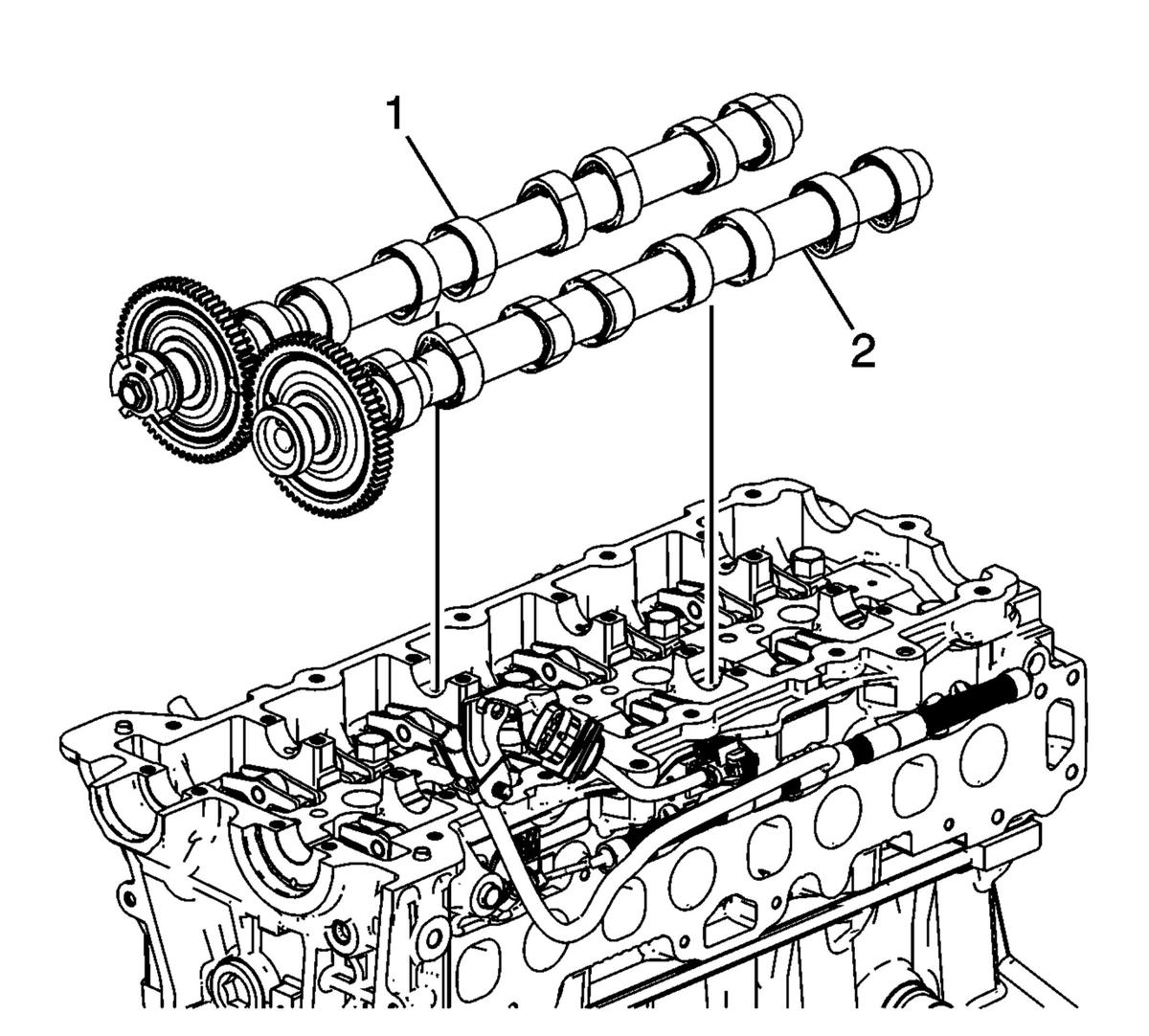

Remove the exhaust camshaft (1) and intake camshaft (2).

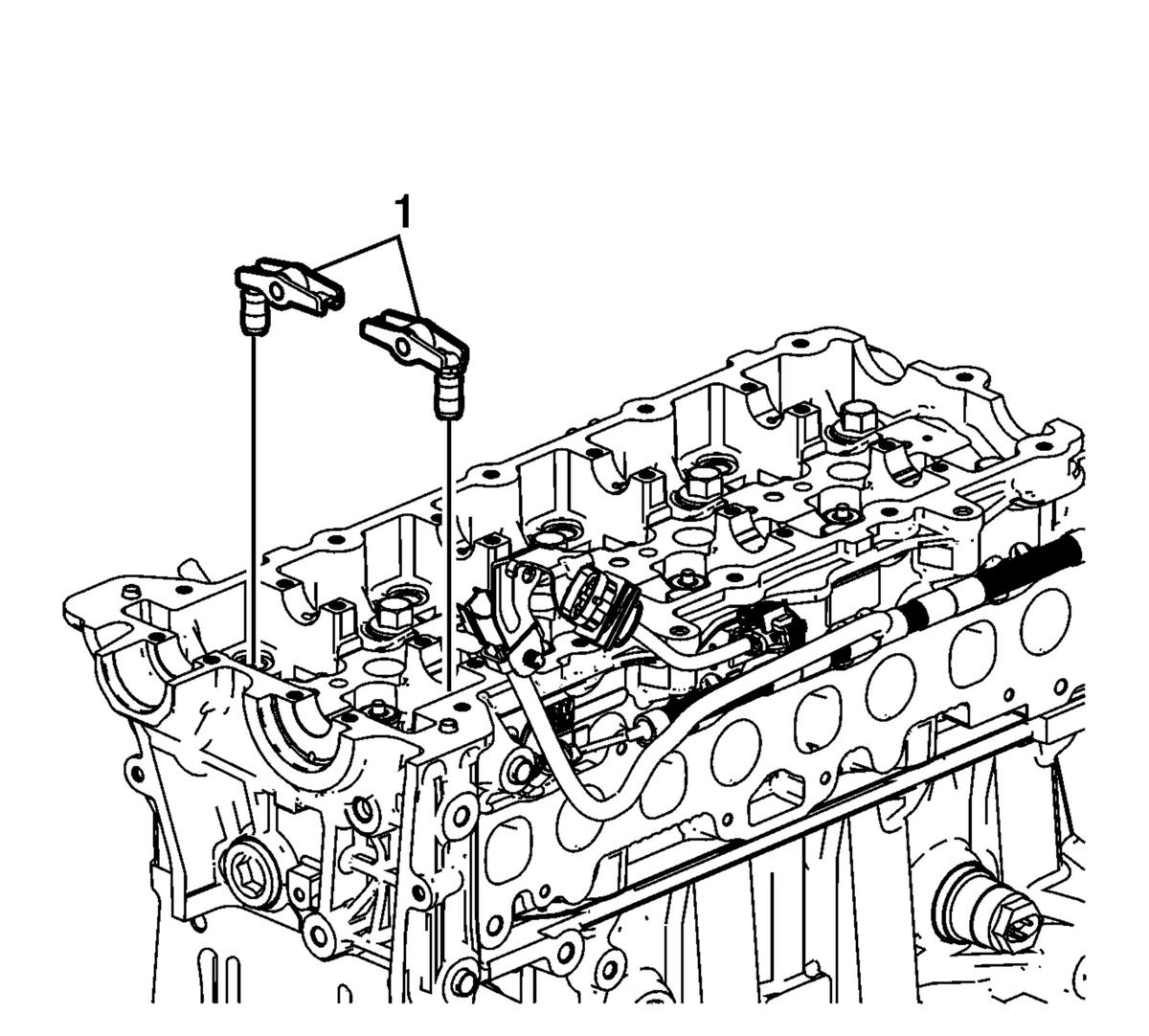

Remove the valve rocker arm and lifters (1) as an assembly.
