Balancer Shaft Cleaning and Inspection
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

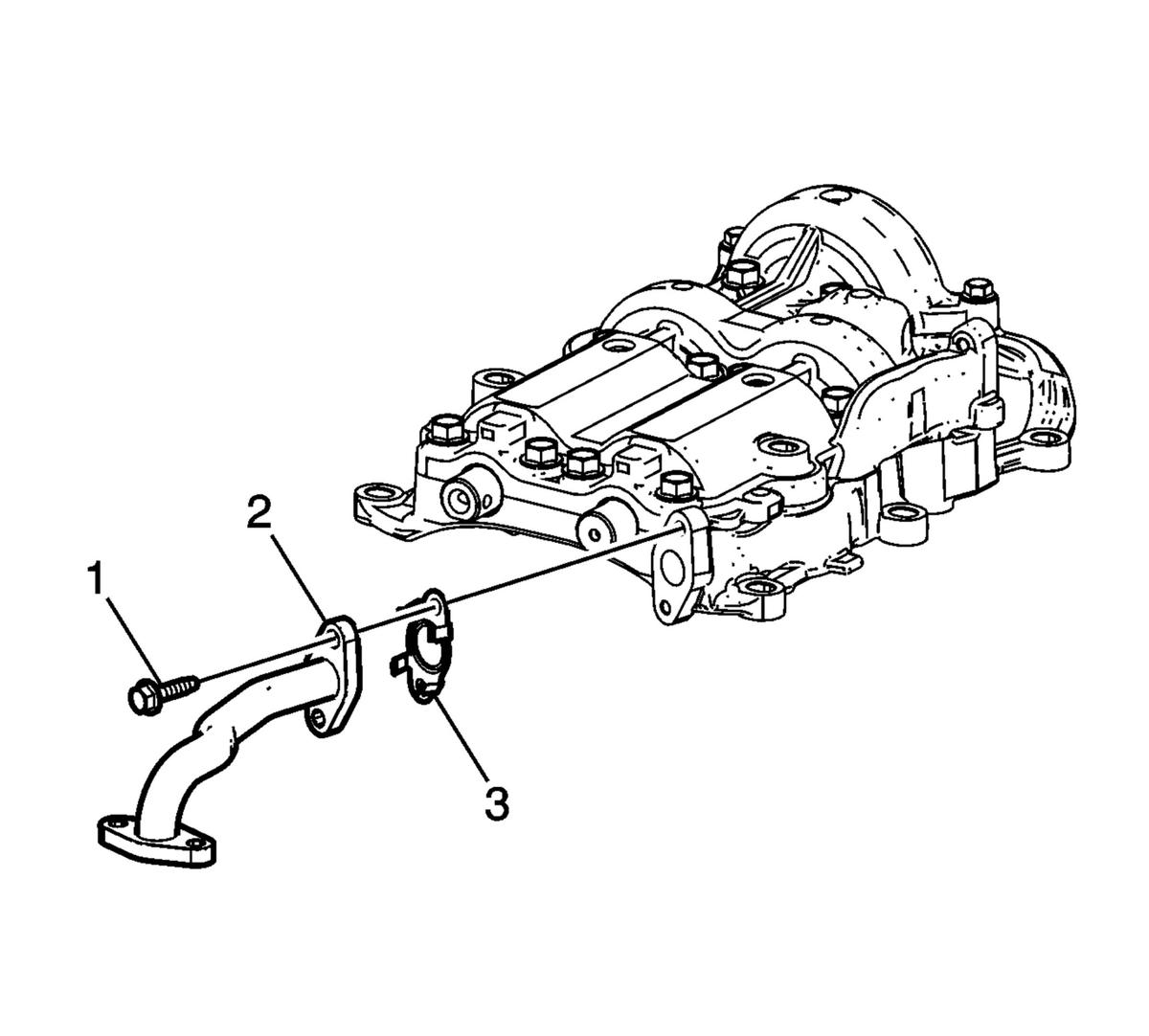

Remove the oil pump pipe bolts (1) and the pipe (2).
- Remove and Discard the gasket (3).

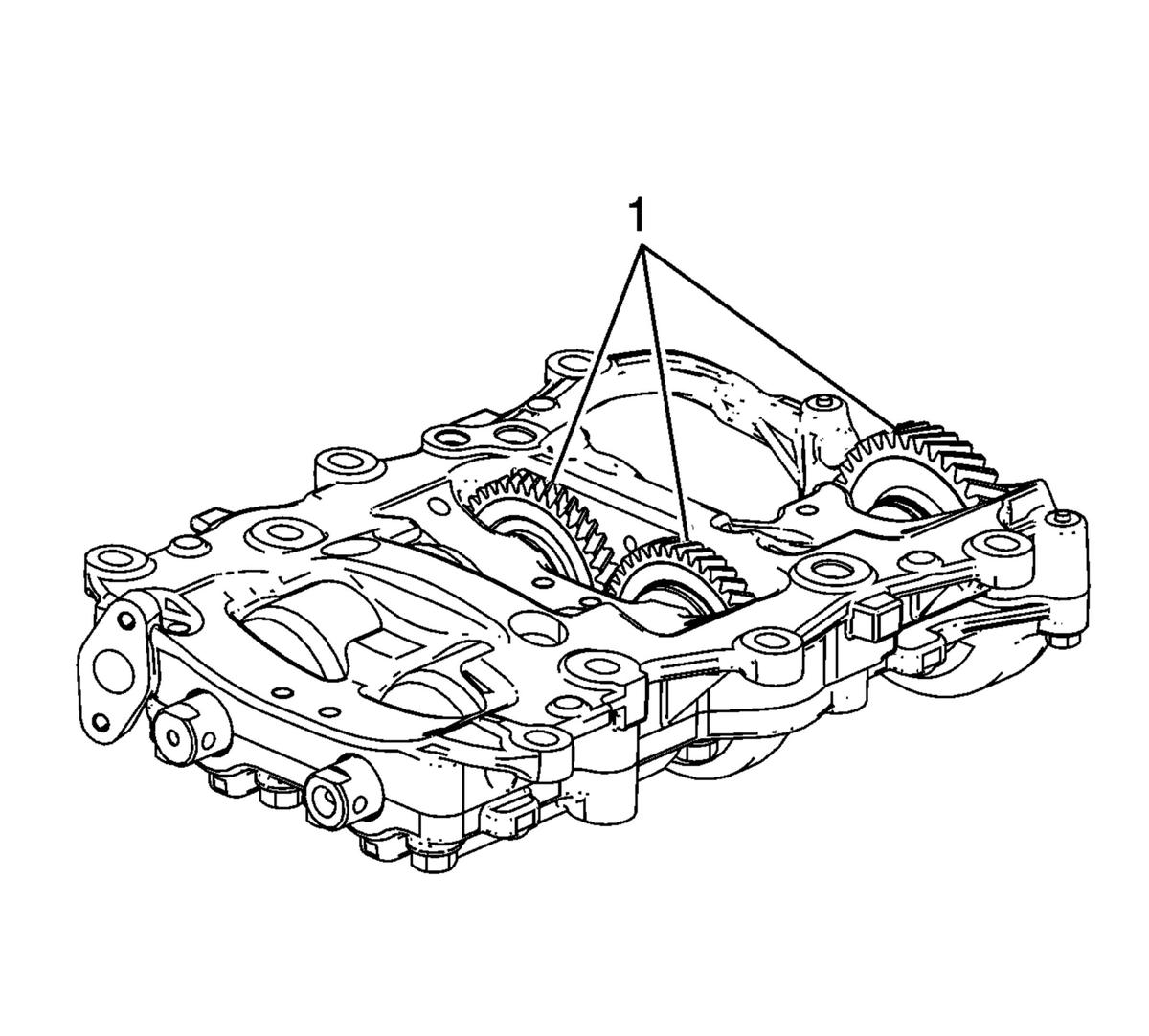

Inspect the balance shaft gears (1) for wear or damage. Replace the balance shaft assembly if any damage is found.
- Rotate the balance shaft. Replace the balance shaft assembly if any sticking, binding, or roughness is found.
