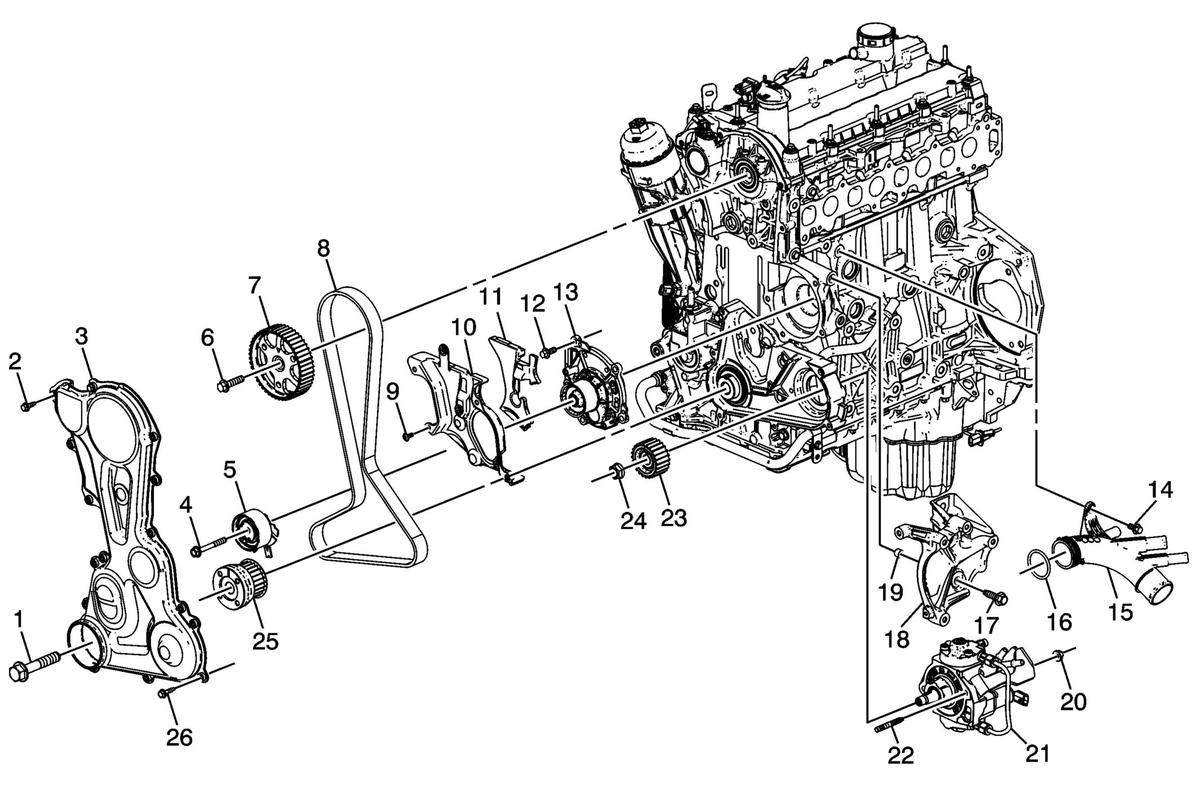

Timing Belt and Components
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Crankshaft Sprocket Bolt |
| 2 | Timing Belt Front Cover Bolt [9x] |
| 3 | Timing Belt Front Cover |
| 4 | Timing Belt Tensioner Bolt |
| 5 | Timing Belt Tensioner |
| 6 | Camshaft Gear Bolt |
| 7 | Camshaft Timing Pulley |
| 8 | Timing Belt |
| 9 | Timing Belt Rear Cover Bolt [3x] |
| 10 | Timing Belt Rear Cover |
| 11 | Timing Belt Rear Cover Gasket |
| 12 | Water Pump Bolt [5x] |
| 13 | Water Pump |
| 14 | Water Pump Inlet Pipe Bolt |
| 15 | Water Pump Inlet Pipe |
| 16 | Water Pump Inlet Pipe Seal |
| 17 | Air Conditioning Compressor Bracket Bolt |
| 18 | Air Conditioning Compressor Bracket |
| 19 | Air Conditioning Compressor Bracket Locating Pin [2x] |
| 20 | Fuel Pump Nut |
| 21 | Fuel Pump |
| 22 | Fuel Pump Stud |
| 23 | Fuel Injection Pump Drive Pulley |
| 24 | Fuel Injection Pump Driven Sprocket Nut |
| 25 | Crankshaft Sprocket |
| 26 | Timing Belt Front Cover Bolt [6x] |
