Intake Manifold and Fuel Delivery Components
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

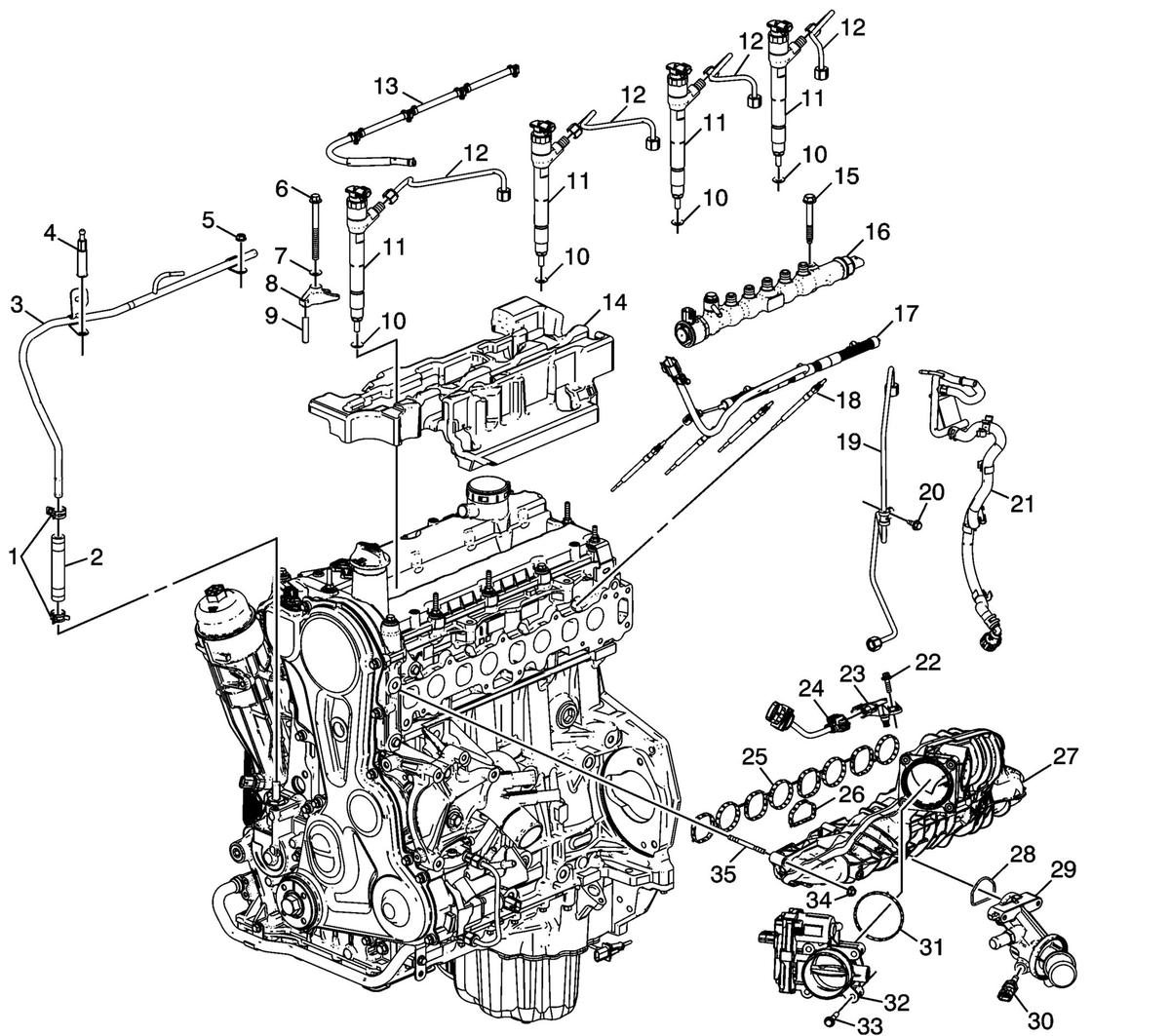

| Callout | Component Name |
|---|---|
| 1 | Vacuum Pump Hose Clip |
| 2 | Vacuum Pump Hose |
| 3 | Vacuum Pump Pipe |
| 4 | S. Ball Head Nut |
| 5 | Vacuum Pipe Nut |
| 6 | Fuel Injector Bracket Bolt |
| 7 | Fuel Injector Washer |
| 8 | Fuel Injector Hold Down Clamp |
| 9 | Fuel Injector Locating Pin |
| 10 | Fuel Injector Washer |
| 11 | Fuel Injector |
| 12 | Fuel Injection Fuel Feed Pipe |
| 13 | Fuel Return Pipe |
| 14 | Fuel Injector Deadener |
| 15 | Fuel Injection Fuel Feed Pipe Bracket Bolt |
| 16 | Direct Fuel Injection Fuel Rail |
| 17 | Diesel Glow Plug Wiring Harness |
| 18 | Glow Plug |
| 19 | Fuel Feed Pipe |
| 20 | Fuel Feed Pipe Bolt |
| 21 | Diesel Fuel Separator |
| 22 | Manifold Absolute Pressure Sensor Bolt |
| 23 | Manifold Absolute Pressure Sensor |
| 24 | Manifold Absolute Pressure Sensor Jumper Wire |
| 25 | Intake Manifold Gasket |
| 26 | Intake Manifold Gasket |
| 27 | Intake Manifold |
| 28 | Engine Coolant Thermostat Gasket |
| 29 | Engine Coolant Thermostat |
| 30 | Engine Coolant Temperature Sensor |
| 31 | Throttle Body Gasket |
| 32 | Throttle Body |
| 33 | Throttle Body Bolt |
| 34 | Intake Manifold Nut |
