Exhaust Manifold and Turbocharger Components
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

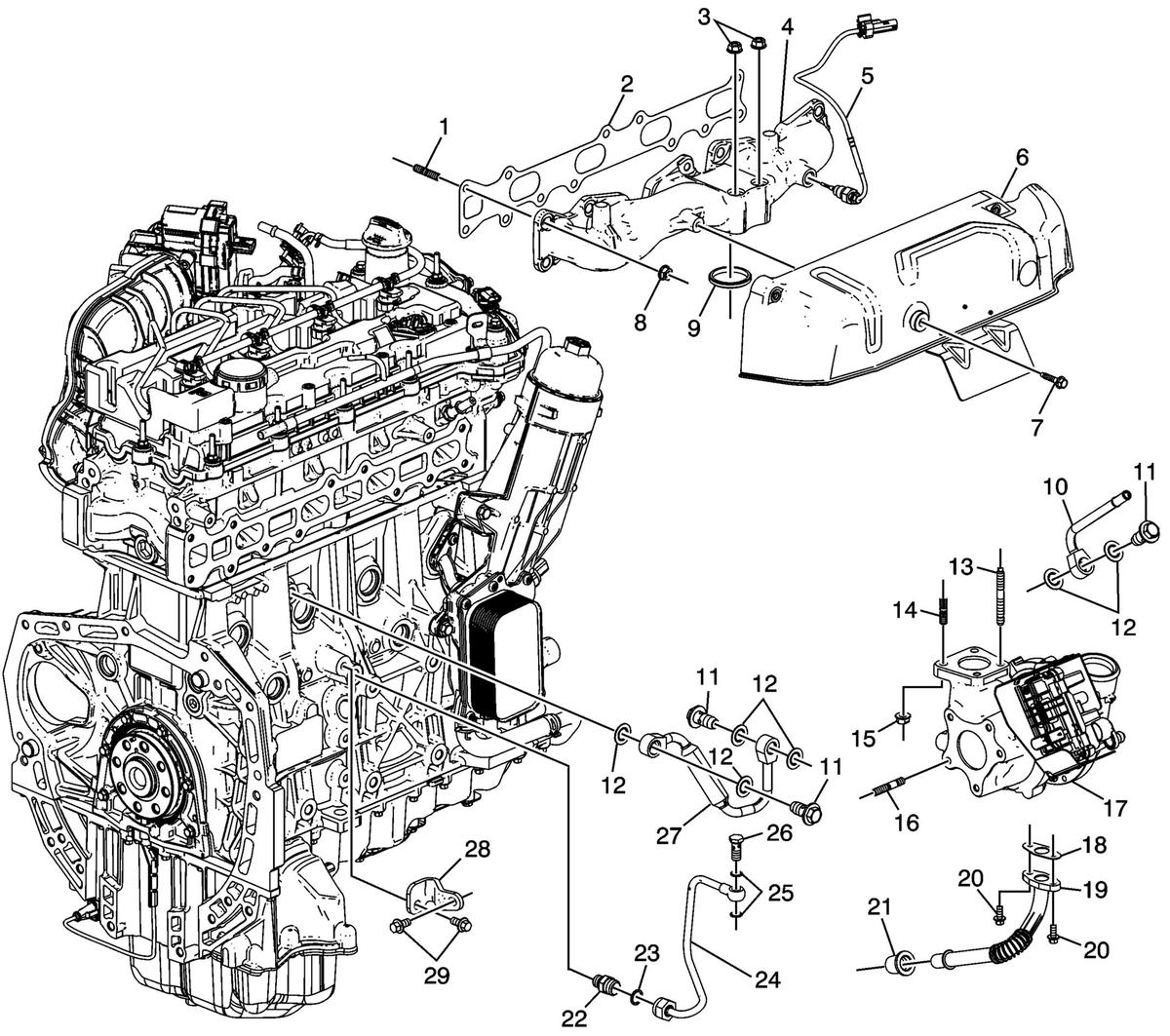

| Callout | Component Name |
|---|---|
| 1 | Exhaust Manifold Stud [12x] |
| 2 | Exhaust Manifold Gasket |
| 3 | Turbocharger Nut [2x] |
| 4 | Exhaust Manifold |
| 5 | Exhaust Gas Recirculation Cooler Temperature Sensor |
| 6 | Exhaust Manifold Heat Shield |
| 7 | Exhaust Manifold Heat Shield Bolt [4x] |
| 8 | Exhaust Manifold Nut [12x] |
| 9 | Turbocharger Gasket |
| 10 | Turbocharger Coolant Return Pipe |
| 11 | Turbocharger Coolant Feed and Return Pipe Bolt |
| 12 | Turbocharger Coolant Feed and Return Pipe Washer |
| 13 | Turbocharger Stud [2x] |
| 14 | Turbocharger Stud [2x] |
| 15 | Turbocharger Nut [2x] |
| 16 | Turbocharger Exhaust Pipe Stud [4x] |
| 17 | Turbocharger |
| 18 | Turbocharger Oil Return Pipe Gasket |
| 19 | Turbocharger Oil Return Pipe |
| 20 | Turbocharger Oil Return Pipe Bolt [2x] |
| 21 | Turbocharger Tube Seal |
| 22 | Turbocharger Oil Feed Pipe Fitting Adapter |
| 23 | Turbocharger Oil Feed Pipe Washer |
| 24 | Turbocharger Oil Feed Pipe |
| 25 | Turbocharger Oil Feed Pipe Gasket |
| 26 | Turbocharger Oil Feed Pipe Bolt |
| 27 | Turbocharger Coolant Feed Pipe |
| 28 | Turbocharger Brace |
