Exhaust Gas Recirculation (EGR) Components
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

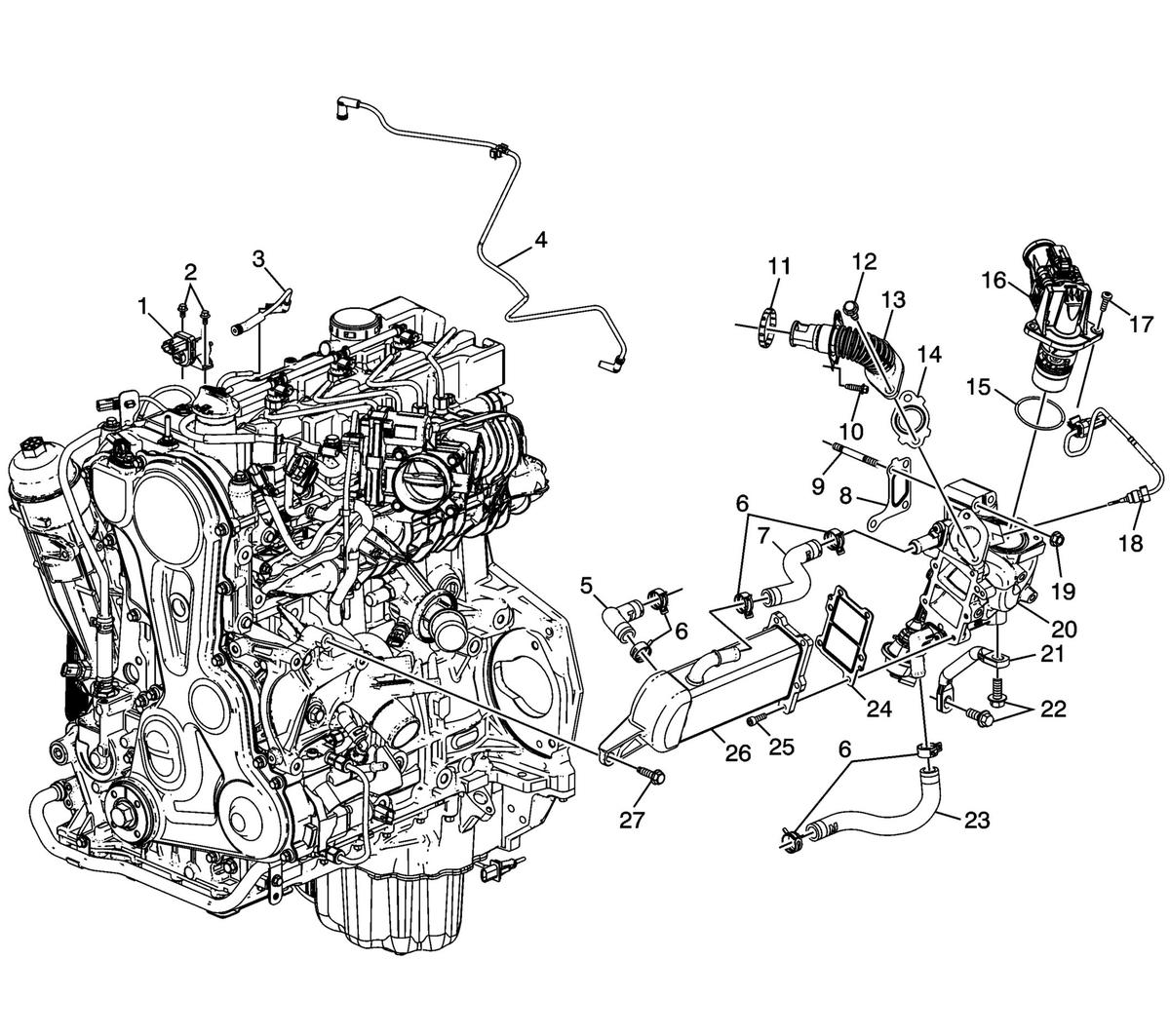

| Callout | Component Name |
|---|---|
| 1 | Intake Manifold Tuning Vacuum Control Solenoid Valve |
| 2 | Intake Manifold Tuning Vacuum Control Solenoid Valve Bolt [2x] |
| 3 | Exhaust Gas Recirculation Valve Vacuum Pipe |
| 4 | Exhaust Gas Recirculation Valve Vacuum Pipe |
| 5 | Exhaust Gas Recirculation Manifold Cooling Feed Hose |
| 6 | Thermostat Bypass Hose Clamp |
| 7 | Exhaust Gas Recirculation Manifold Cooling Feed Hose |
| 8 | Exhaust Gas Recirculation Manifold Gasket |
| 9 | Exhaust Gas Recirculation Valve Adapter Stud [4x] |
| 10 | Exhaust Gas Recirculation Pipe Bolt [2x] |
| 11 | Exhaust Gas Recirculation Pipe Gasket |
| 12 | Exhaust Gas Recirculation Pipe Bolt [2x] |
| 13 | Exhaust Gas Recirculation Pipe |
| 14 | Exhaust Gas Recirculation Pipe Gasket |
| 15 | Exhaust Gas Recirculation Valve Seal |
| 16 | Exhaust Gas Recirculation Valve |
| 17 | Exhaust Gas Recirculation Valve Bolt |
| 18 | Exhaust Gas Recirculation Valve Temperature Sensor |
| 19 | Exhaust Gas Recirculation Valve Adapter Nut |
| 20 | Exhaust Gas Recirculation Valve Machined Housing |
| 21 | Exhaust Gas Recirculation Manifold Brace |
| 22 | Exhaust Gas Recirculation Manifold Brace Bolt [2x] |
| 23 | Exhaust Gas Recirculation Manifold Cooling Return Hose |
| 24 | Exhaust Gas Recirculation Cooler Gasket |
| 25 | Exhaust Gas Recirculation Cooler Bolt [6x] |
| 26 | Exhaust Gas Recirculation Cooler |
| 27 | Exhaust Gas Recirculation Cooler Bolt |
