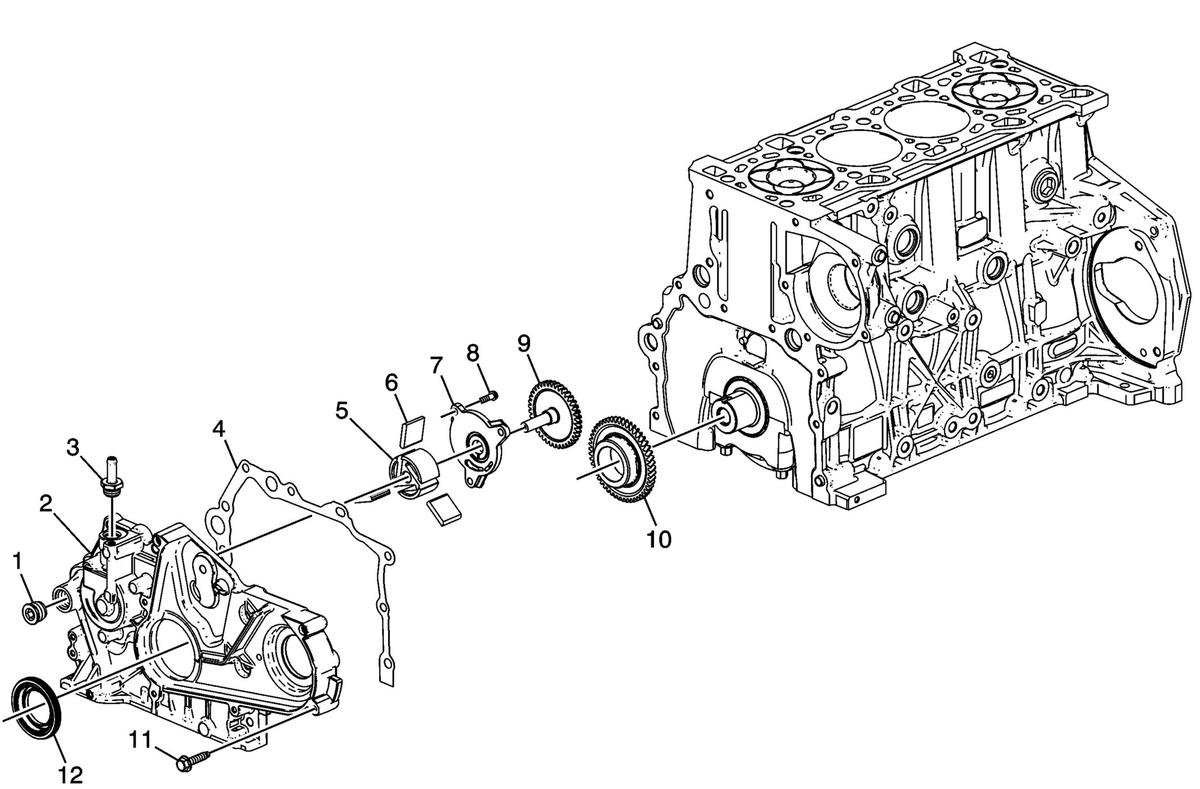

Engine Front Cover and Components
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Engine Front Cover Hole Plug |
| 2 | Engine Front Cover |
| 3 | Vacuum Regulator Valve |
| 4 | Engine Front Cover Gasket |
| 5 | Vacuum Pump Rotor |
| 6 | Vacuum Pump Vane [3x] |
| 7 | Vacuum Pump Housing Cover |
| 8 | Oil Pump Cover Bolt [3x] |
| 9 | Vacuum Pump Rotor |
| 10 | Oil Pump Drive Gear |
| 11 | Engine Front Cover Bolt [8x] |
| 12 | Crankshaft Front Oil Seal [3x] |
