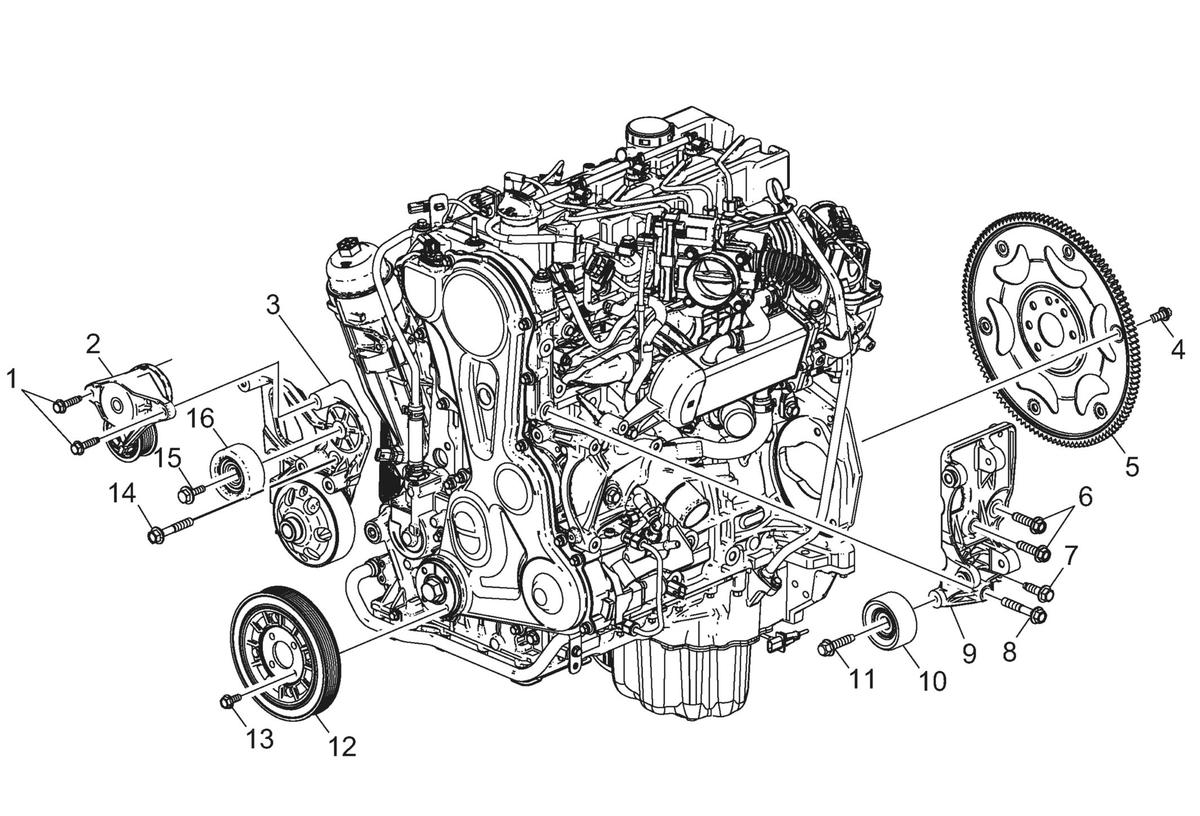

Engine Accessory Components
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Drive Belt Tensioner Bolt [2x] |
| 2 | Drive Belt Tensioner |
| 3 | Engine Coolant Fan Bracket |
| 4 | Automatic Transmission Flex Plate Bolt [8x] |
| 5 | Automatic Transmission Flex Plate |
| 6 | Generator Bracket Bolt [2x] |
| 7 | Generator Bracket Bolt |
| 8 | Generator Bracket Bolt |
| 9 | Generator Bracket |
| 10 | Drive Belt Idler Pulley |
| 11 | Drive Belt Idler Pulley Bolt |
| 12 | Crankshaft Balancer |
| 13 | Crankshaft Balancer Bolt |
| 14 | Engine Coolant Fan Bracket Bolt |
| 15 | Drive Belt Idler Pulley Bolt |
| 16 | Drive Belt Idler Pulley |
