Cylinder Head and Components
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

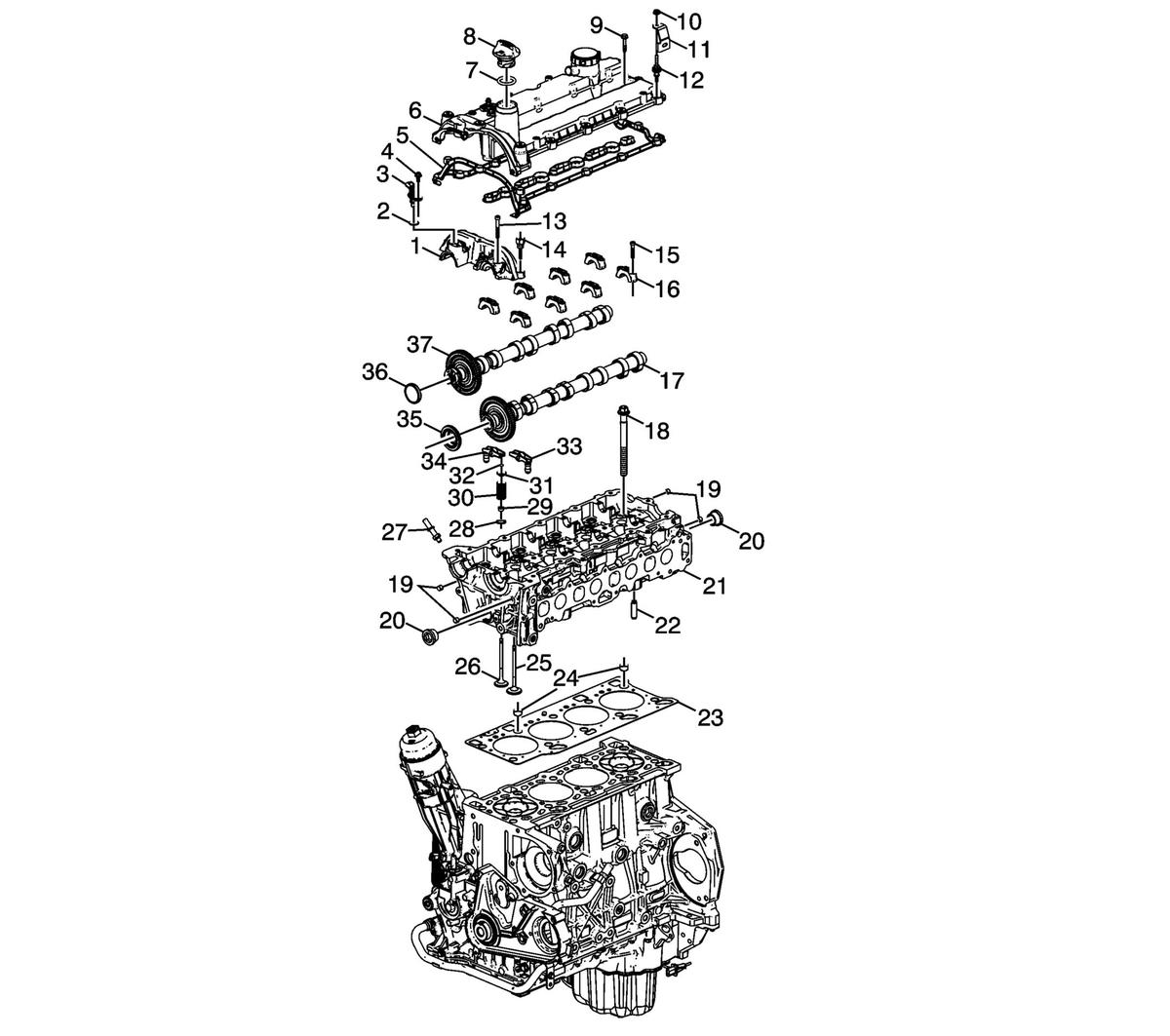

| Callout | Component Name |
|---|---|
| 1 | Camshaft Bearing Front Cap |
| 2 | Camshaft Position Sensor Seal |
| 3 | Camshaft Position Sensor |
| 4 | Camshaft Position Sensor Bolt |
| 5 | Valve Rocker Arm Cover Gasket |
| 6 | Valve Rocker Arm Cover |
| 7 | Oil Filler Cap Seal |
| 8 | Oil Filler Cap |
| 9 | Valve Rocker Arm Cover Bolt |
| 10 | Exhaust Temperature Sensor Connector Bracket Nut |
| 11 | Exhaust Temperature Sensor Bracket |
| 12 | Valve Rocker Arm Cover Stud |
| 13 | Camshaft Bearing Cap Bolt |
| 14 | Camshaft Bearing Front Cap Bolt |
| 15 | Camshaft Bearing Cap Bolt |
| 16 | Camshaft Bearing Cap |
| 17 | Intake Camshaft |
| 18 | Cylinder Head Bolt [10x] |
| 19 | Cylinder Head Core Hole Plug [4x] |
| 20 | Cylinder Head Core Hole Plug [2x] |
| 21 | Cylinder Head |
| 22 | Valve Guide |
| 23 | Cylinder Head Gasket |
| 24 | Cylinder Head Locating Pin |
| 25 | Intake Valve [8x] |
| 26 | Exhaust Valve [8x] |
| 27 | Engine Water Outlet Adapter |
| 28 | Valve Spring Seat [16x] |
| 29 | Valve Stem Oil Seal [16x] |
| 30 | Valve Spring [16x] |
| 31 | Valve Spring Retainer [16x] |
| 32 | Valve Stem Key [16x] |
| 33 | Valve Rocker Arm - Intake |
| 34 | Valve Rocker Arm - Exhaust |
| 35 | Intake Camshaft Seal |
| 36 | Camshaft Plug |
| 37 | Exhaust Camshaft |
