Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

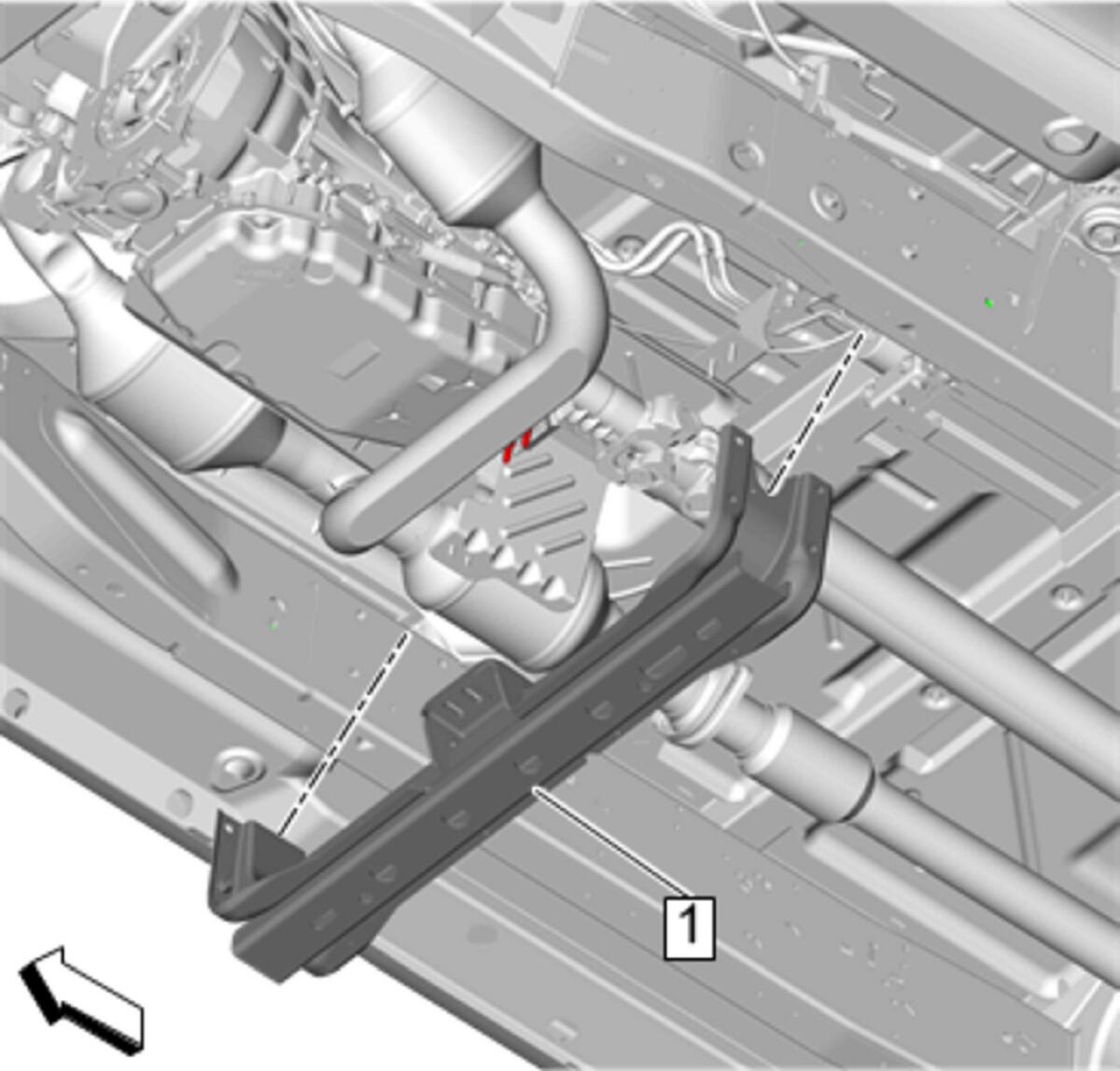

Transmission Support Crossmember(1) - Install
- CAUTION:
Refer to Fastener Caution .

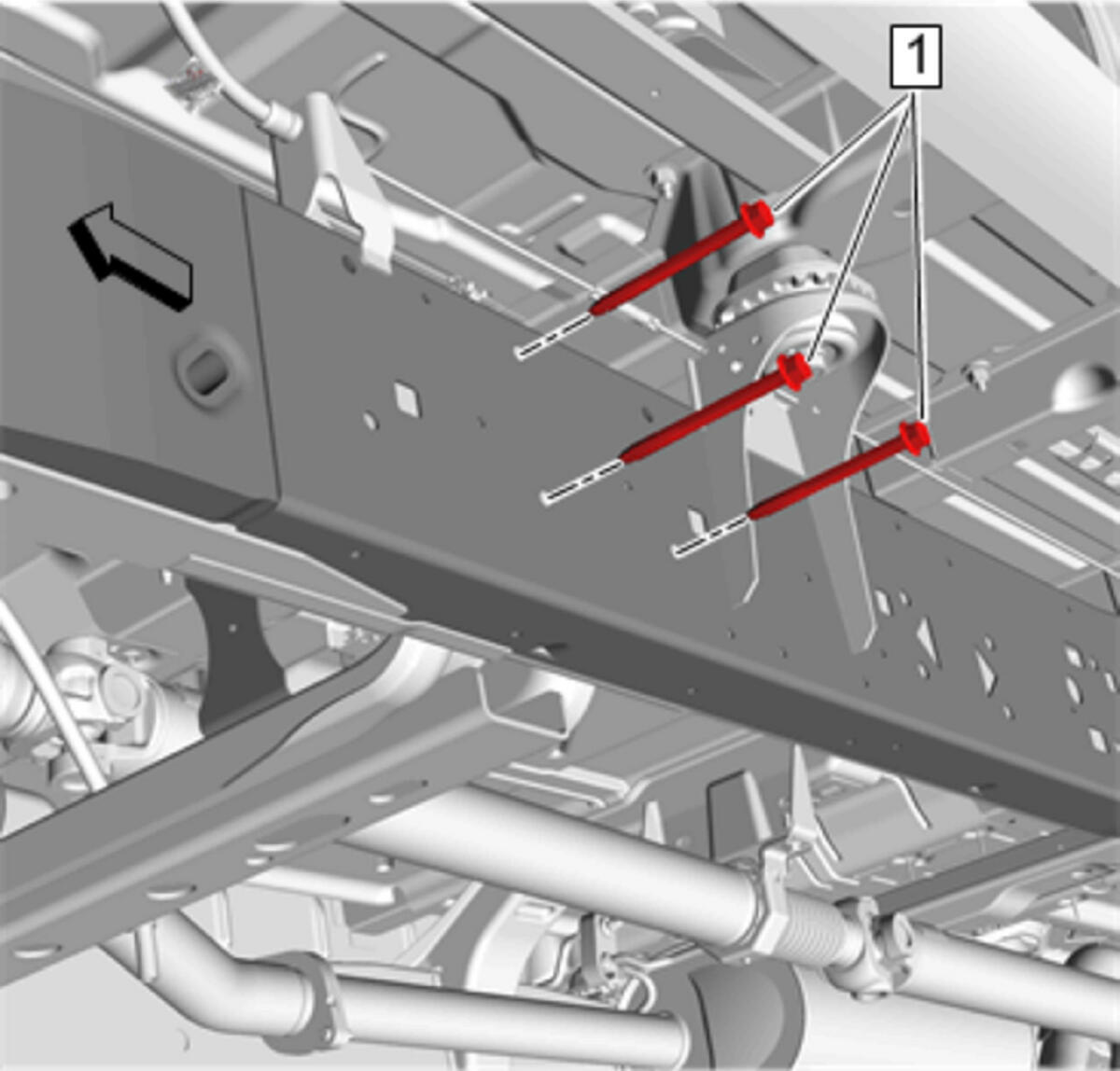

Transmission Support Crossmember Bolt(1) - Install and tighten[3x]50 N.m (37 lb ft)

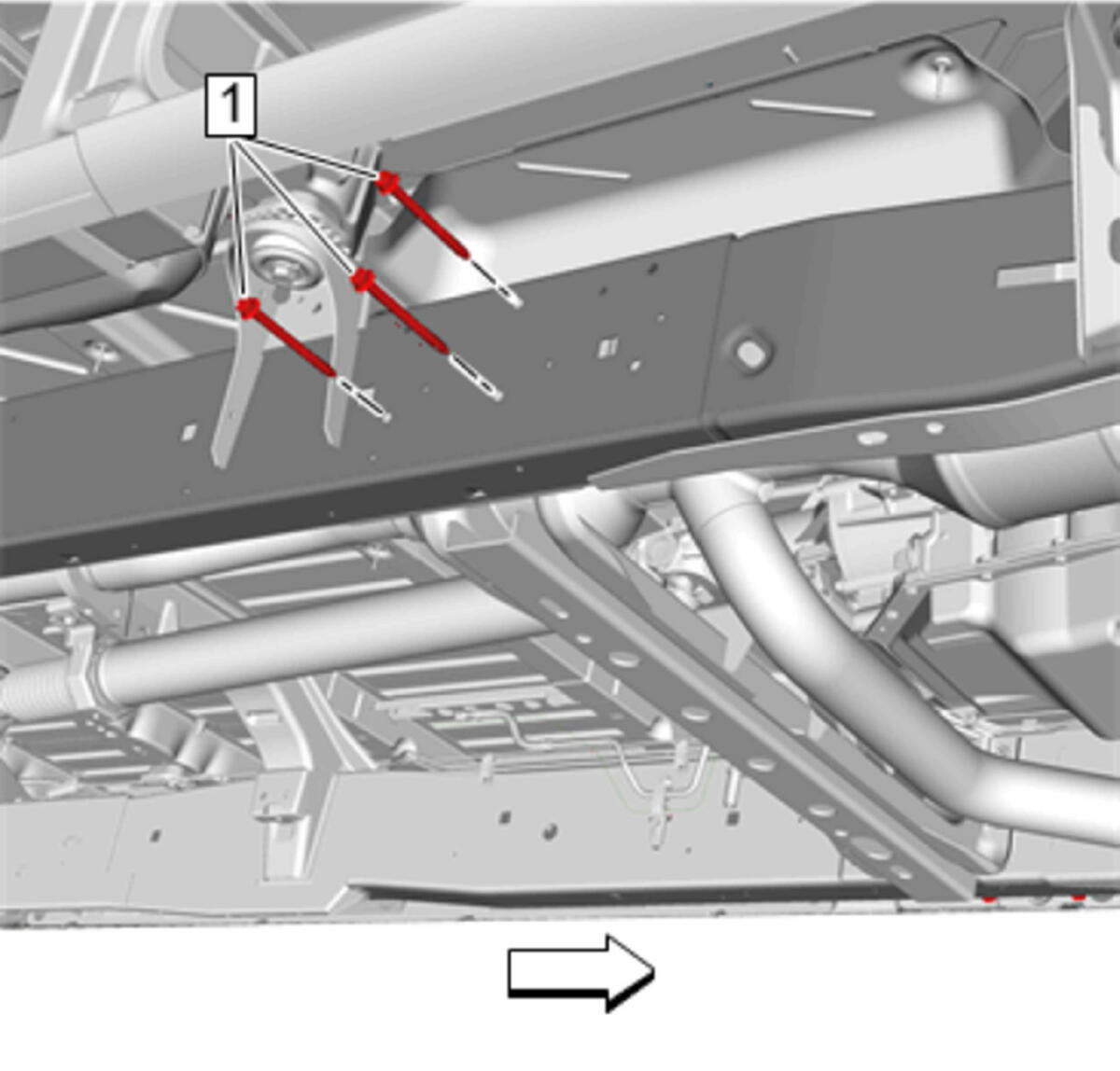

Transmission Support Crossmember Bolt(1) - Install and tighten[3x]50 N.m (37 lb ft)

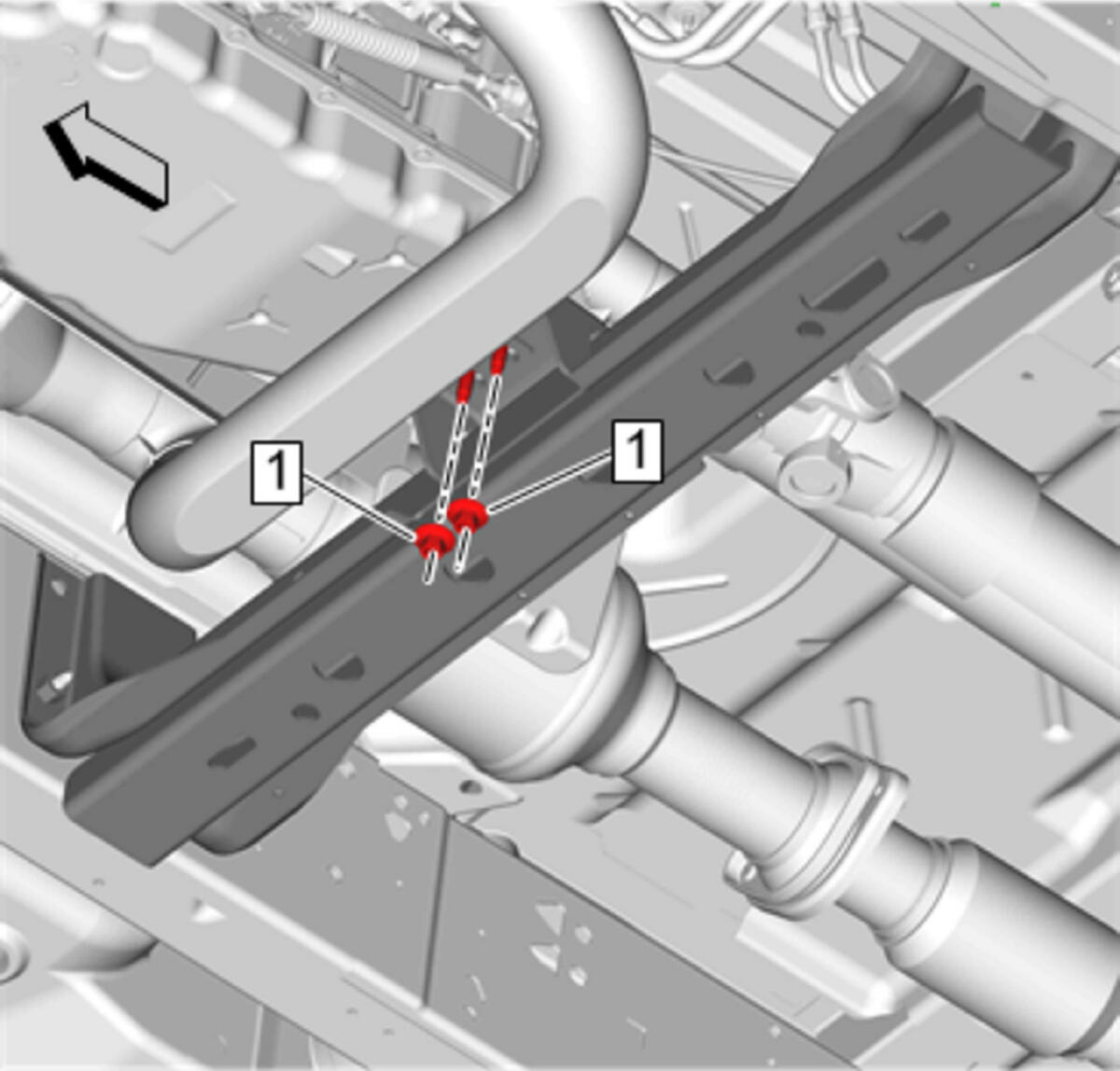

Transmission Mount Nut(1) - Install and tighten[2x]55 N.m (41 lb ft)

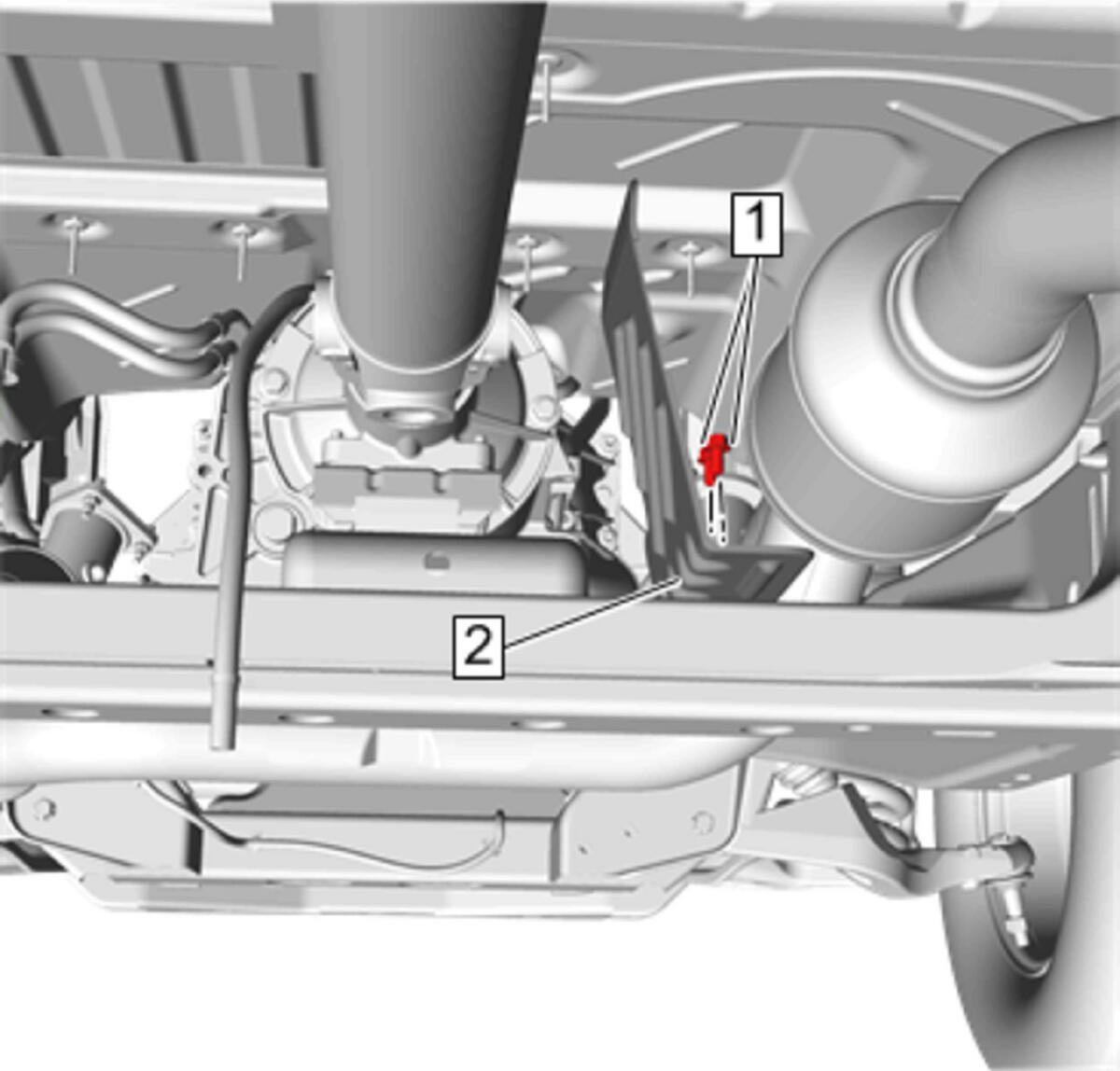

Exhaust Heat Shield(2) - Install
- Exhaust Heat Shield Bolt(1) - Install and tighten[2x]10 N.m (89 lb in)

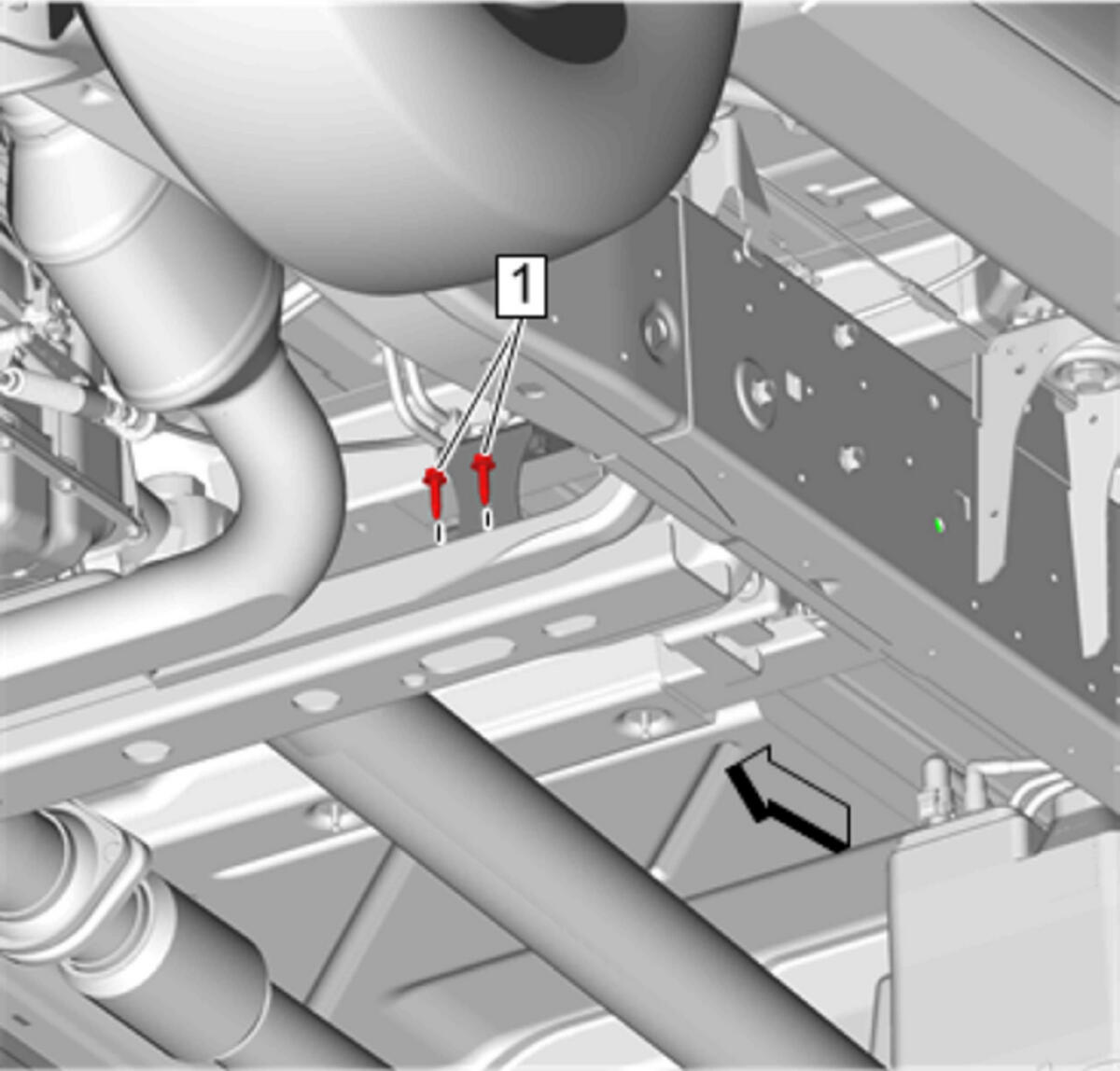

Fuel Filter Bracket Bolt(1) - Install and tighten[2x]25 N.m (18 lb ft)
- Lower the vehicle.
