Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

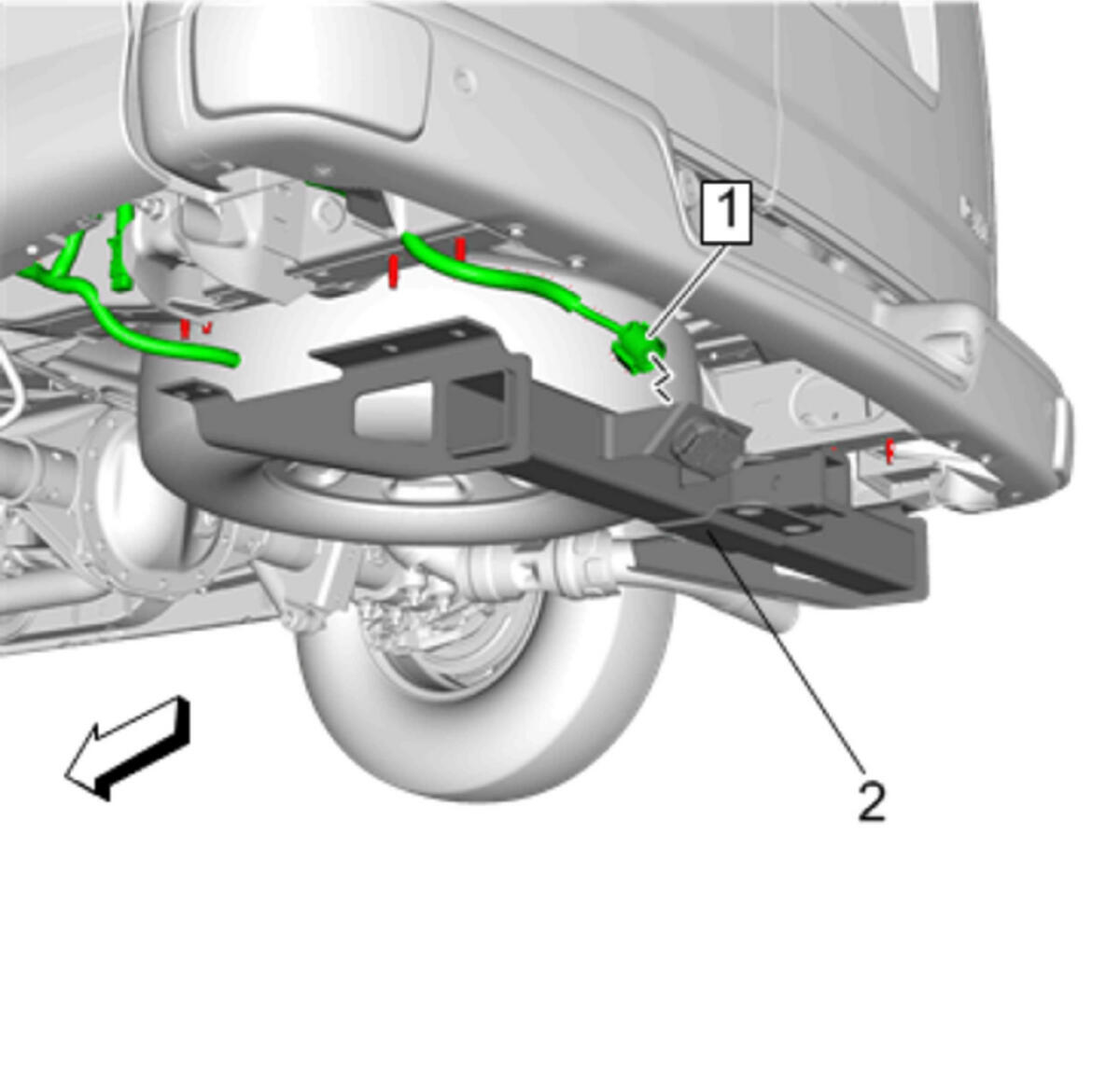

  1. GM4845655Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector(1) - Connect

  2. Trailer Hitch Platform(2) - Install

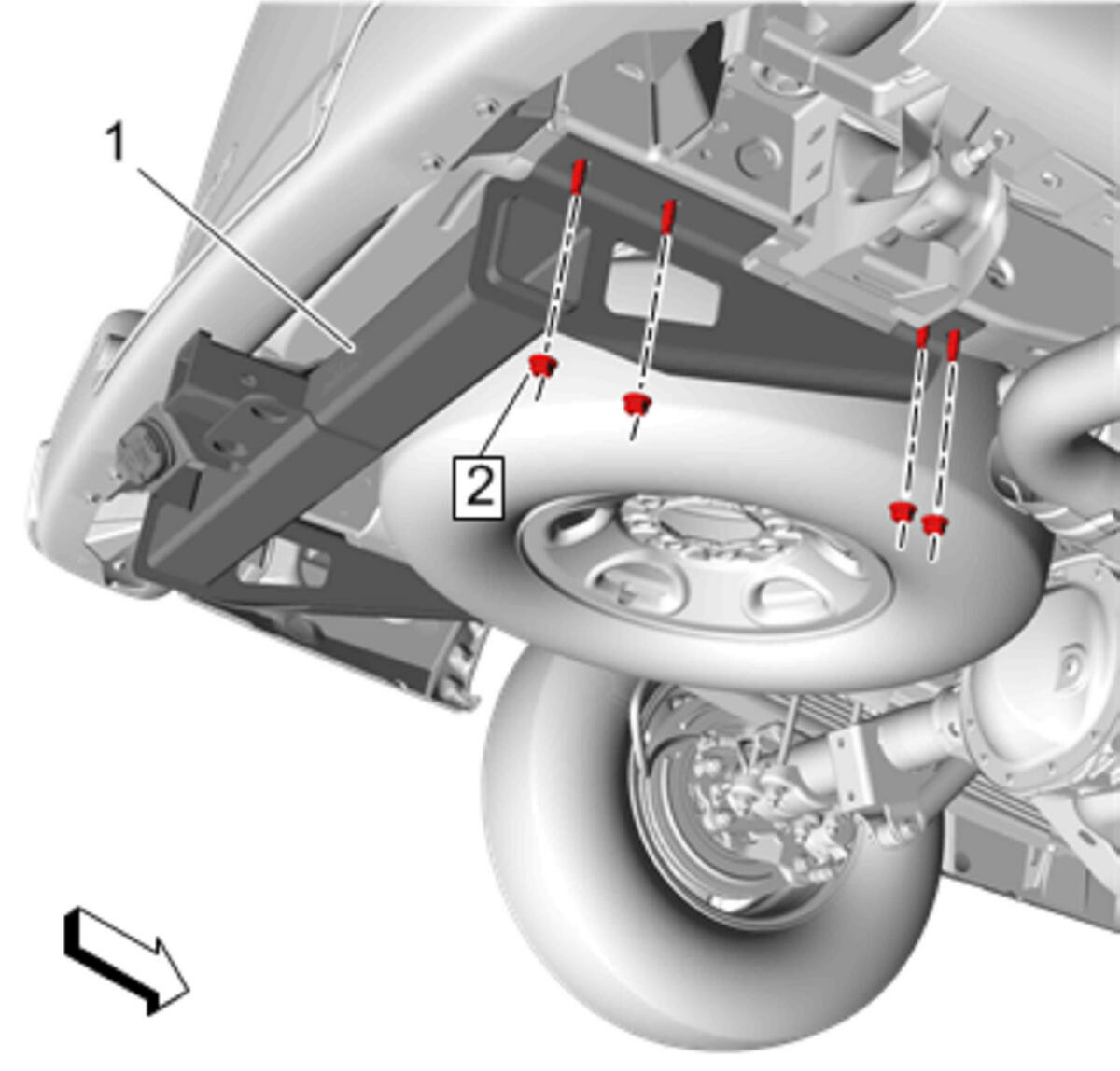

  3. GM4845654Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution

    Trailer Weight Distributing Hitch Platform Nut(2) - Install and tighten[4x]88 N.m (65 lb ft)

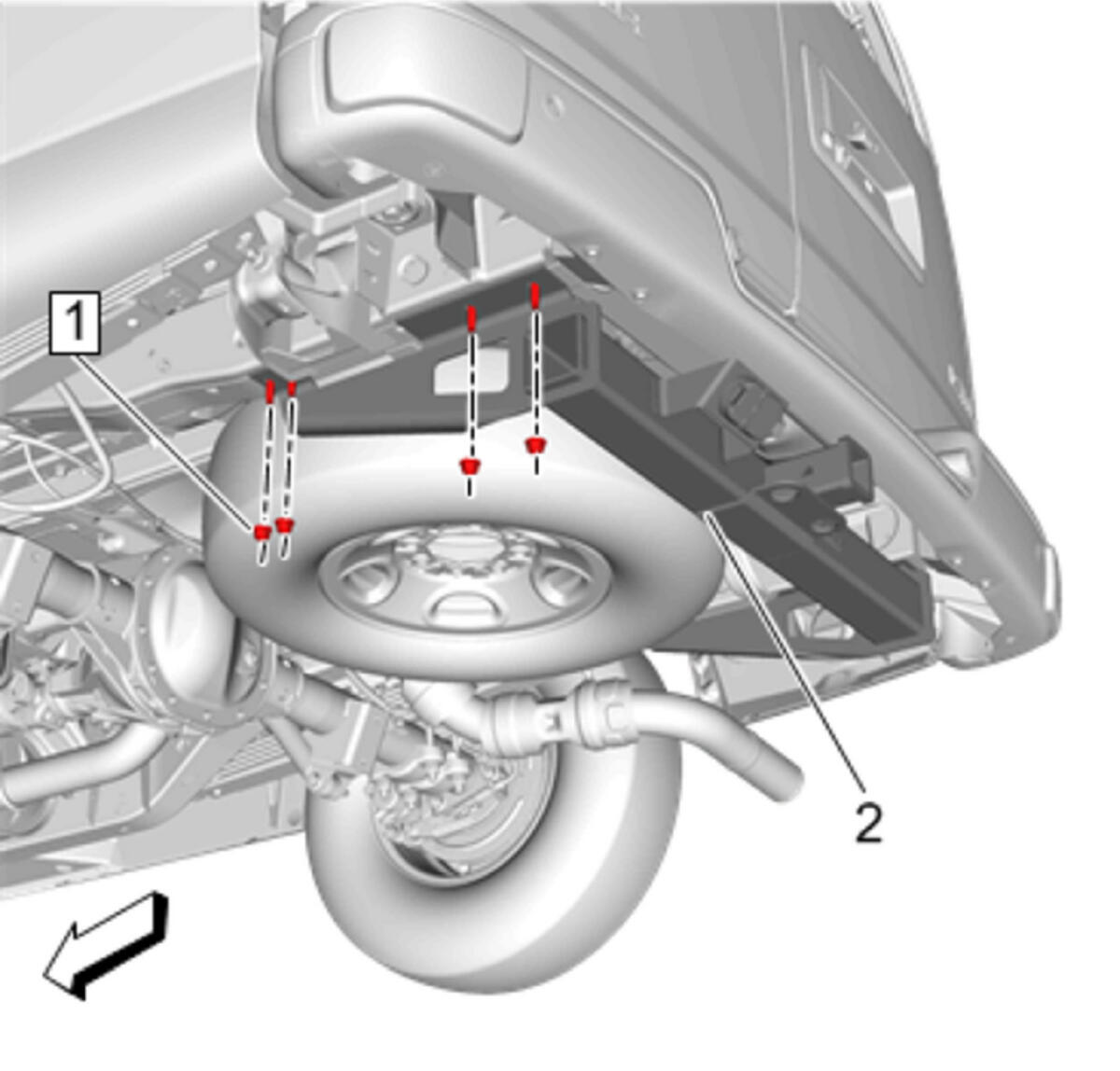

  4. GM4845653Courtesy of GENERAL MOTORS COMPANY

    Trailer Weight Distributing Hitch Platform Nut(1) - Install and tighten[4x]88 N.m (65 lb ft)

  5. Lower the vehicle.
