Rear Side Door Upper Track Garnish Molding Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
CAUTION: If a vehicle is equipped with a head curtain inflator module ensure that the inflator module and tether are undamaged. If tether or curtain airbag are damaged in any way, they must be replaced. CAUTION: Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced. Preliminary Procedure Disable the SIR system. SIR Disabling and Enabling

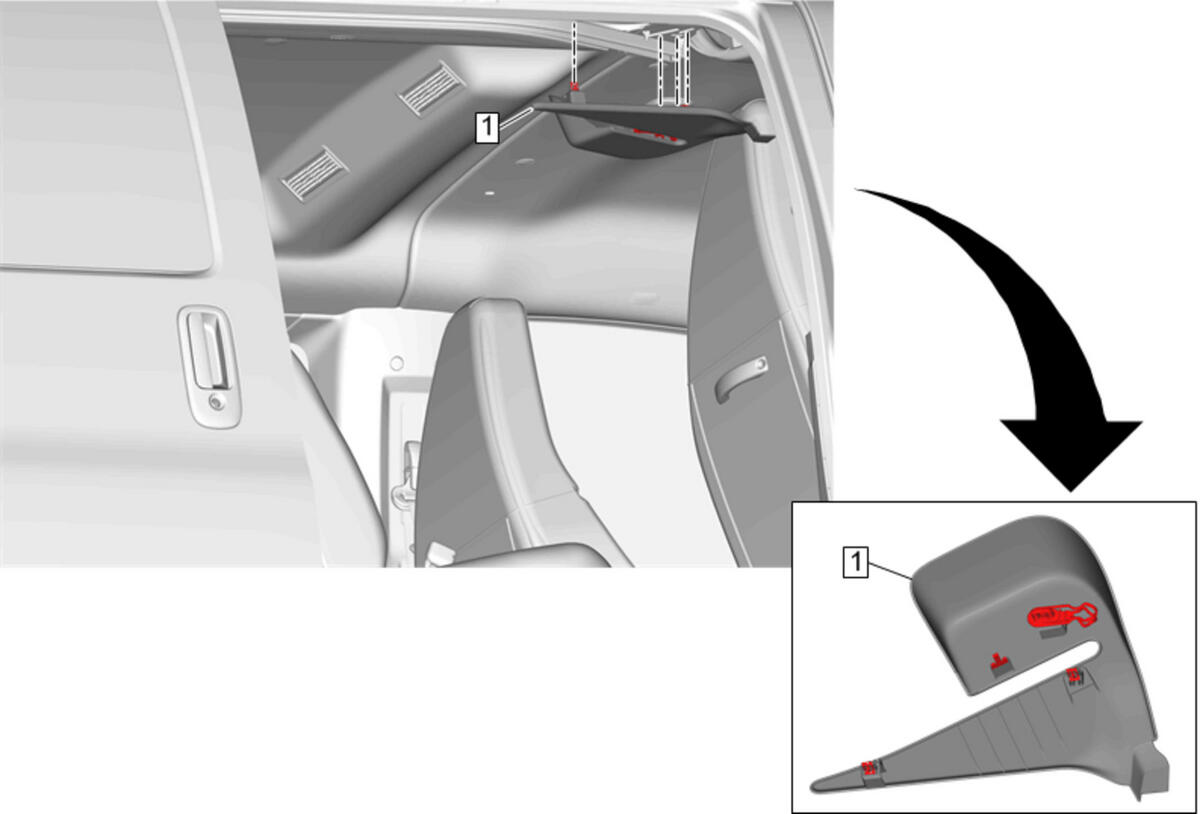

1	Rear Side Door Upper Track Garnish Molding Procedure Use a flat bladed plastic trim tool. Pull downward to disengage the retaining clips. The tether clip at the center portion of the garnish molding MUST be replaced every time the rear side door upper track garnish molding is removed. Enable the SIR System. SIR Disabling and Enabling

Callout

Component Name

CAUTION:

If a vehicle is equipped with a head curtain inflator module ensure that the inflator module and tether are undamaged. If tether or curtain airbag are damaged in any way, they must be replaced.

CAUTION:

Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced.

Preliminary Procedure Disable the SIR system. SIR Disabling and Enabling

Rear Side Door Upper Track Garnish Molding

Procedure

Use a flat bladed plastic trim tool.
Pull downward to disengage the retaining clips.
The tether clip at the center portion of the garnish molding MUST be replaced every time the rear side door upper track garnish molding is removed.
Enable the SIR System. SIR Disabling and Enabling
