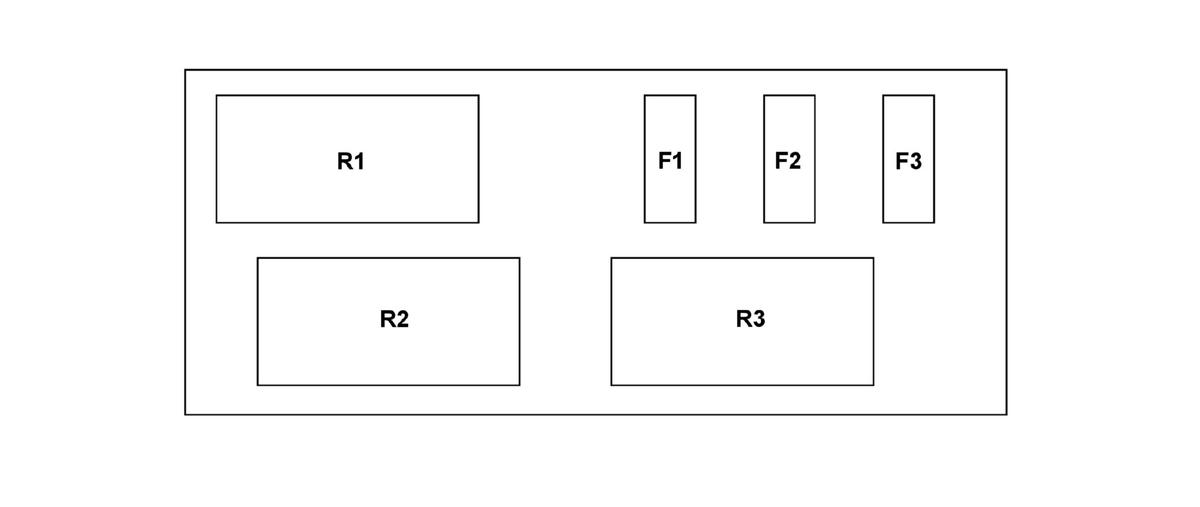

X53A Fuse Block - Rear Body Top View (PRP)

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Usage Table

No.	Device Label Name	Device Assigned Name	Rating	Description
Fuses
F1	DOME FLUORESCENT WORK LAMPS	F1RA	10A	E21A Fluorescent Work Lamp - Right Access Panel E21F Fluorescent Work Lamp - Front Cargo E21LF Fluorescent Work Lamp - Left Front Access Panel E21R Fluorescent Work Lamp - Rear Cargo E21LR Fluorescent Work Lamp - Left Rear Access Panel
F2	PANEL ACTUATOR	F2RA	15A	KR89LF Left Front Access Panel Relay KR89LR Left Rear Access Panel Relay KR89RR Right Rear Access Panel Relay
F3	SPARE	F3RA	-	Not Used
Relays
R1	LEFT REAR ACCESS PANEL RELAY	KR89LR Left Rear Access Panel Relay	-	M2C Access Panel Unlatch Actuator - Left Rear Side Front M2D Access Panel Unlatch Actuator - Left Rear Side Rear
R2	LEFT FRONT ACCESS PANEL RELAY	KR89LF Left Front Access Panel Relay	-	M2A Access Panel Unlatch Actuator - Left Front Side Front M2B Access Panel Unlatch Actuator - Left Front Side Rear
R3	RIGHT REAR ACCESS PANEL RELAY	KR89RR Right Rear Access Panel Relay	-	M2E Access Panel Unlatch Actuator - Right Side Front M2F Access Panel Unlatch Actuator - Right Side Rear
