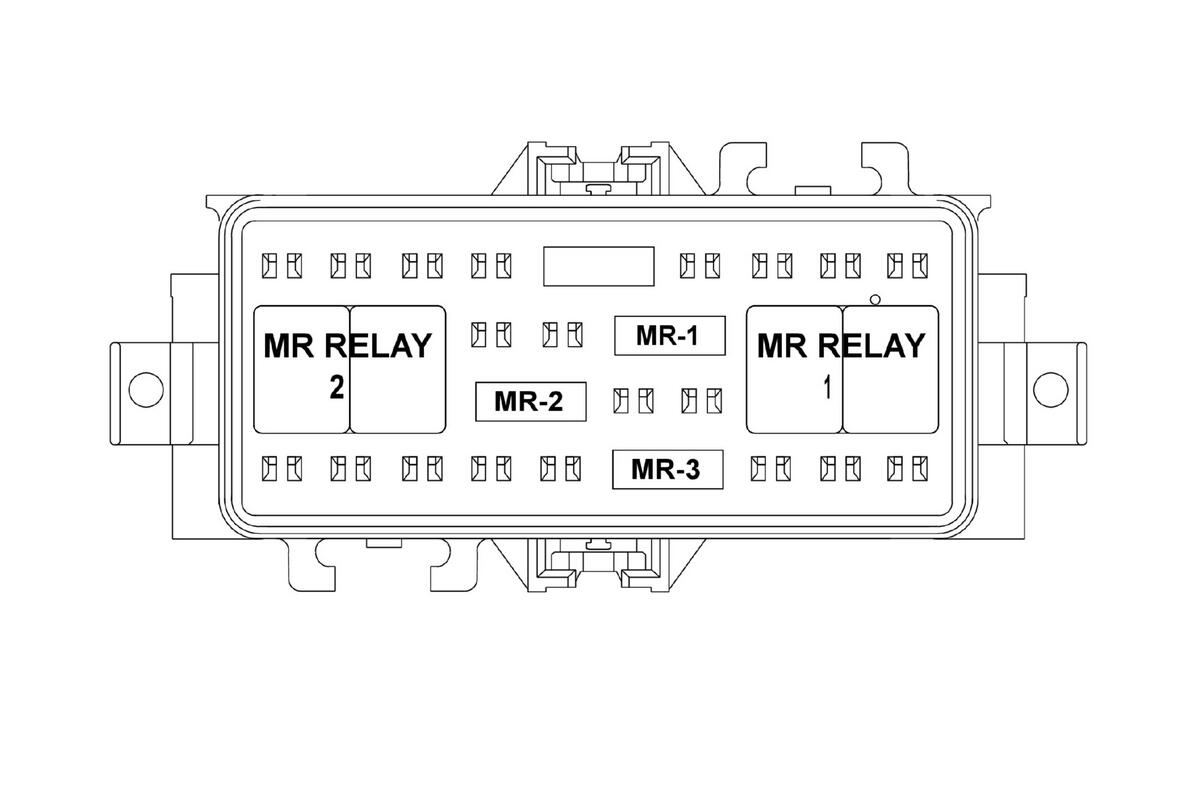

X50B Fuse Block - Underhood Auxiliary Top View
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
Usage Table
| No. | Device Label Name | Device Assigned Name | Rating | Description |
|---|---|---|---|---|
| Fuses | ||||
| F1 | MR-2 | F1UB | 30A |
|
| F2 | MR-1 | F2UB | 30A |
|
| F3 | MR-3 | F3UB | 10A |
|
| Relays | ||||
| R1 | MR RELAY 1 | KR90 Door Unlock Relay (WRF), KR161B Configurable Provision Relay 2 (9L7) | - |
|
| R2 | MR RELAY 2 | KR97 Door Lock Relay (WRF), KR161A Configurable Provision Relay 1 (9L7) | - |
|
