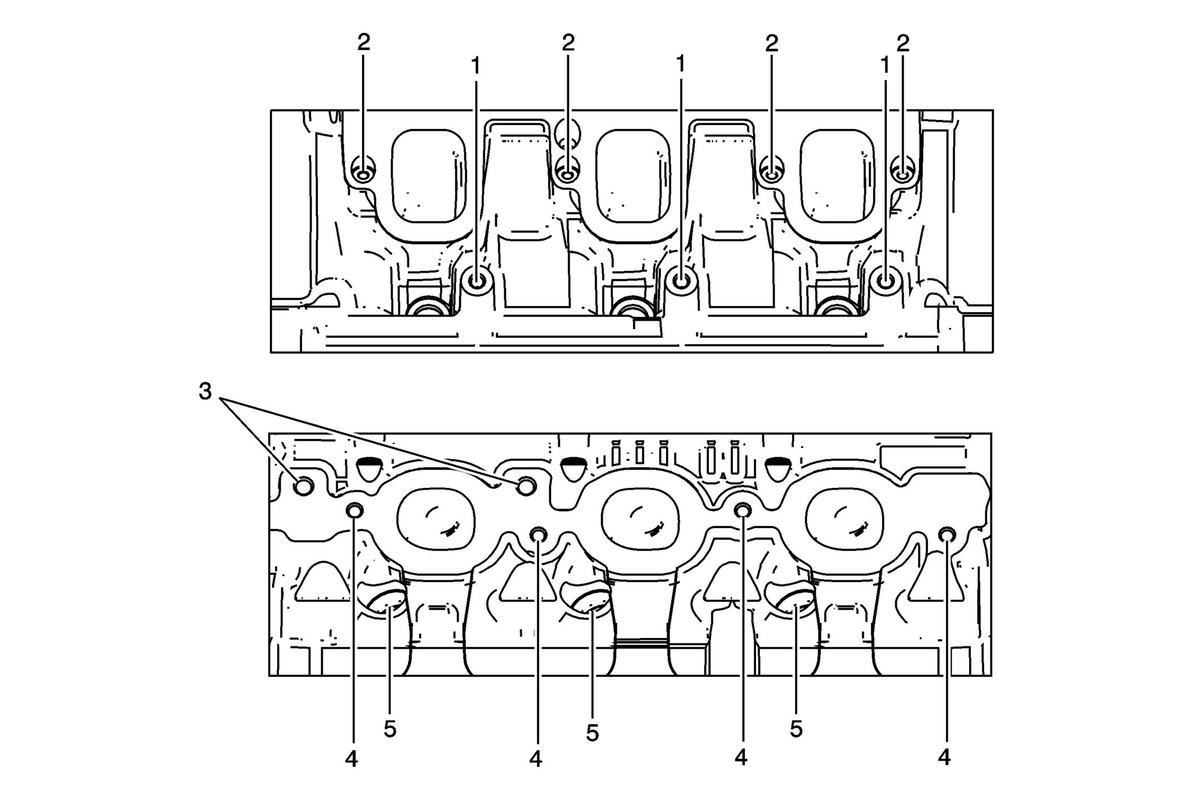

Cylinder Head - Intake/Exhaust Side Views
| Hole | Thread Size | Insert | Drill | Counterbore Tool | Tap | Driver | Drill Depth - Maximum mm (in) | Tap Depth - Maximum mm (in) |
|---|---|---|---|---|---|---|---|---|
| J-42385- | ||||||||
| 1 | M8 x 1.25 | 210 | 206 | 207 | 208 | 209 | 23.0 (0.907) | 23.0 (0.907) |
| 2 | M6 x 1.0 | 205 | 201 | 202 | 203 | 204 | 21.0 (0.825) | 21.0 (0.825) |
| 3 | M10 x 1.5 | 420 | 211 | 212 | 213 | 214 | 34.0 (1.35) | 34.0 (1.35) |
| 4 | M8 x 1.25 | 210 | 206 | 207 | 208 | 209 | 29.0 (1.14) | 29.0 (1.14) |
| 5 | M14x 1.25 | N/A | N/A | N/A | N/A | N/A | 26.0 (1.023) | 26.0 (1.023) |
| Bolt Hole 5 (Spark Plug Port) is not serviceable. | ||||||||
