Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

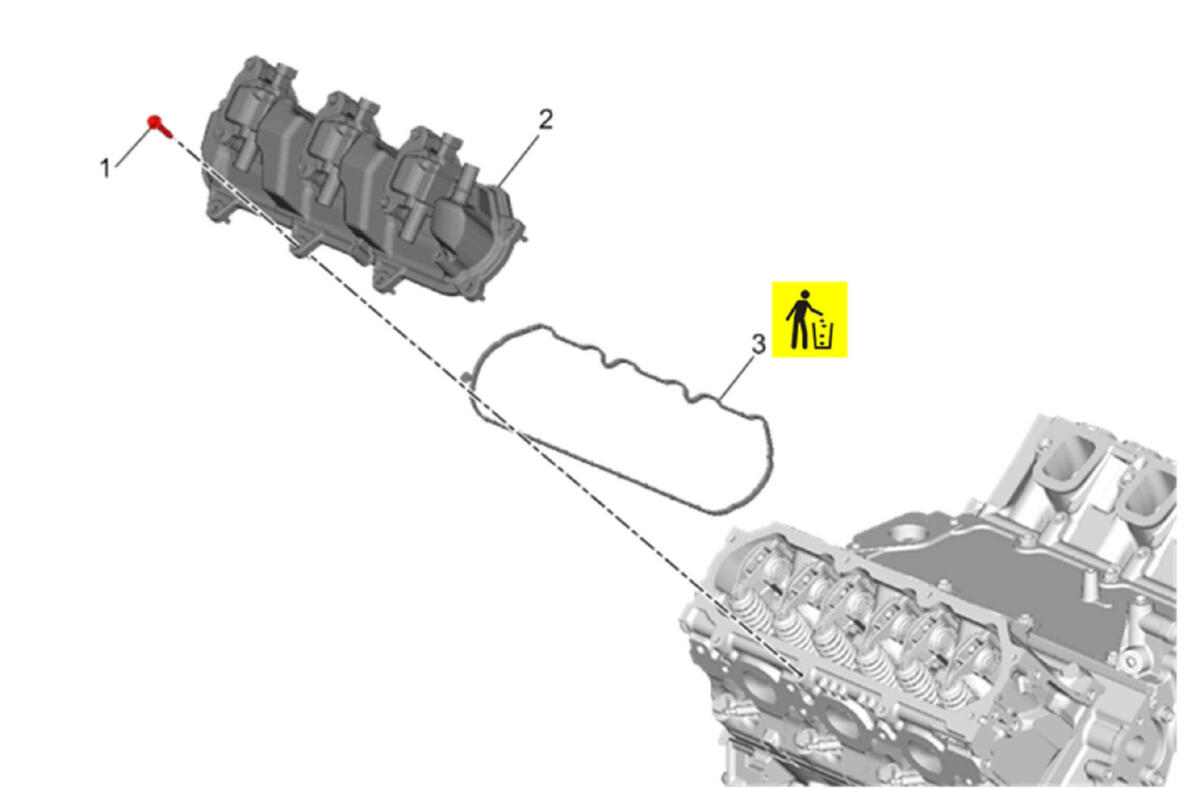

  1. GM4807861Courtesy of GENERAL MOTORS COMPANY

    Valve Rocker Arm Cover (2) - Remove - Valve Rocker Arm Cover Replacement - Left Side , or Valve Rocker Arm Cover Replacement - Right Side

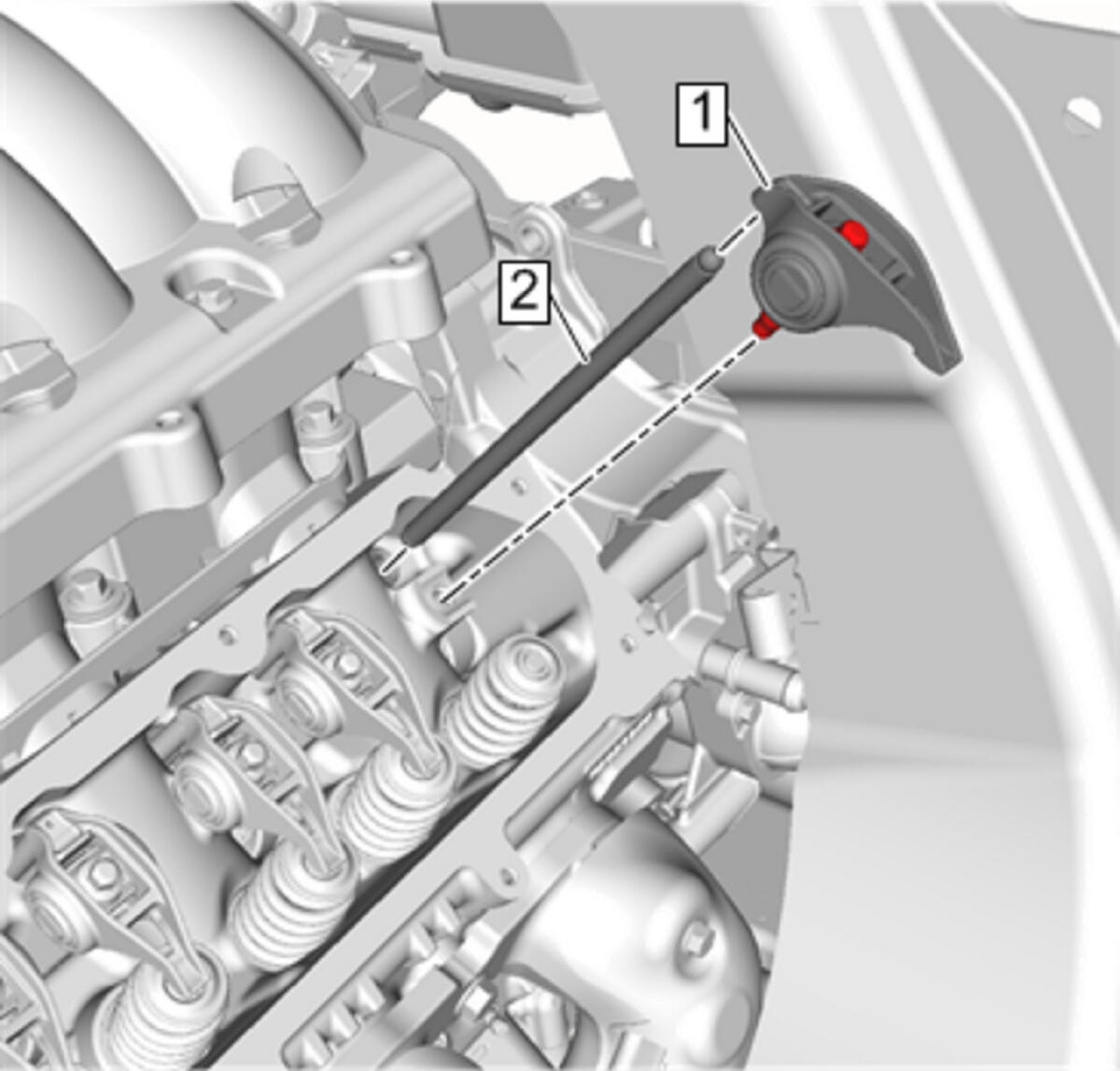

  2. GM4859199Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Place the valve rocker arms, valve pushrods, and pivot support, in a rack so that they can be installed in the same location from which they were removed.

    Remove the valve rocker arm and bolt assembly (1).

  3. Remove the pushrod (2).
  4. Clean and inspect the rocker arms and/or pushrods, if necessary. Valve Rocker Arm and Push Rod Cleaning and Inspection .
