Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Cylinder Head - Remove - Cylinder Head Replacement - Left Side , or Cylinder Head Replacement - Right Side

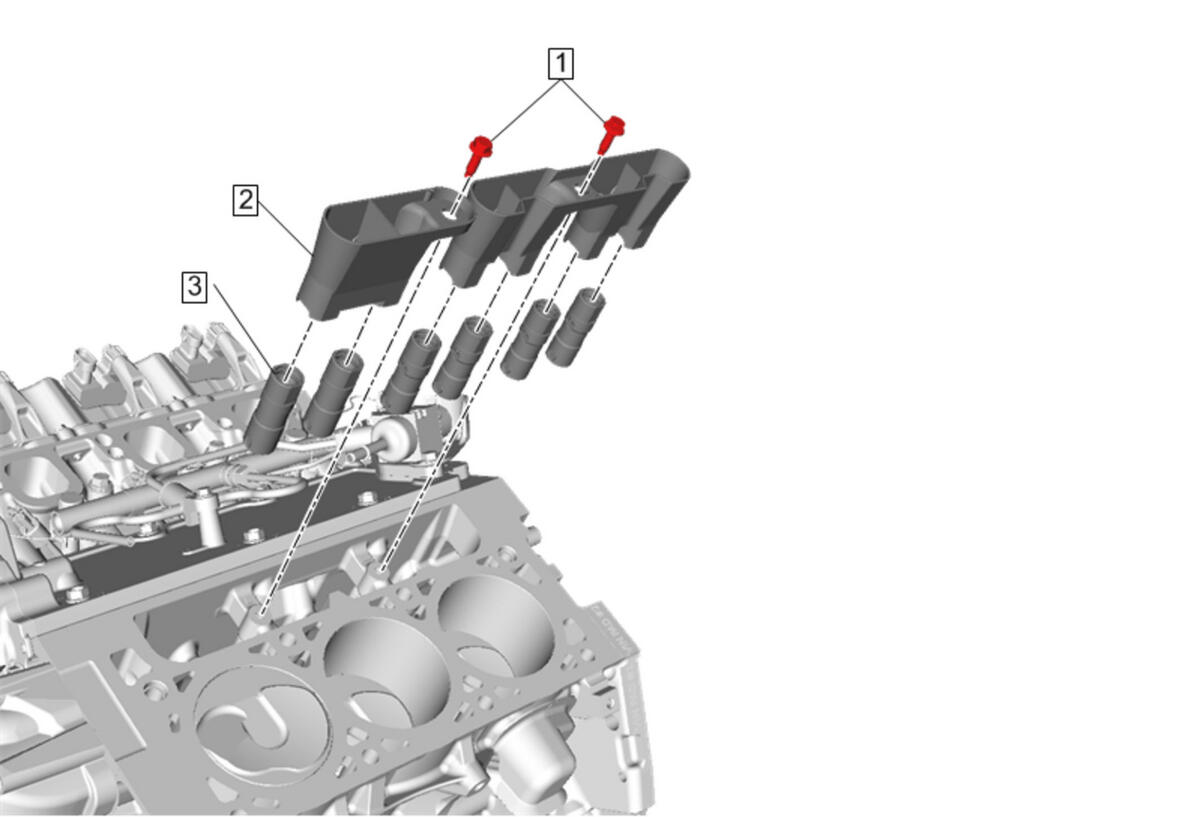

  2. GM4861728Courtesy of GENERAL MOTORS COMPANY

    Valve Lifter Guide Bolt (1) - Remove [2x]

    3. NOTE:

    Installed position of the guides - the notched area of the guide must align with the locating tab of the block.

  3. Valve Lifter Guide (2) - Remove [2x]
  4. Valve Lifter (3) - Remove [6x]
  5. Organize or mark the components so they can be installed in the same location from which they were removed. Separating Parts
  6. For valve lifter and guide cleaning and inspection. Valve Lifter and Guide Cleaning and Inspection
