Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

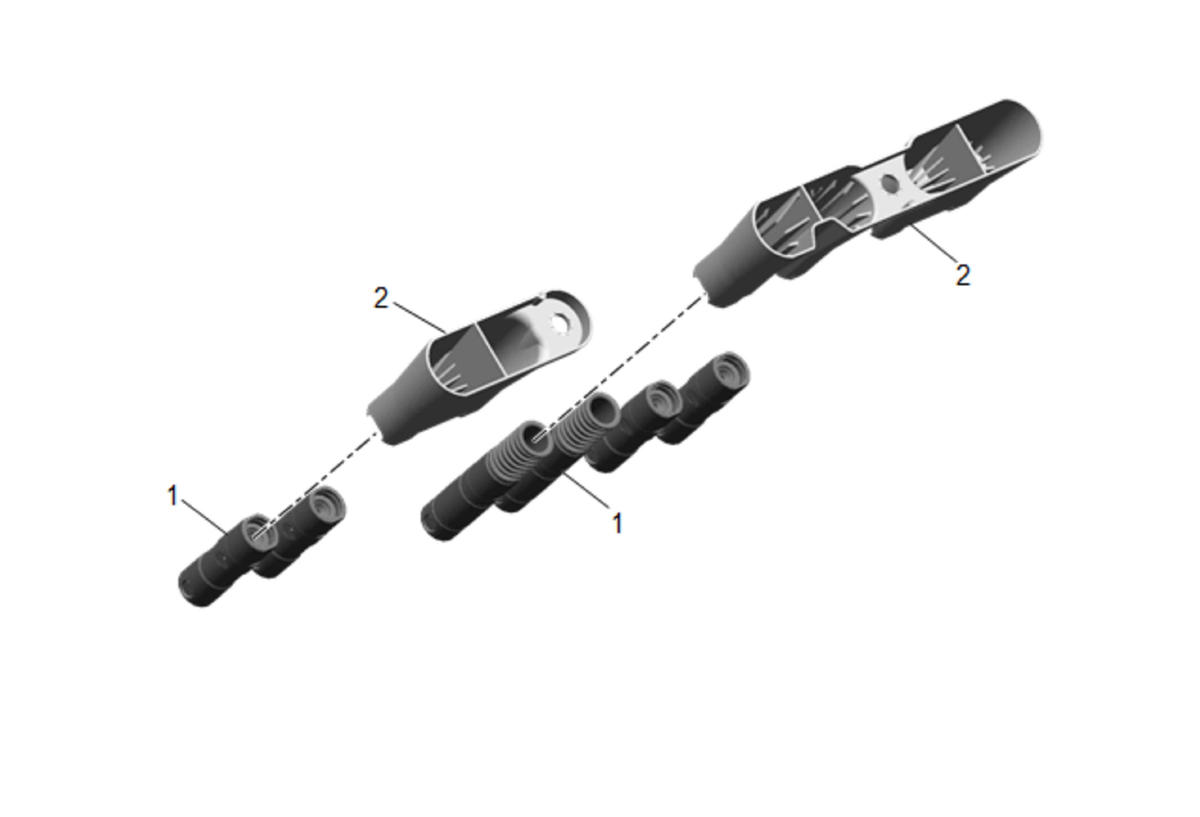

  1. GM5142686Courtesy of GENERAL MOTORS COMPANY
    NOTE:
    • When reusing the valve lifters, install the lifters to their original location.
    • If camshaft replacement is required, the valve lifters must also be replaced.

    Lubricate the valve lifters (1) and engine block valve lifter bores with clean engine oil.

  2. GM4861728Courtesy of GENERAL MOTORS COMPANY

    Valve Lifter (3) - Install [6x]

  3. Valve Lifter Guide (2) - Install [2x]
  4. Valve Lifter Guide Bolt (1) - Install [2x] - Valve Lifter Installation
  5. Cylinder Head - Install - Valve Lifter Installation , Cylinder Head Replacement - Left Side , or Cylinder Head Replacement - Right Side
