Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM4806729Courtesy of GENERAL MOTORS COMPANY

    Crankshaft Balancer (2) - Remove - Crankshaft Balancer Replacement

  2. GM4842428Courtesy of GENERAL MOTORS COMPANY

    Water Pump (1) - Remove - Water Pump Replacement (LV1)

  3. Oil Pan - Remove - Oil Pan Replacement
  4. Disconnect electrical connectors as necessary.

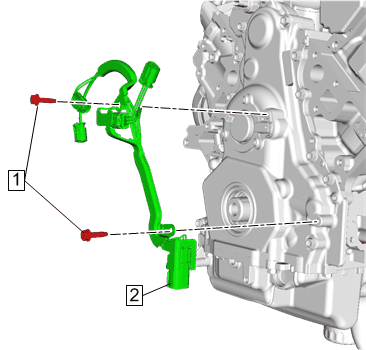

  5. GM4864118Courtesy of GENERAL MOTORS COMPANY

    Remove the harness bolts (1) and the harness (2)

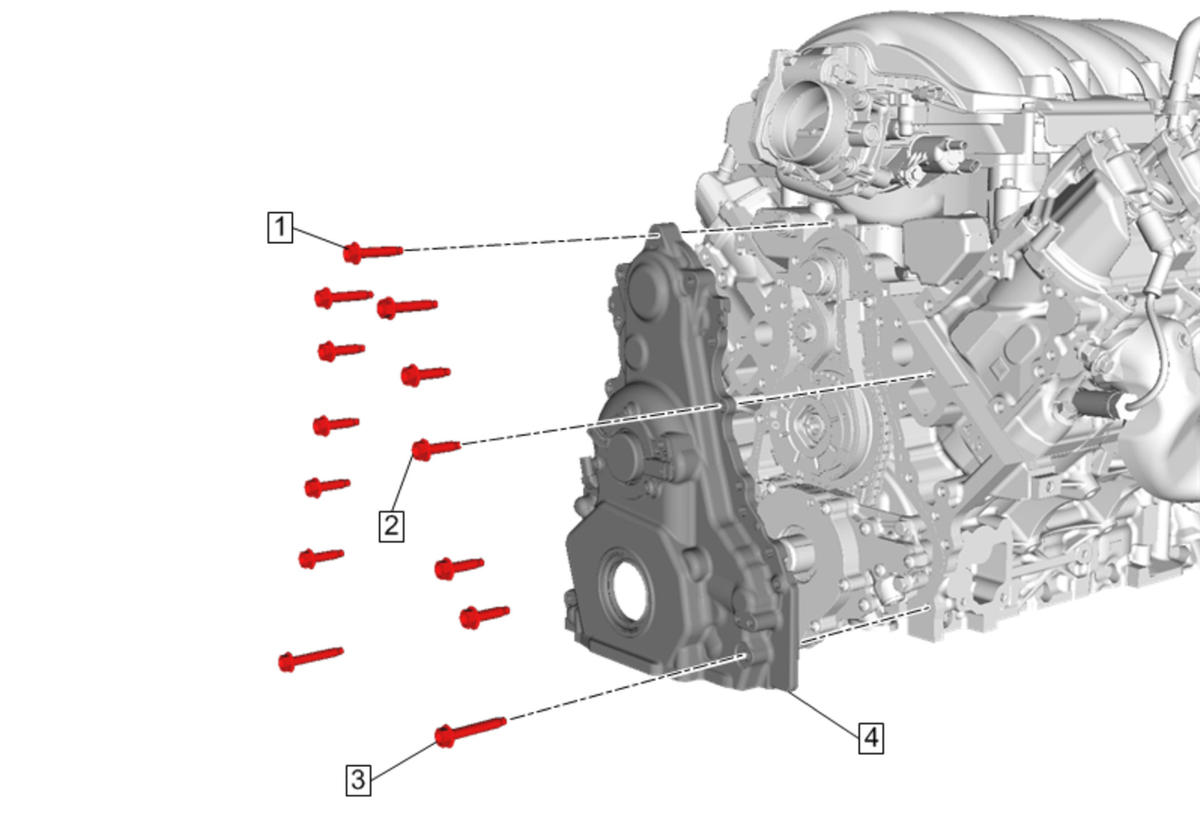

  6. GM4864116Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Three different bolt sizes are used in the engine front cover. Note the size and location of each bolt to ensure correct installation.

    Remove the front cover bolts (1-3) [13x].

  7. Remove front cover (4).
  8. Clean and inspect the engine front cover. Engine Front Cover Cleaning and Inspection
