Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. For cylinder head assembly, refer to Cylinder Head Assembly .
  2. Clean any debris or residual fastener thread sealant from the engine block cylinder head bolt holes to ensure proper torque or clamp load.

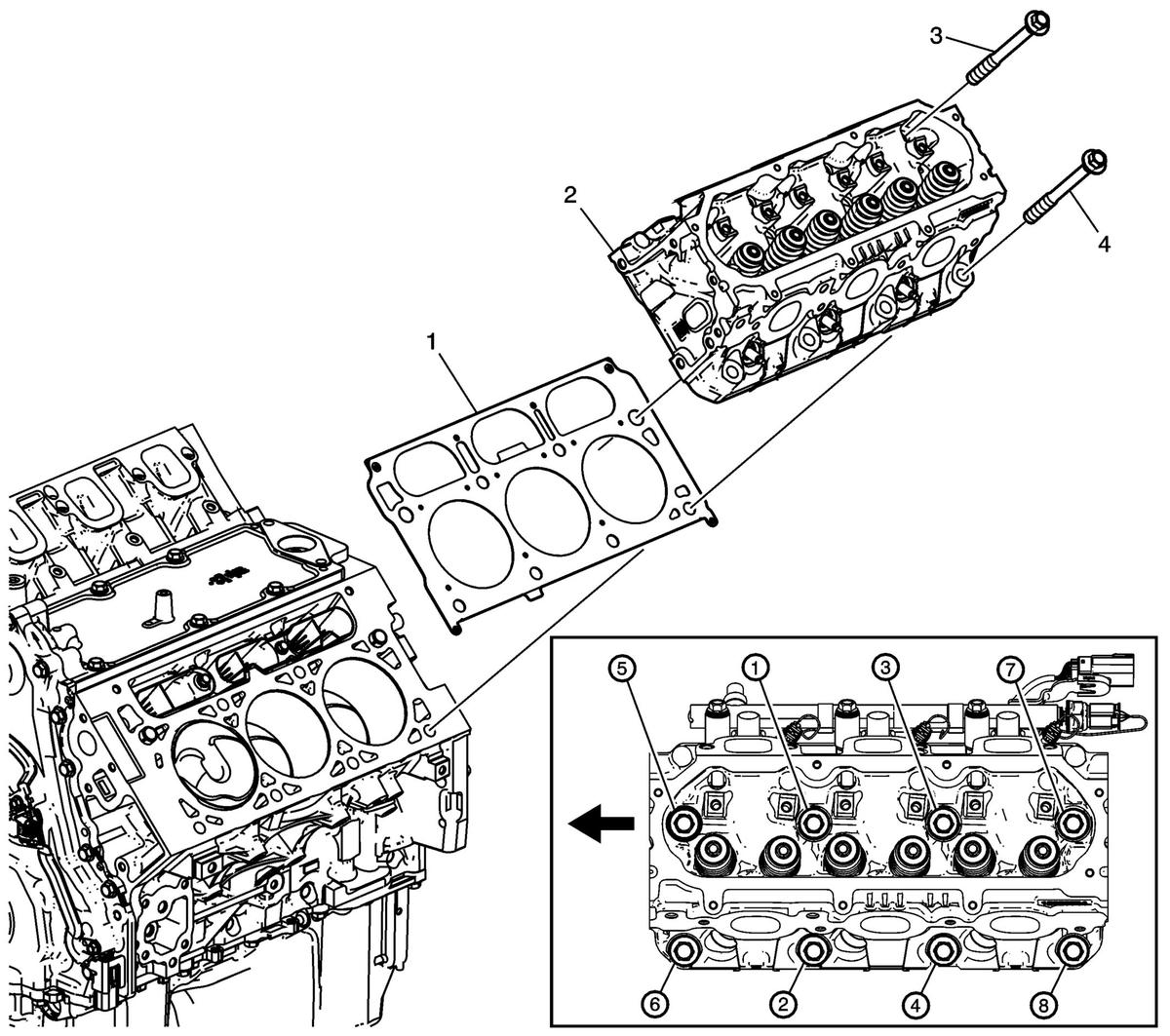

  3. Fig 1: Cylinder Head Components And Bolts With Tightening Sequence - Left Side
    GM3351575Courtesy of GENERAL MOTORS COMPANY

    Install a NEW cylinder head gasket (1).

  4. Install cylinder head (2).
  5. Hand start NEW cylinder head bolts (3, 4).
  6. Tighten cylinder head bolts in sequence. Cylinder Head Installation - Left Side
  7. Install the valve rocker arm and push rod. Valve Rocker Arm and Push Rod Replacement

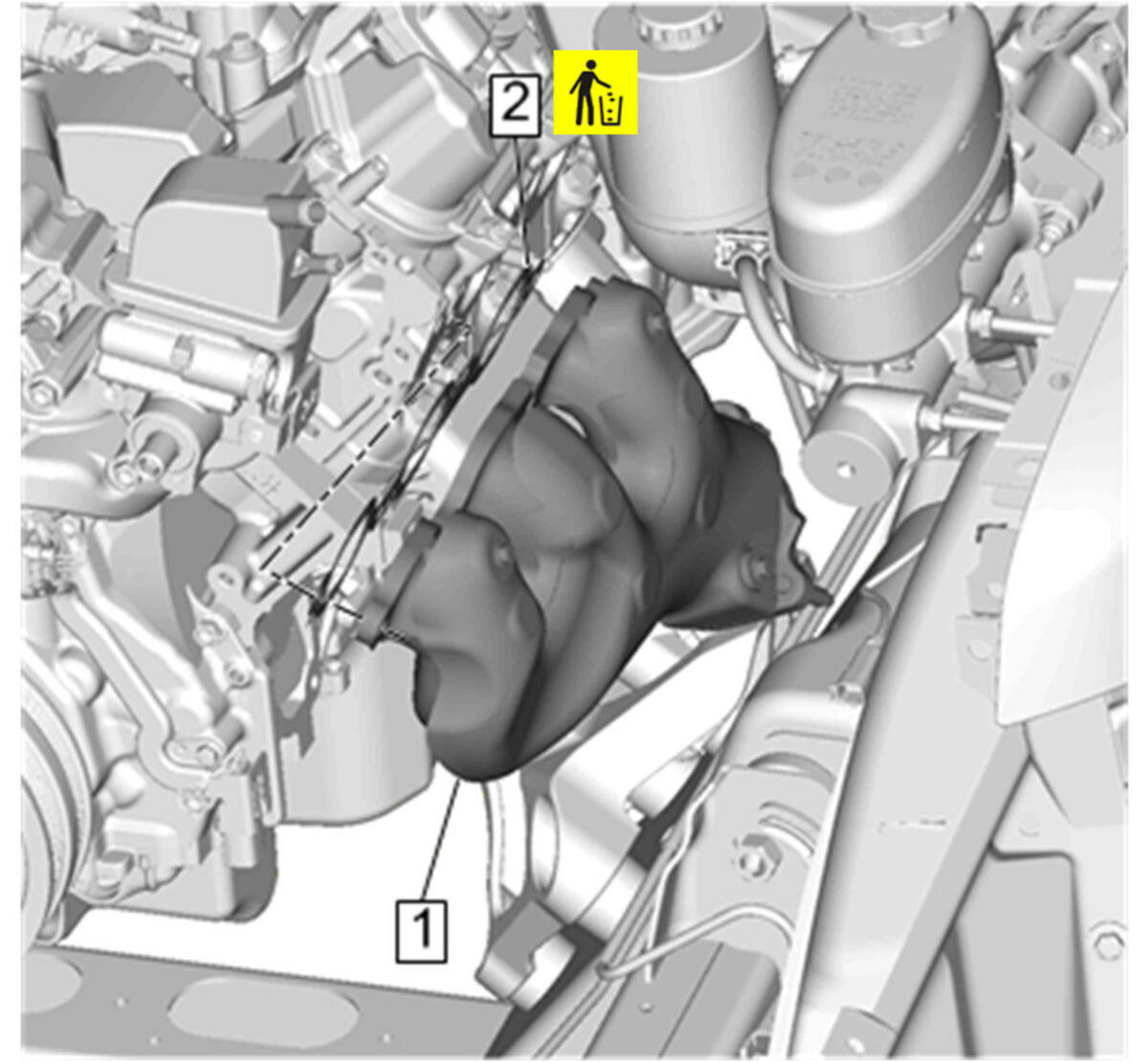

  8. GM4846324Courtesy of GENERAL MOTORS COMPANY

    Exhaust Manifold (1) - Left Side - Install - Exhaust Manifold Replacement - Left Side (LV1)

  9. Connect electrical connectors as necessary.

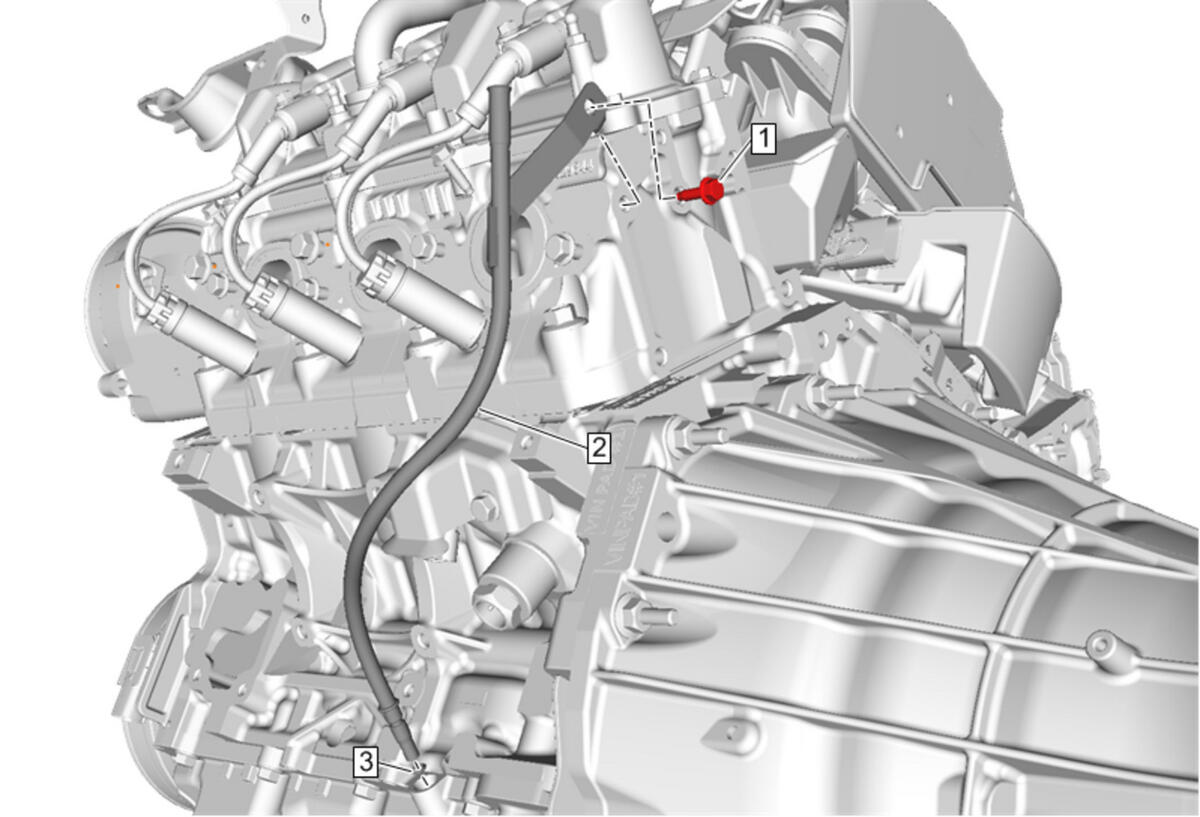

  10. GM4860045Courtesy of GENERAL MOTORS COMPANY

    Oil Level Indicator Tube (2) - Lower - Install - Oil Level Indicator Tube Replacement (Lower)

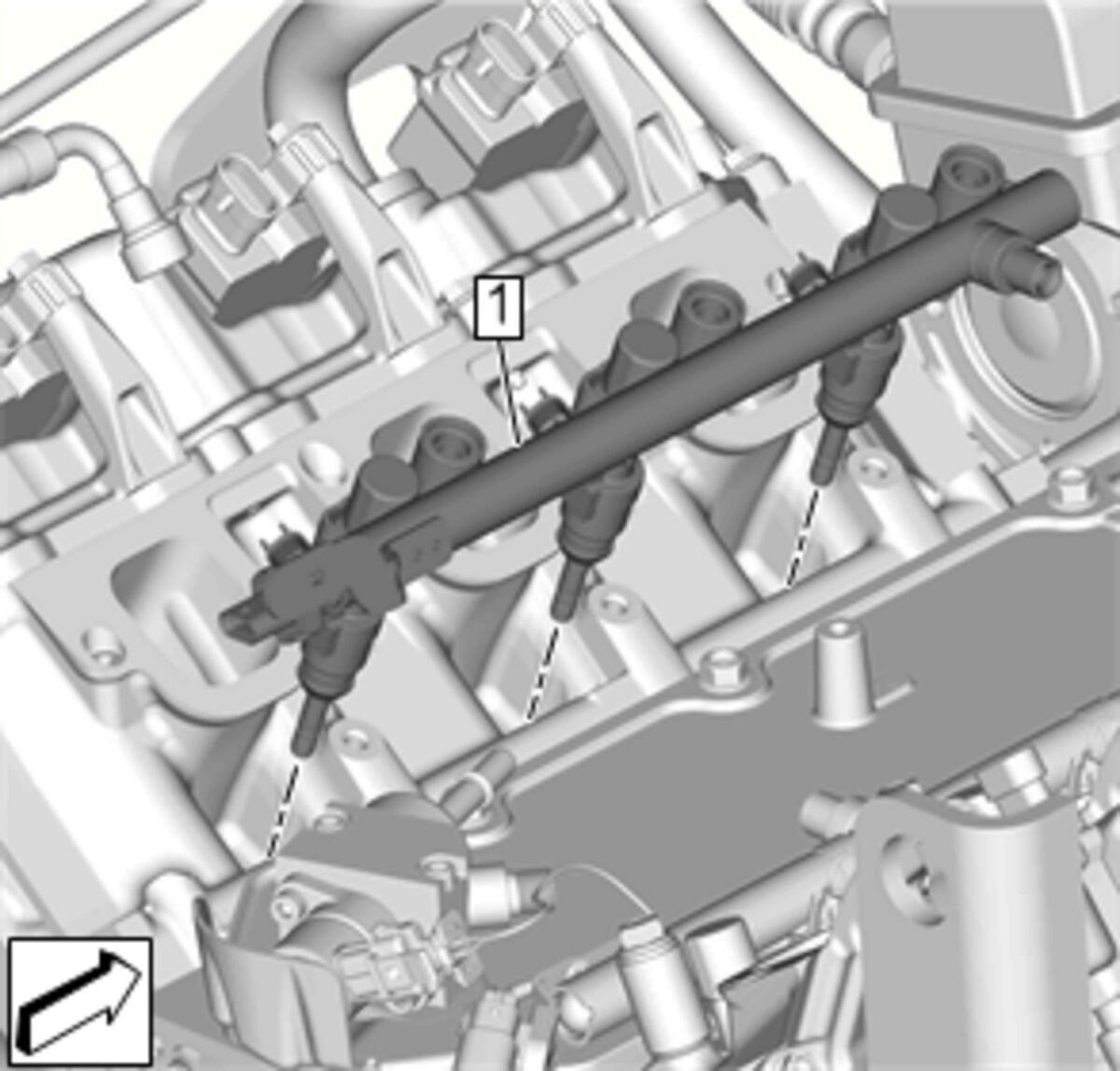

  11. GM4855432Courtesy of GENERAL MOTORS COMPANY

    Fuel Rail (1) - Left Side - Install - Fuel Injection Fuel Rail Assembly Replacement - Bank 1

  12. Power Steering Pump Bracket - Install - Power Steering Pump Bracket Replacement
  13. Refill the cooling system. Cooling System Draining and Filling (Static LC8, LV1, L96) , or Cooling System Draining and Filling (GE47716 LC8, LV1, L96)
