Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Radiator - Remove - Radiator Replacement (LV1)
  2. Air Conditioning Condenser - Remove - Air Conditioning Condenser Replacement (LV1)
  3. Valve Lifter Follower Guide - Remove - Valve Lifter Follower Guide Replacement
  4. Valve Lifter - Remove - Valve Lifter Replacement
  5. GM4862028Courtesy of GENERAL MOTORS COMPANY

    Camshaft Position Actuator, Timing Chain - Remove - Timing Chain, Crankshaft Sprocket, Camshaft Position Actuator, and Solenoid Valve Replacement

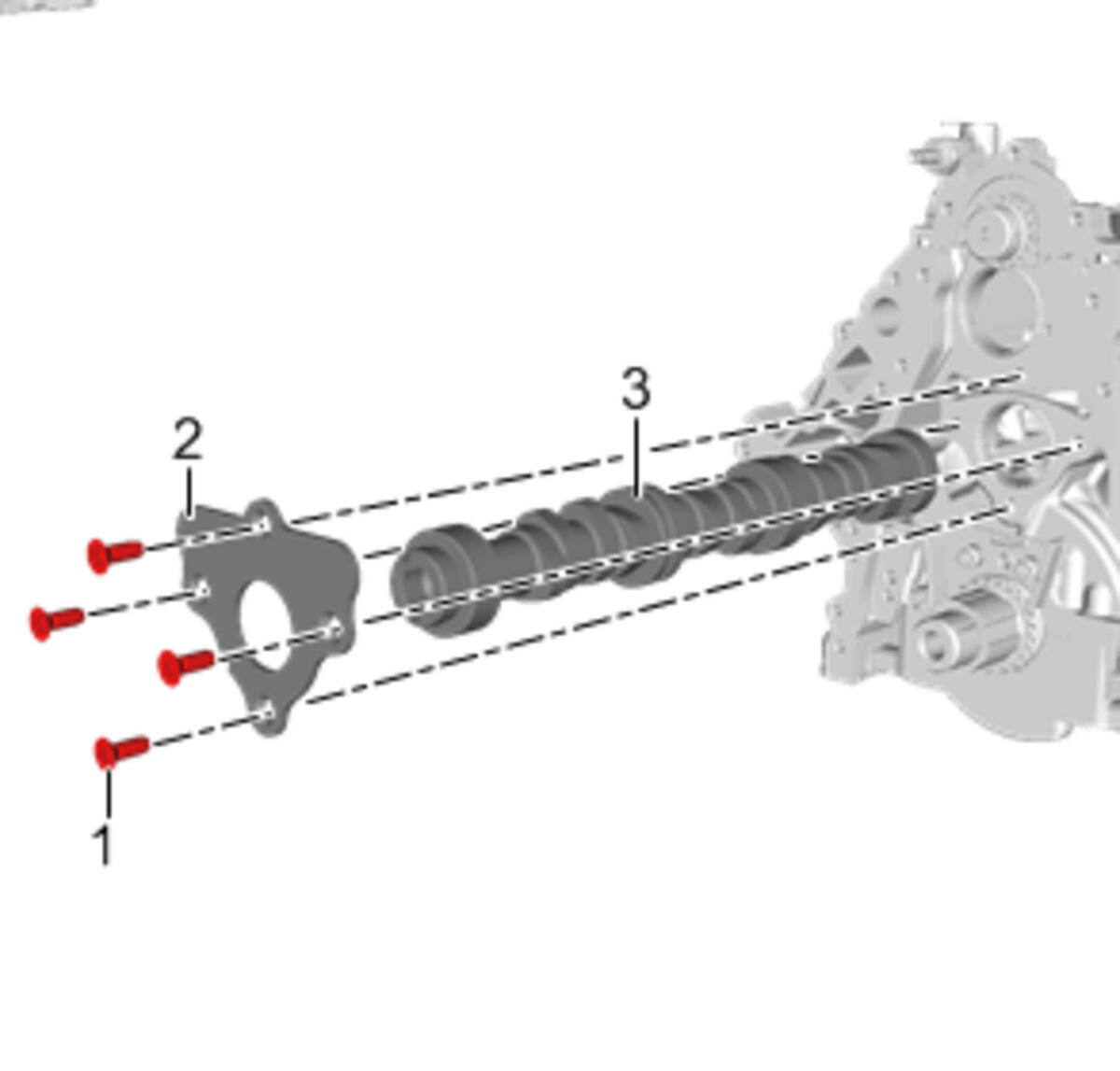

  6. GM4862032Courtesy of GENERAL MOTORS COMPANY

    Camshaft Retainer Bolt (1) - Remove [4x]

  7. Camshaft Retainer (2) - Remove
  8. Camshaft (3) - Remove
  9. For camshaft cleaning and inspection, refer to Camshaft and Bearings Cleaning and Inspection .
