Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Starter (1) - Remove - Starter Replacement (LV1)
Courtesy of GENERAL MOTORS COMPANY

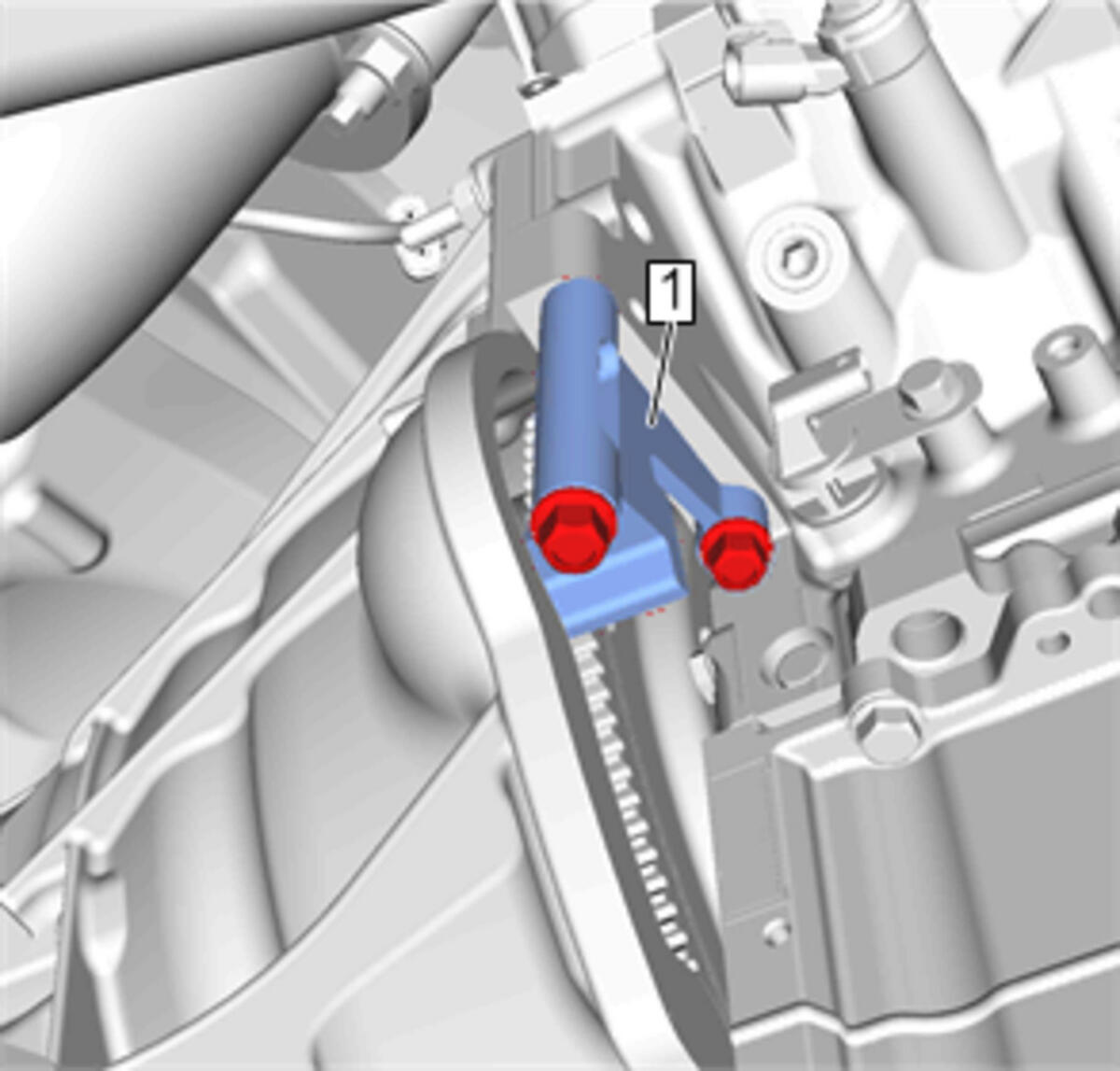

EN-42386-A flywheel holding tool (1) - Install
Oil Pump - Remove - Oil Pump Replacement
Courtesy of GENERAL MOTORS COMPANY

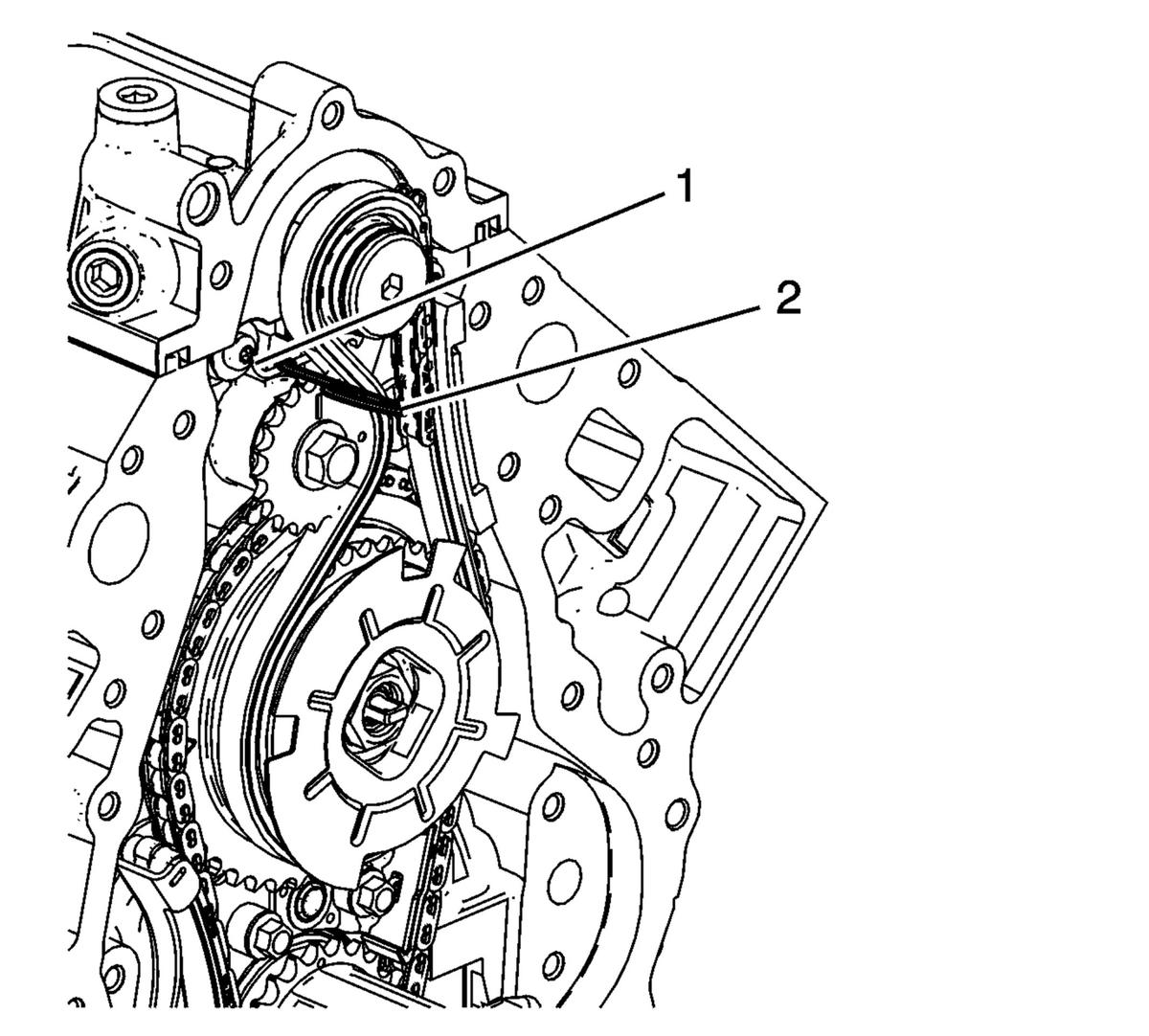

Push down the balance shaft thrust plate torsion spring (1) and install EN-46330 tension pin (2).
Courtesy of GENERAL MOTORS COMPANY

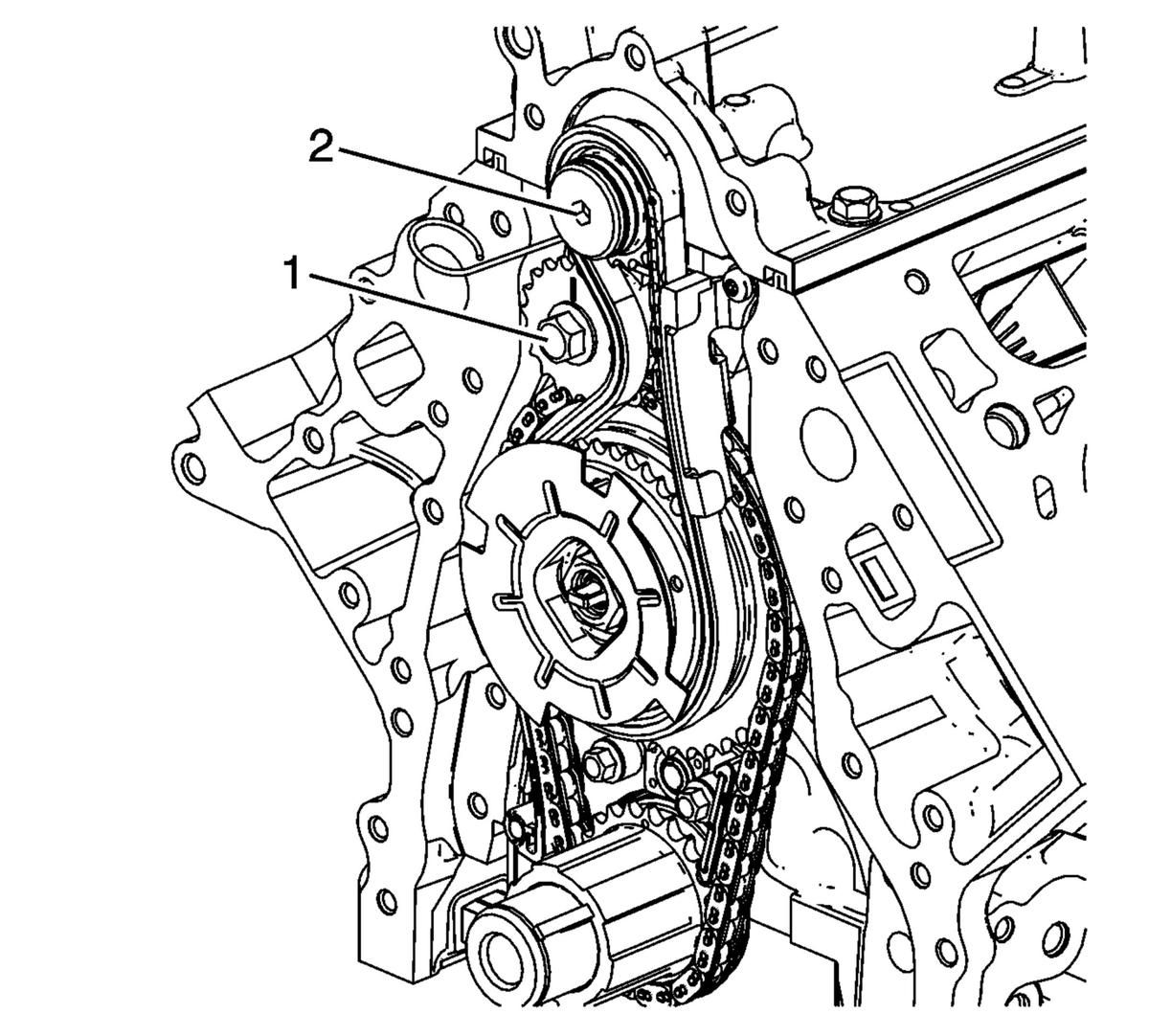

Loosen the balancer shaft bolt (1) and the idler shaft sprocket bolt (2).
Courtesy of GENERAL MOTORS COMPANY

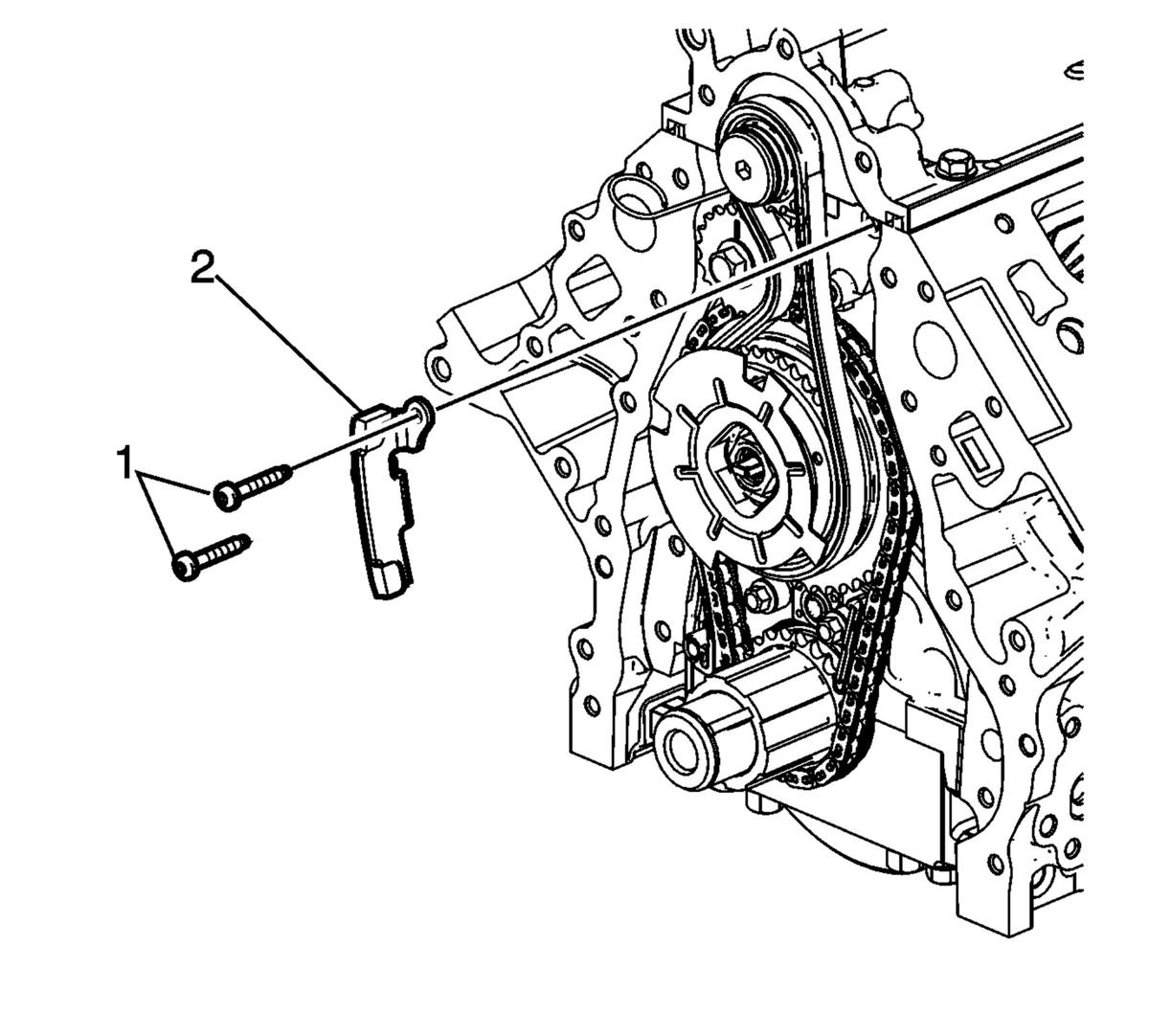

Remove the two balancer shaft retainer bolts (1).
Remove the balancer chain guide (2).
Courtesy of GENERAL MOTORS COMPANY

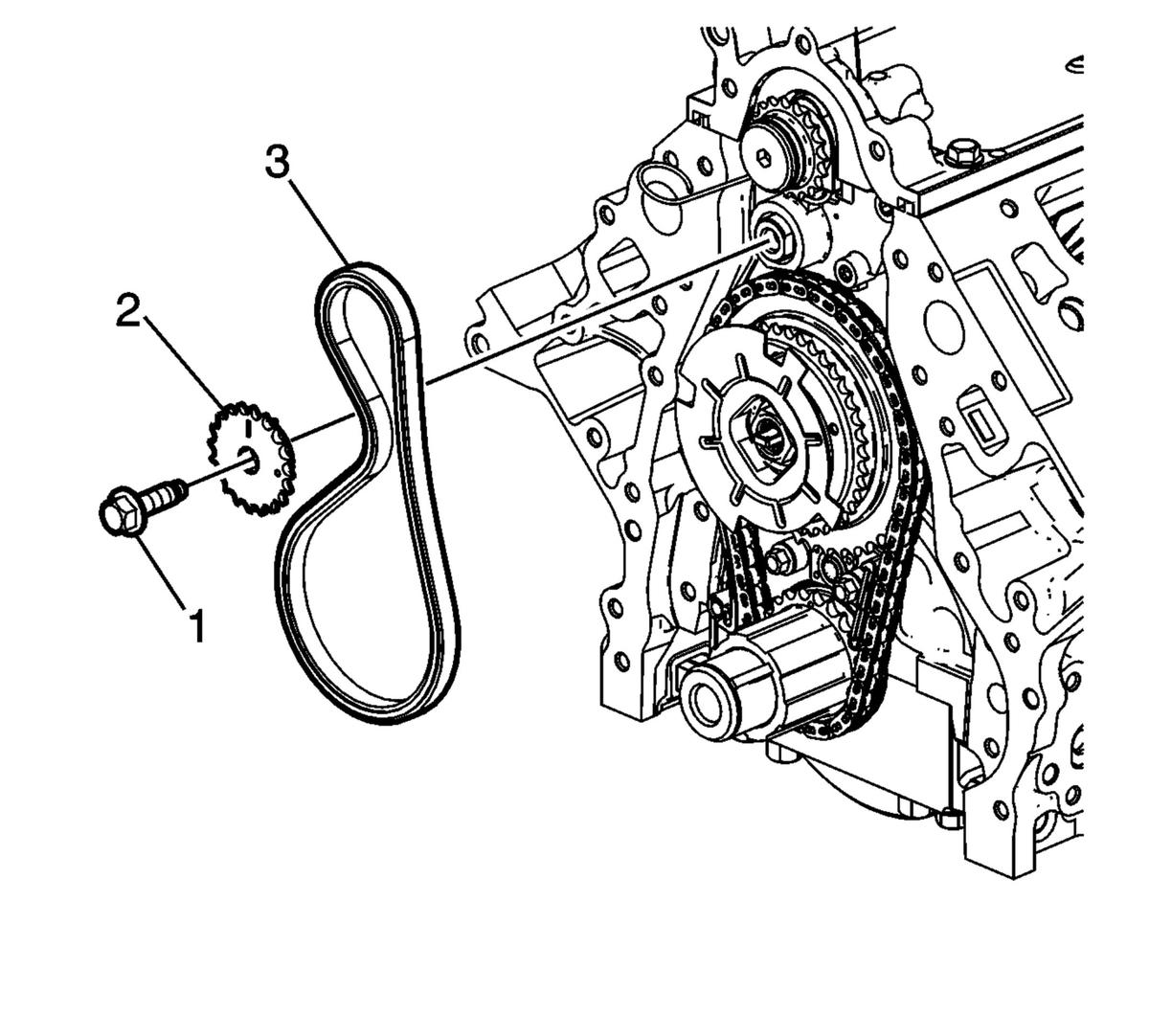

Remove the balancer shaft driven sprocket bolt (1) and the balancer shaft driven sprocket (2).
Remove the balancer shaft chain (3).
Courtesy of GENERAL MOTORS COMPANY

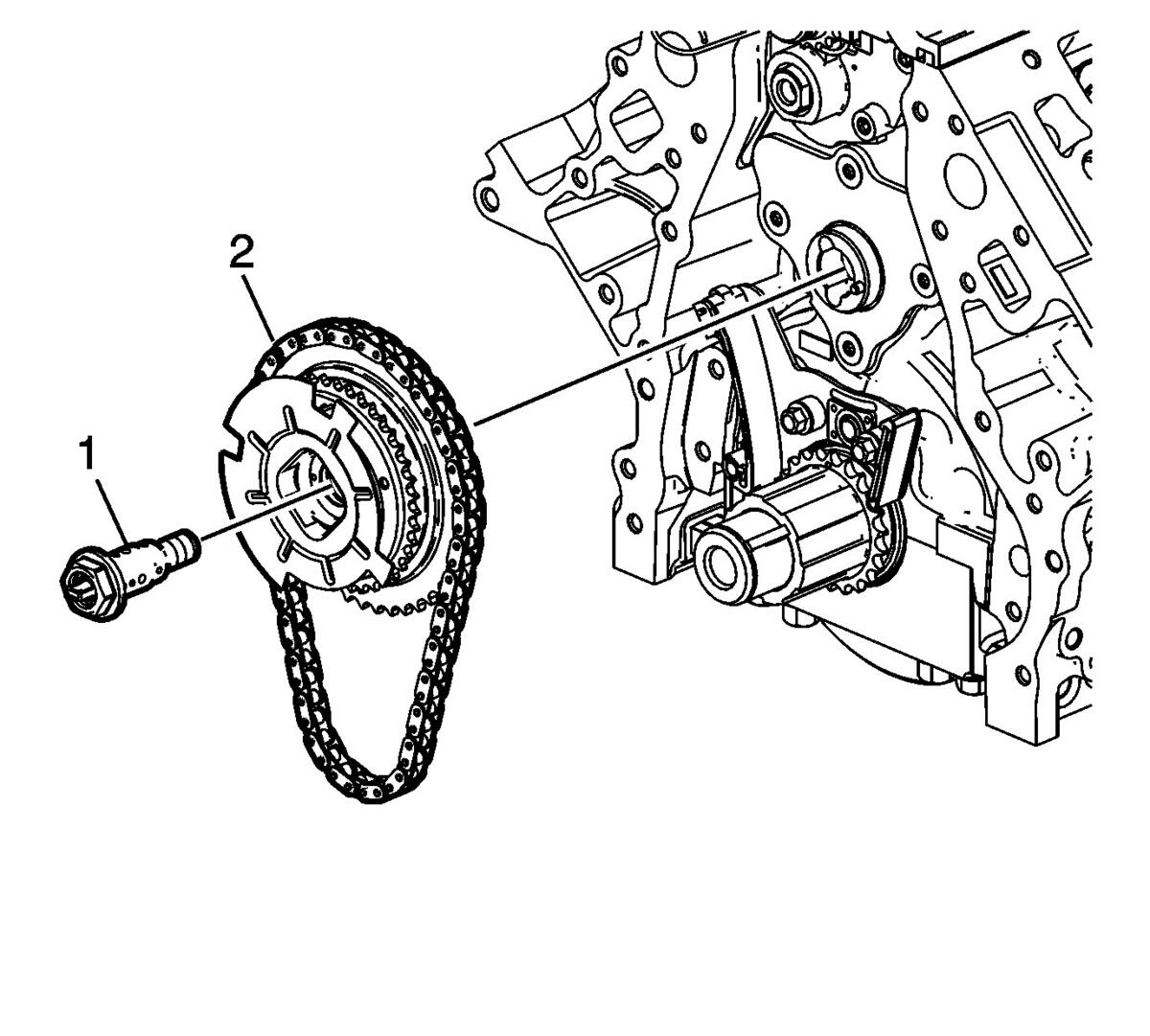

Remove the CMP actuator solenoid valve (1).
Loosen and separate the CMP actuator and timing chain (2) from the camshaft. Position fingers behind the actuator sprocket and pull the actuator away from the front of the camshaft. Never pull on the reluctor wheel when attempting to remove the actuator.
Courtesy of GENERAL MOTORS COMPANY

Insert a tie strap (1) through the center of the actuator and over the reluctor wheel.
Courtesy of GENERAL MOTORS COMPANY

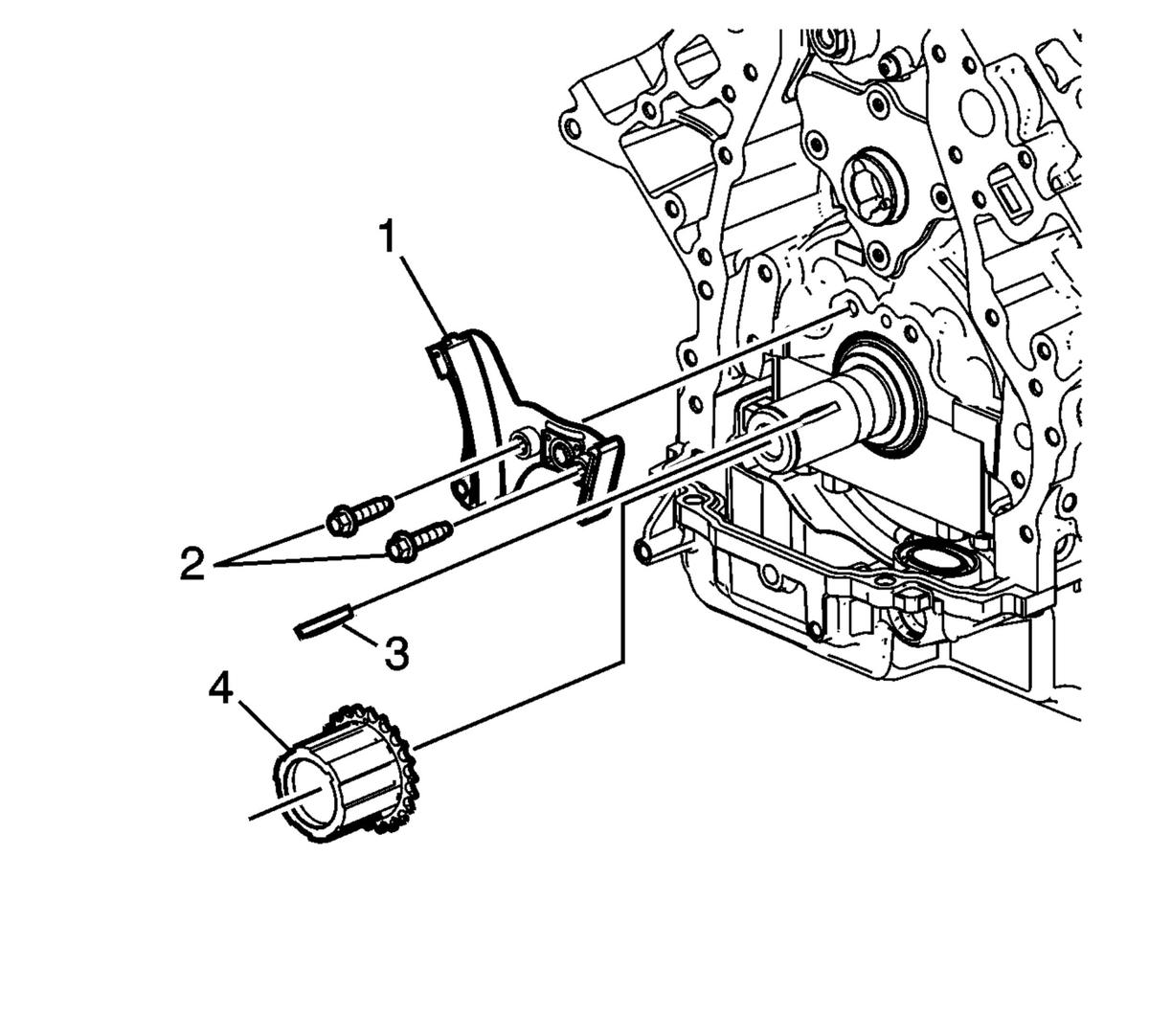

Remove the crankshaft sprocket (4) and key (3).
Remove the timing chain tensioner bolts (2) and the timing chain tensioner (1).
Courtesy of GENERAL MOTORS COMPANY

Engine Block Valley Cover (2) - Remove - Engine Block Valley Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

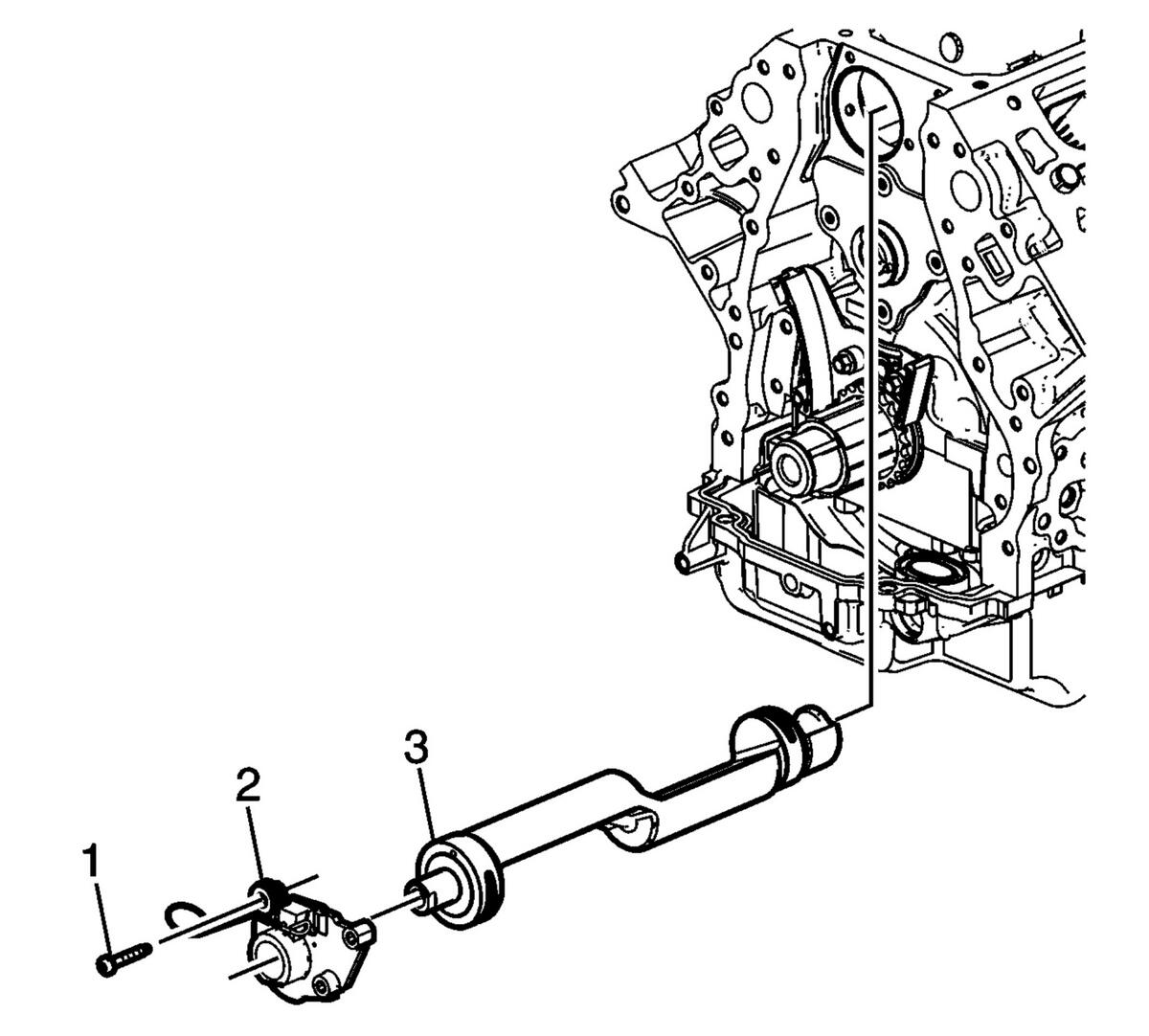

Remove the remaining balancer shaft retainer bolt (1) and the balancer shaft retainer (2).
Remove the balancer shaft assembly (3).
