Valve Rocker Arm and Push Rod Removal

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

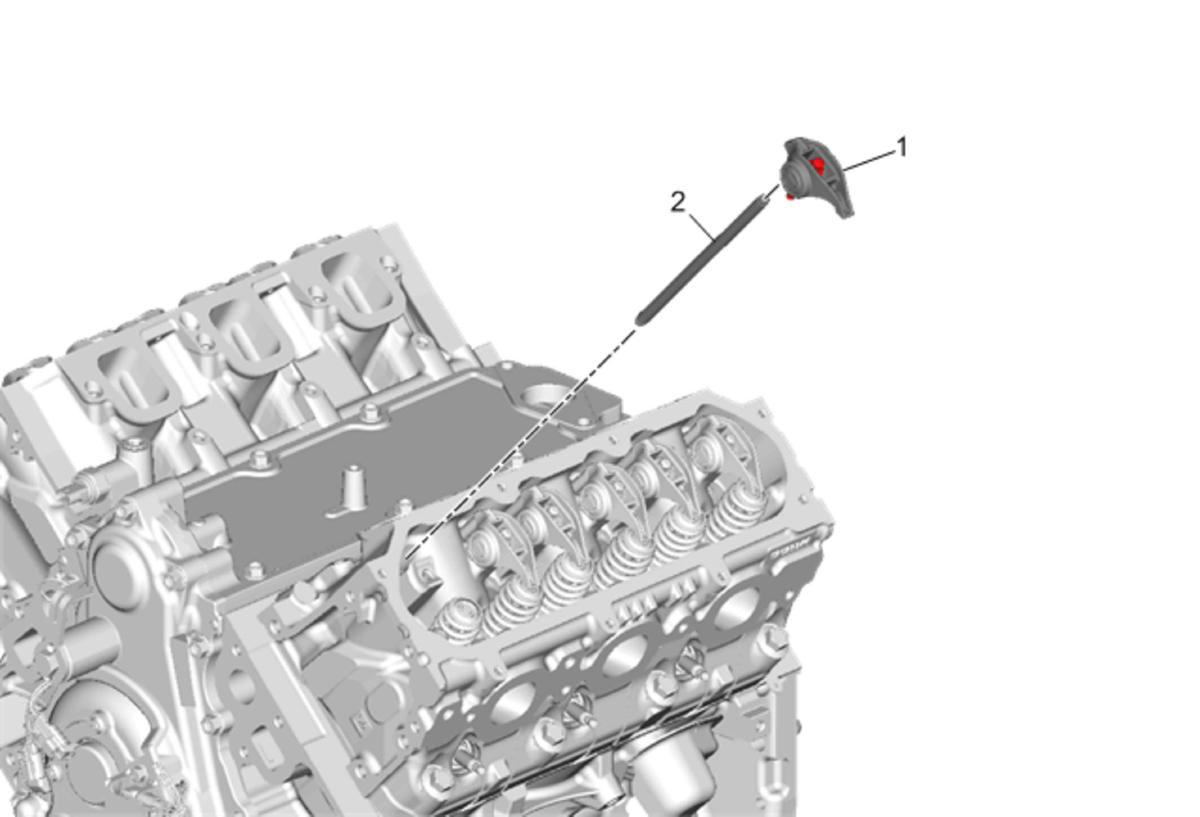

GM4807890Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Valve Rocker Arm
NOTE:
  • The rocker arm bolts are not serviced separately.
  • Place the valve rocker arms and valve pushrods in a rack so they can be installed in the same location from which they were removed.
2 Valve Push Rod
