Valve Rocker Arm Cover Assemble - Right Side
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

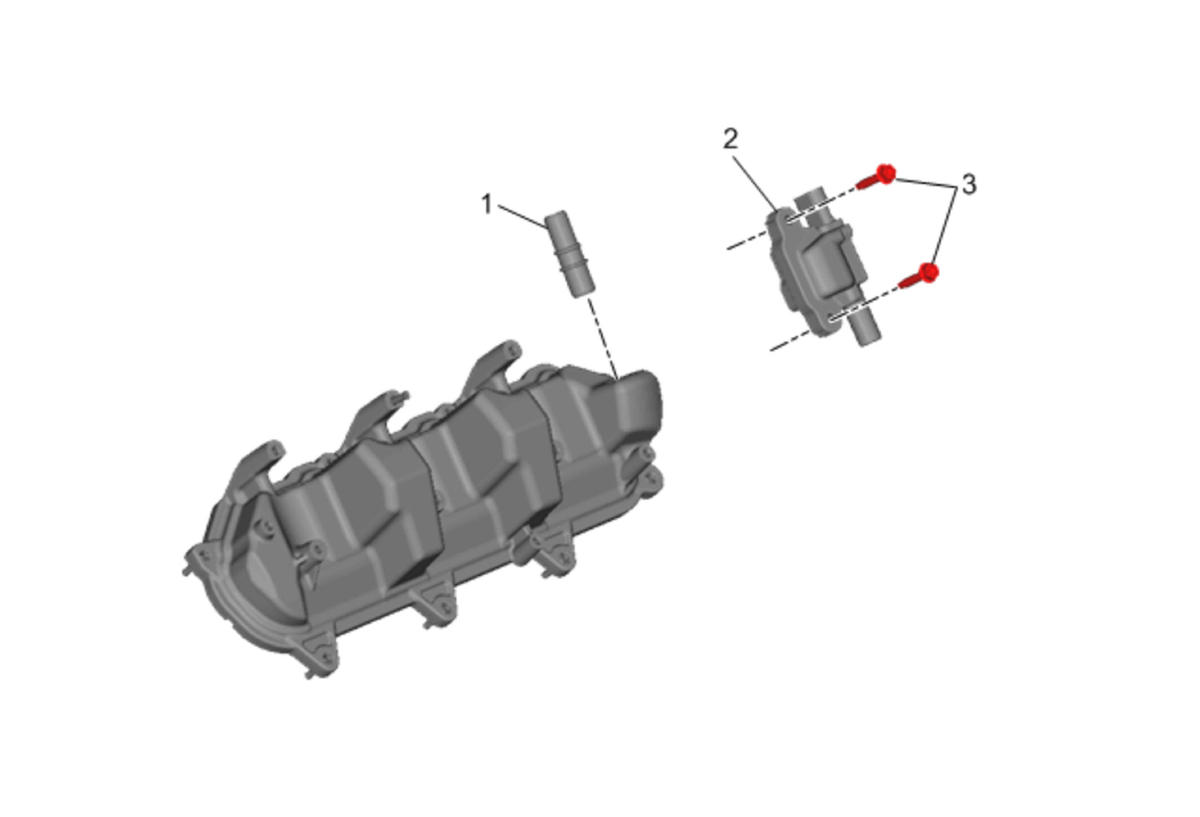

Valve Rocker Arm Cover Assemble - Right Side
| Callout | Component Name |
|---|---|
| 1 | Positive Crankcase Ventilation Hose Fitting |
| 2 | Ignition Coil |
| 3 | Ignition Coil Bolt
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (88 lb in) |
