Valve Rocker Arm Cover Assemble - Left Side
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

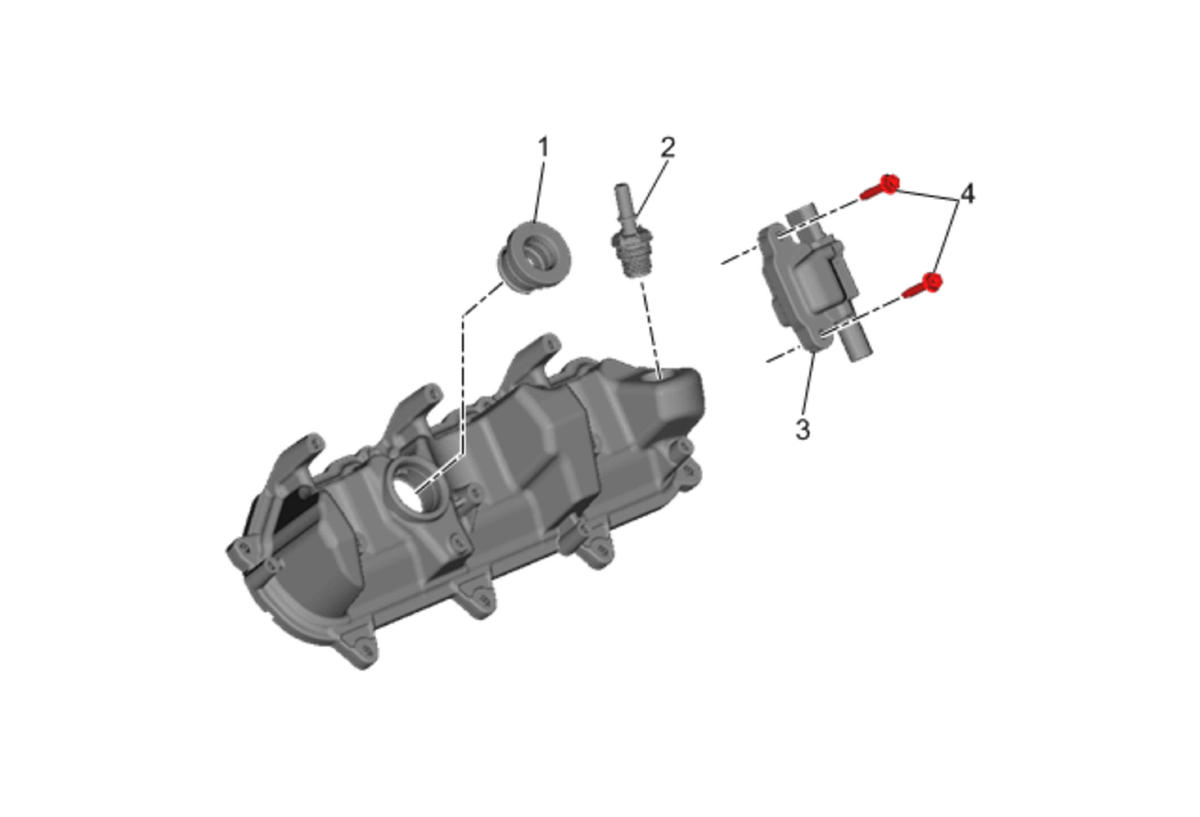

Valve Rocker Arm Cover Assemble - Left Side
| Callout | Component Name |
|---|---|
| 1 | Oil Filler Tube Grommet |
| 2 | Positive Crankcase Ventilation Hose Fitting
CAUTION:
Refer to Fastener Caution . Tighten 6 N.m (53 lb in) |
| 3 | Ignition Coil |
| 4 | Ignition Coil Bolt Tighten 10 N.m (88 lb in) |
