Valve Lifter Removal

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

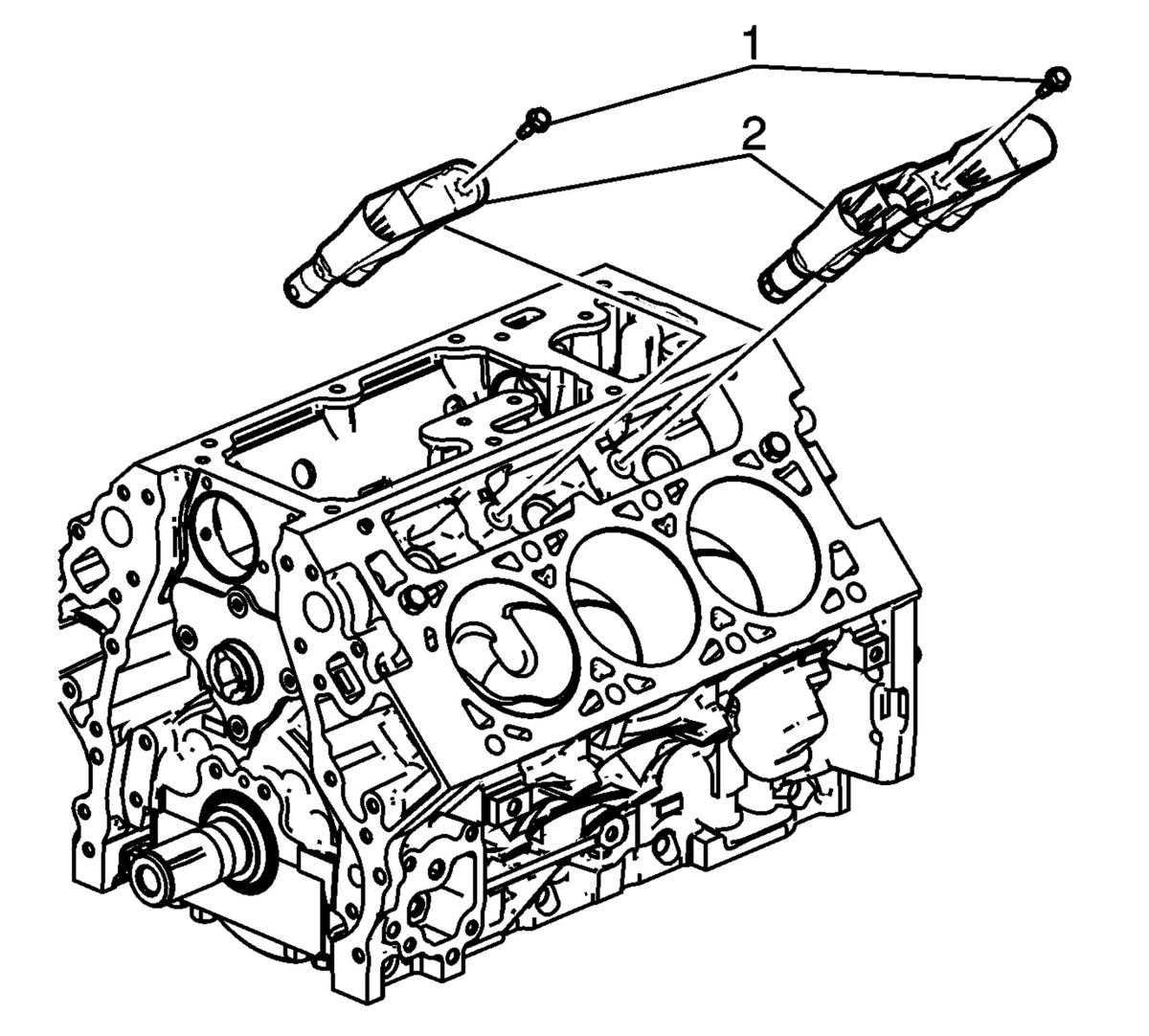

  1. GM2899125Courtesy of GENERAL MOTORS COMPANY

    Remove the bolts (1).

  2. Remove the guides (2) with lifters.

    Note the installed position of the guides. The notched area of the guide is to align with the locating tab of the block.

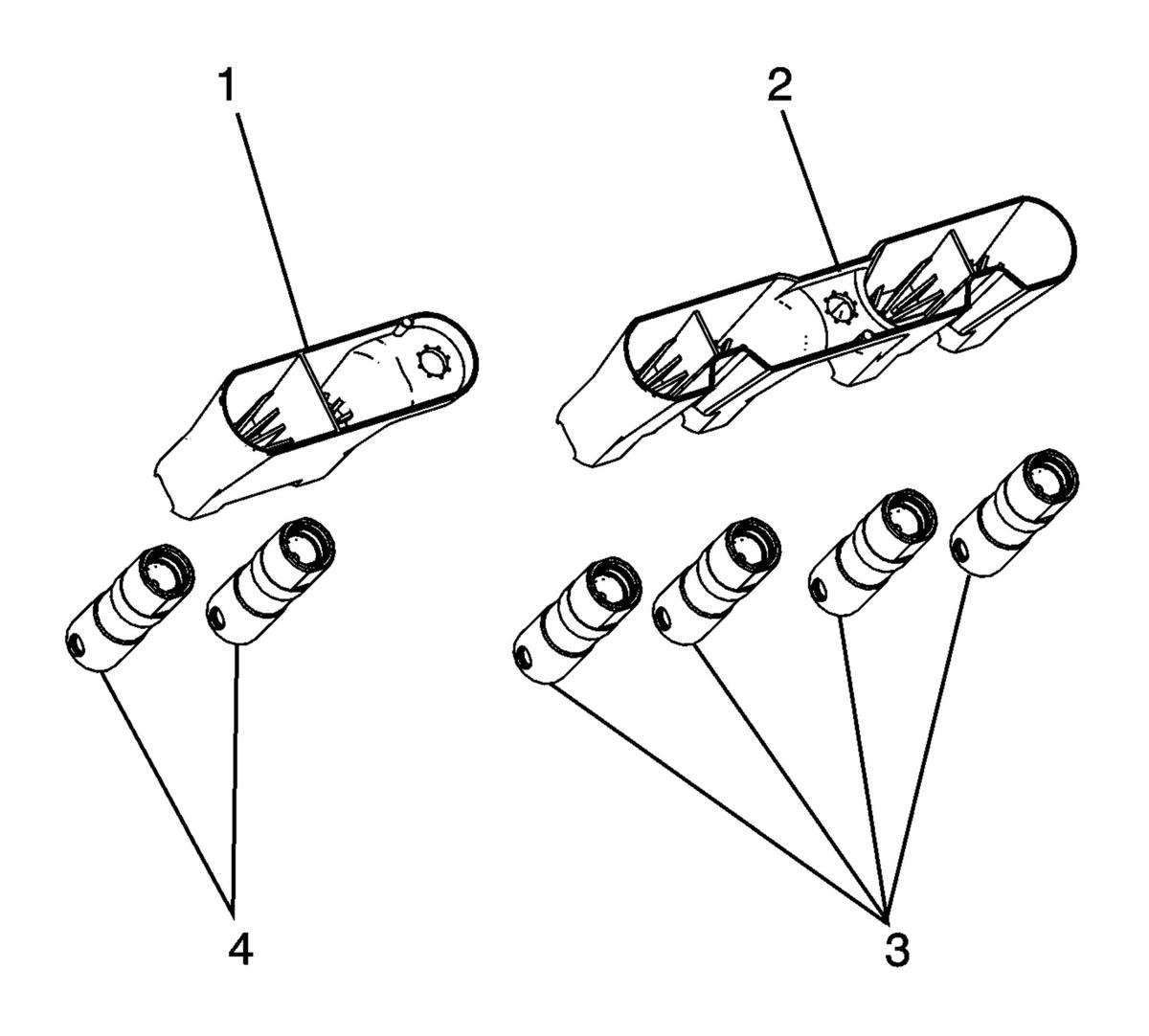

  3. GM3352411Courtesy of GENERAL MOTORS COMPANY

    Remove the valve lifters (3 and 4) from the guides (1 and 2).

  4. Organize or mark the components so they can be installed in the same location from which they were removed. Refer to Separating Parts .
