Throttle Body Assembly Installation
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

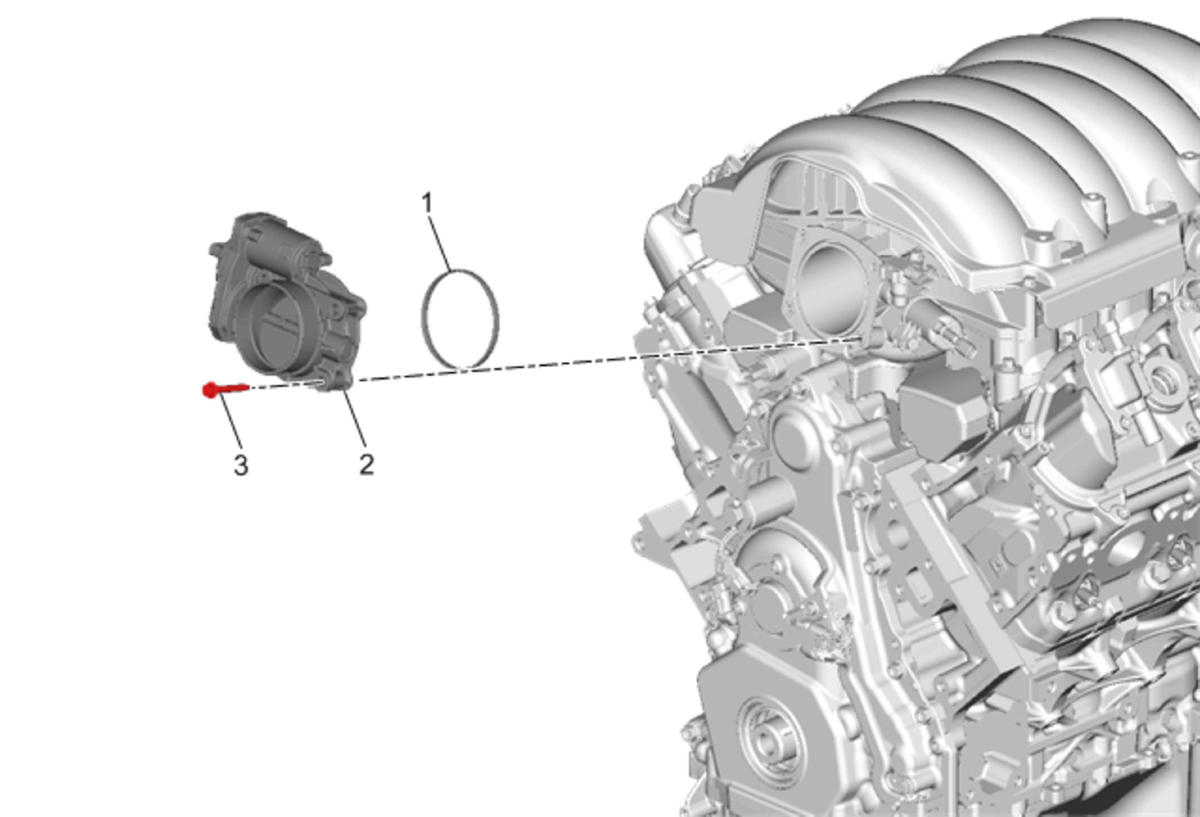

| Callout | Component Name |
|---|---|
| 1 | Throttle Body Gasket
NOTE:
A NEW gasket must be used when installing the throttle body assembly. |
| 2 | Throttle Body Assembly |
| 3 | Throttle Body Assembly Bolt [4x]
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (88 lb in) |
