Oil Pan Installation

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

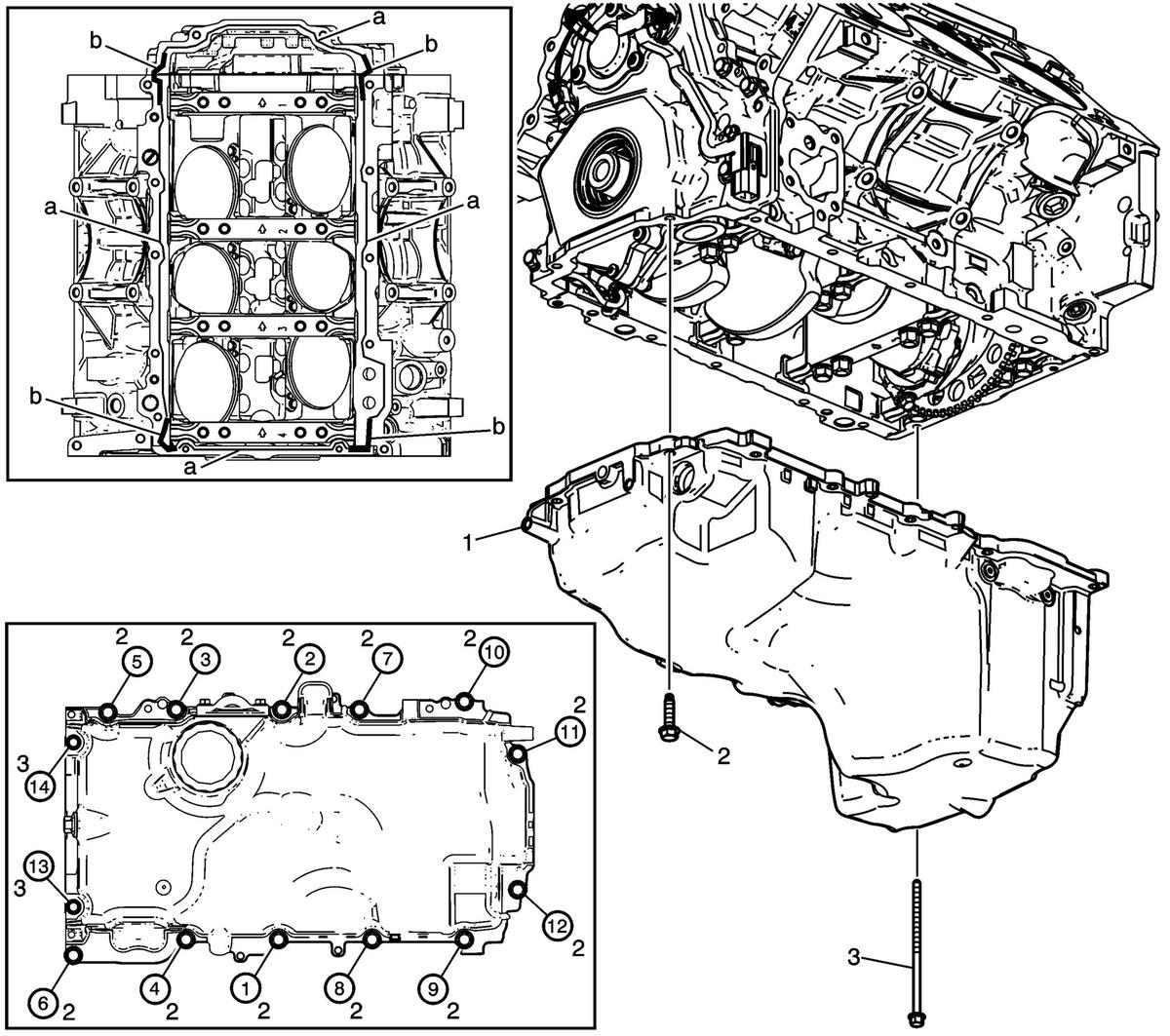

Fig 1: Oil Pan With Tightening Sequence

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Oil Pan NOTE: Install and align the oil pan within 10 minutes of applying the sealer. Procedure Ensure proper use of room temperature vulcanizing (RTV) sealant. Use of Room Temperature Vulcanizing (RTV) and Anaerobic Sealant Apply a 3 mm (0.118 in) bead of RTV sealant on the engine front cover as shown (a). Apply a 5 mm (0.197 in) bead of RTV sealant on the engine front cover as shown (b). Refer to Adhesives, Fluids, Lubricants, and Sealers .
2	Oil Pan Bolt CAUTION: Refer to Fastener Caution . Tighten in sequence 25 N.m (18 lb ft)
3	Oil Pan Bolt Tighten in sequence 12 N.m (106 lb in)

Callout

Component Name

Oil Pan

NOTE:

Install and align the oil pan within 10 minutes of applying the sealer.

Procedure

Ensure proper use of room temperature vulcanizing (RTV) sealant. Use of Room Temperature Vulcanizing (RTV) and Anaerobic Sealant
Apply a 3 mm (0.118 in) bead of RTV sealant on the engine front cover as shown (a). Apply a 5 mm (0.197 in) bead of RTV sealant on the engine front cover as shown (b). Refer to Adhesives, Fluids, Lubricants, and Sealers .

Oil Pan Bolt

CAUTION:

Refer to Fastener Caution .

Tighten in sequence
25 N.m (18 lb ft)

Oil Pan Bolt
Tighten in sequence
12 N.m (106 lb in)
