Oil Level Indicator and Tube Removal
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

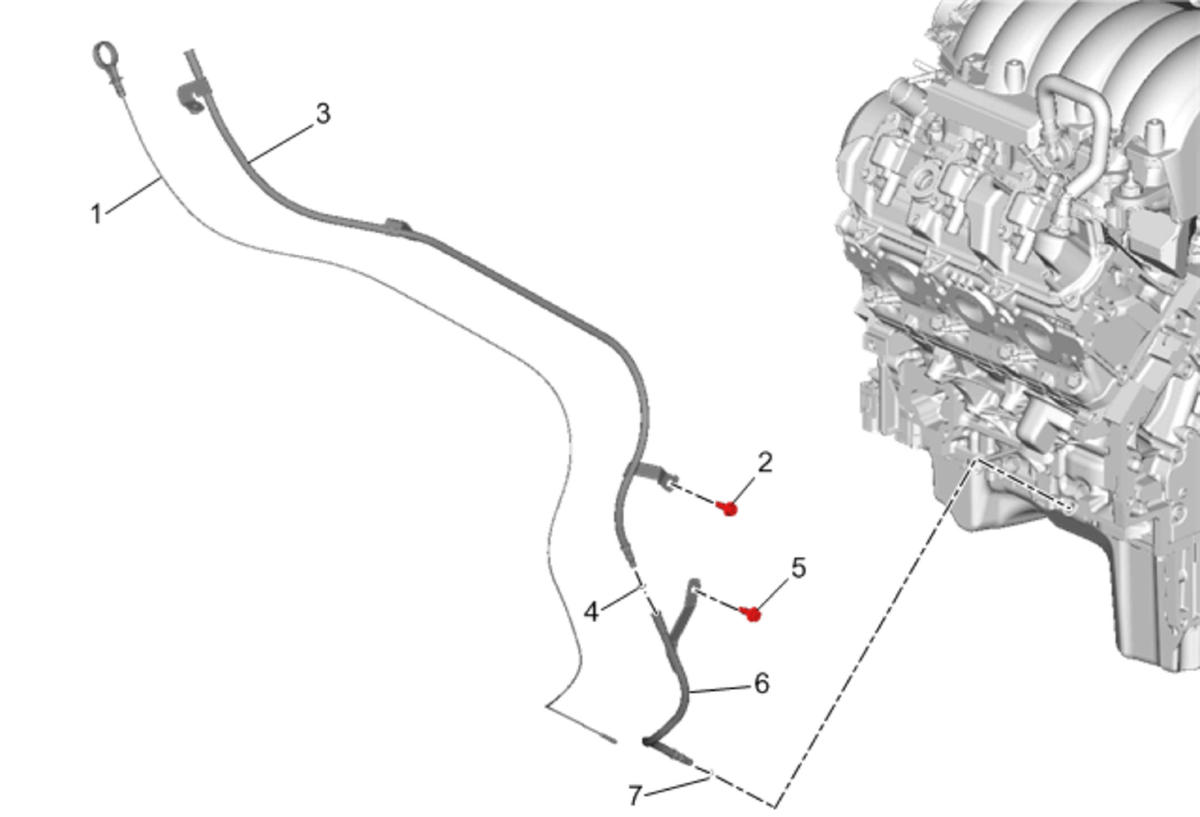

| Callout |
Component Name |
| 1 |
Oil Level Indicator |
| 2 |
Oil Level Indicator Tube Bracket Bolt |
| 3 |
Oil Level Indicator Tube |
| 4 |
Oil Level Indicator Tube Seal |
| 5 |
Oil Level Indicator Tube Bracket Bolt |
| 6 |
Oil Level Indicator Tube |
| 7 |
Oil Level Indicator Tube Seal |
