Intake Manifold Cover Removal

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

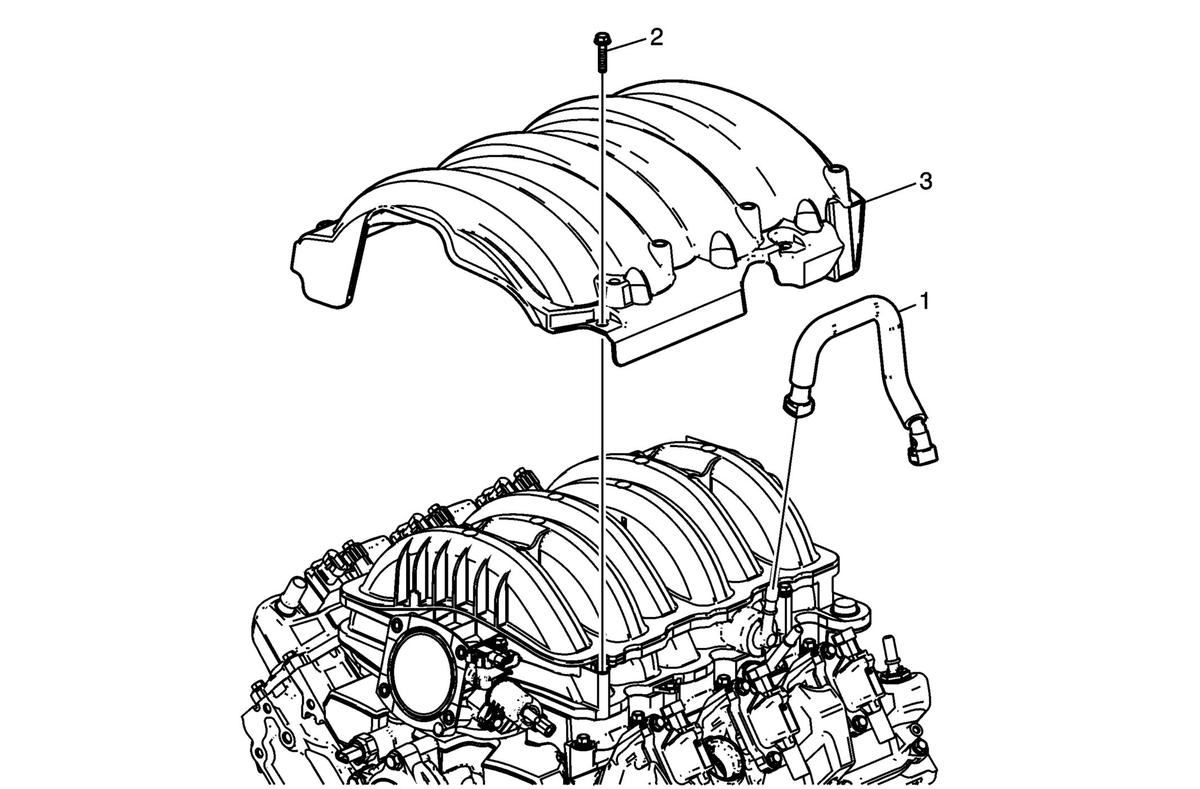

Callout	Component Name
1	Positive Crankcase Ventilation Tube Procedure The PCV tube is connected to the intake manifold and the engine via a plastic collar quick connect fitting. To remove the PCV tube, refer to Plastic Collar Quick Connect Fitting Service .
2	Intake Manifold Cover Bolt
3	Intake Manifold Cover

Callout

Component Name

Positive Crankcase Ventilation Tube

Procedure

The PCV tube is connected to the intake manifold and the engine via a plastic collar quick connect fitting.
To remove the PCV tube, refer to Plastic Collar Quick Connect Fitting Service .

Intake Manifold Cover Bolt

Intake Manifold Cover
