Intake Manifold Cover Installation

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

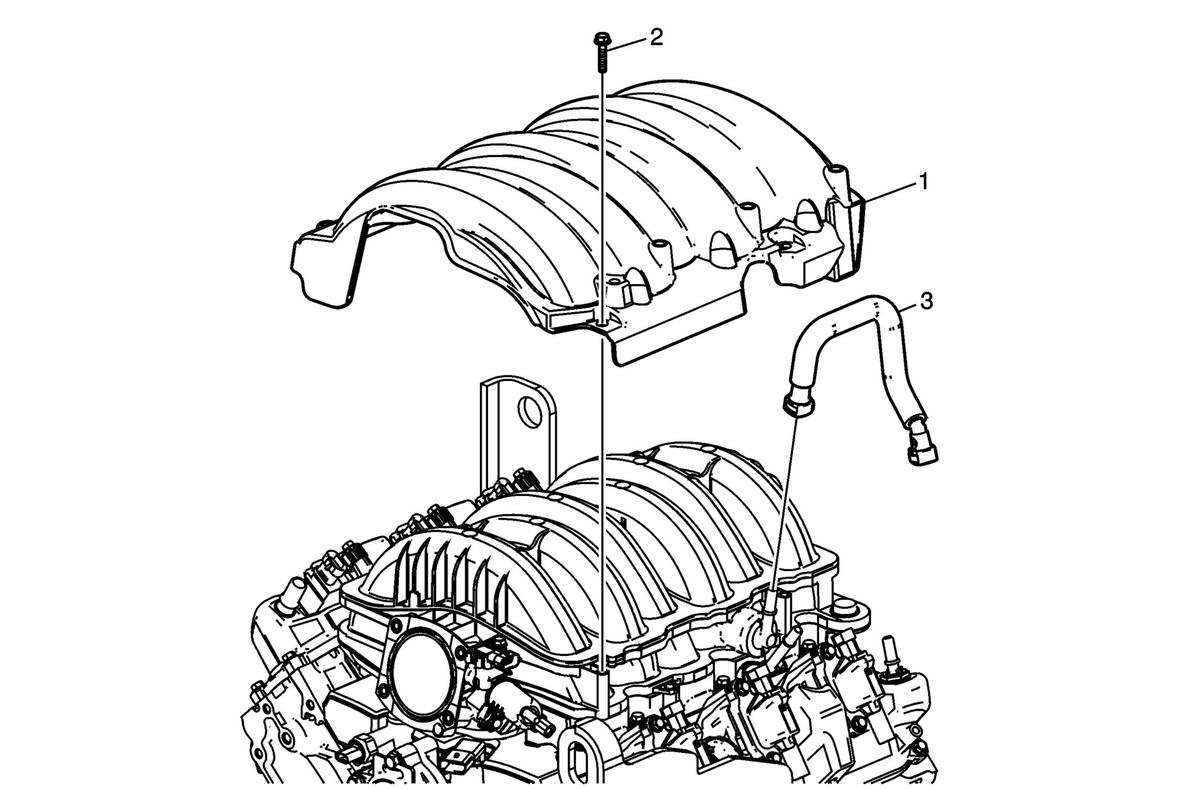

Callout	Component Name
1	Intake Manifold Cover
2	Intake Manifold Cover Bolt CAUTION: Refer to Fastener Caution . Tighten 4.5 N.m (40 in lb)
3	Positive Crankcase Ventilation Tube Procedure The positive crankcase ventilation tube is connected to the intake manifold and the engine via a plastic collar quick connect fitting. To install the positive crankcase ventilation tube Plastic Collar Quick Connect Fitting Service .

Callout

Component Name

Intake Manifold Cover

Intake Manifold Cover Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
4.5 N.m (40 in lb)

Positive Crankcase Ventilation Tube

Procedure

The positive crankcase ventilation tube is connected to the intake manifold and the engine via a plastic collar quick connect fitting.
To install the positive crankcase ventilation tube Plastic Collar Quick Connect Fitting Service .
