Fuel Pump Removal
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

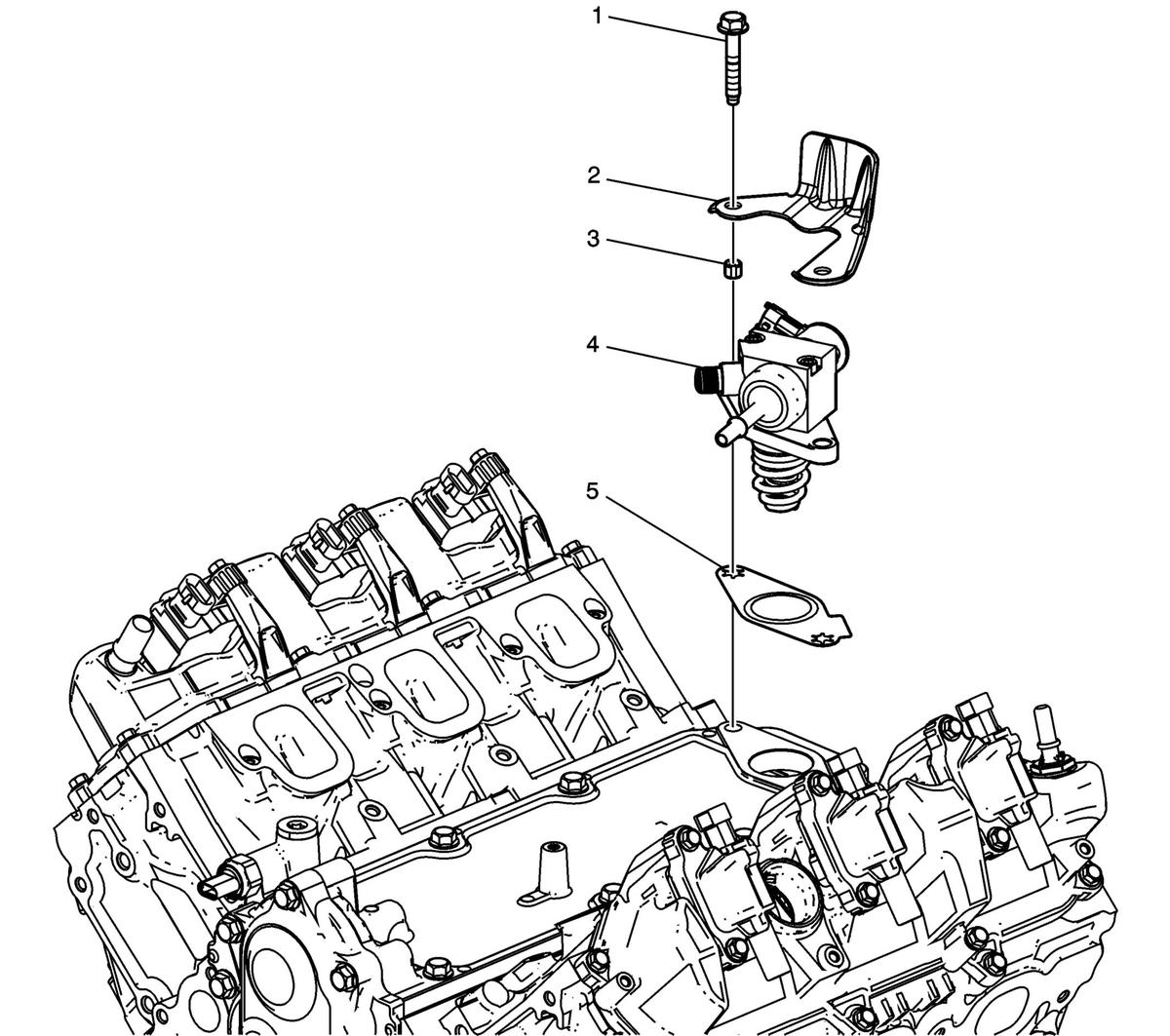

| Callout | Component Name |
|---|---|
| 1 | Fuel Pump Bolt
CAUTION:
Alternately loosen the fuel pump bolts one turn at a time until the pump is fully disengaged from fuel pump lifter follower. Trying to remove the pump bolts without even side-to-side loosening may result in pump plunger damage |
| 2 | Fuel Pump Cover |
| 3 | Fuel Pump Bolt Retainer |
| 4 | Fuel Pump |
| 5 | Fuel Pump Gasket Replacing Engine Gaskets |
