Front Cover Removal

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

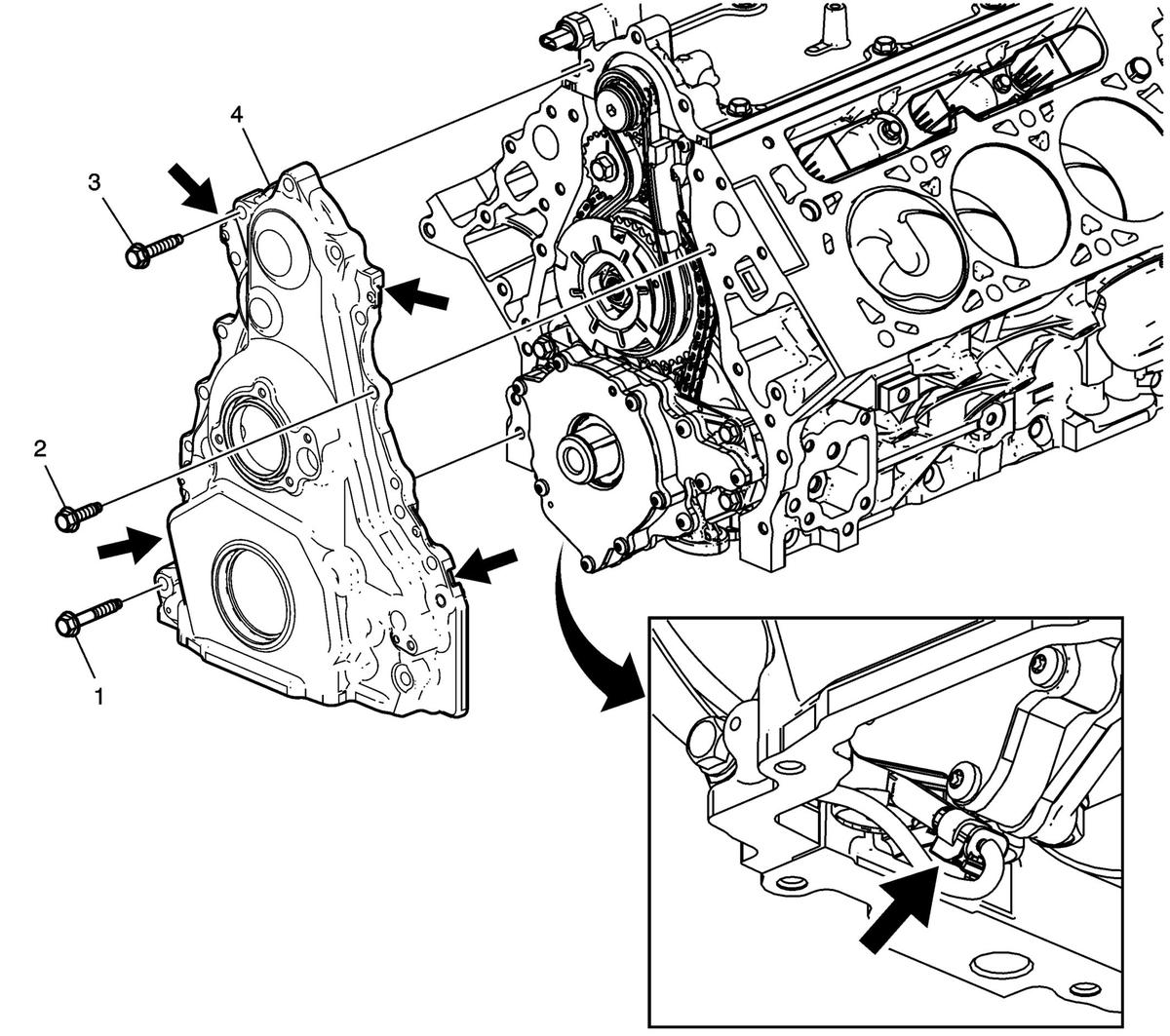

GM3351578Courtesy of GENERAL MOTORS COMPANY
Front Cover Removal

Callout Component Name
Preliminary Procedure
The oil pump flow control valve harness must be removed before the front cover can be removed.
1 Engine Front Cover Bolt [2x]
2 Engine Front Cover Bolt [8x]
3 Engine Front Cover Bolt [3x]
4 Engine Front Cover
NOTE:

To separate the front cover from the engine, pry at the points that are shown by the arrows.
