Oil Pump Flow Control Valve Harness Installation
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

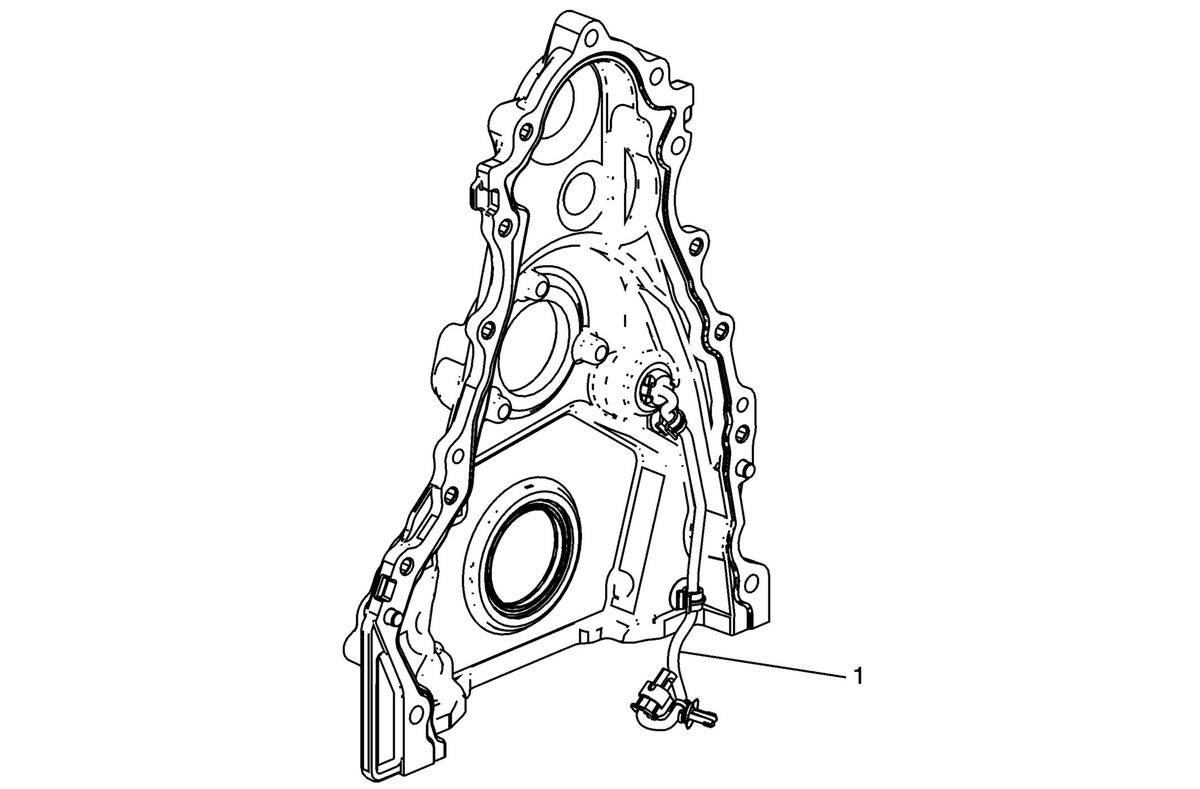

Oil Pump Flow Control Valve Harness Installation
| Callout |
Component Name |
| 1 |
Oil Pump Flow Control Solenoid Valve Wire Procedure
- Install the harness through the front of the engine front cover and push connector into engine front cover until it clicks.
- Install the wire into the 2 retainer clips.
|
