Engine Coolant Manifold Disassemble

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

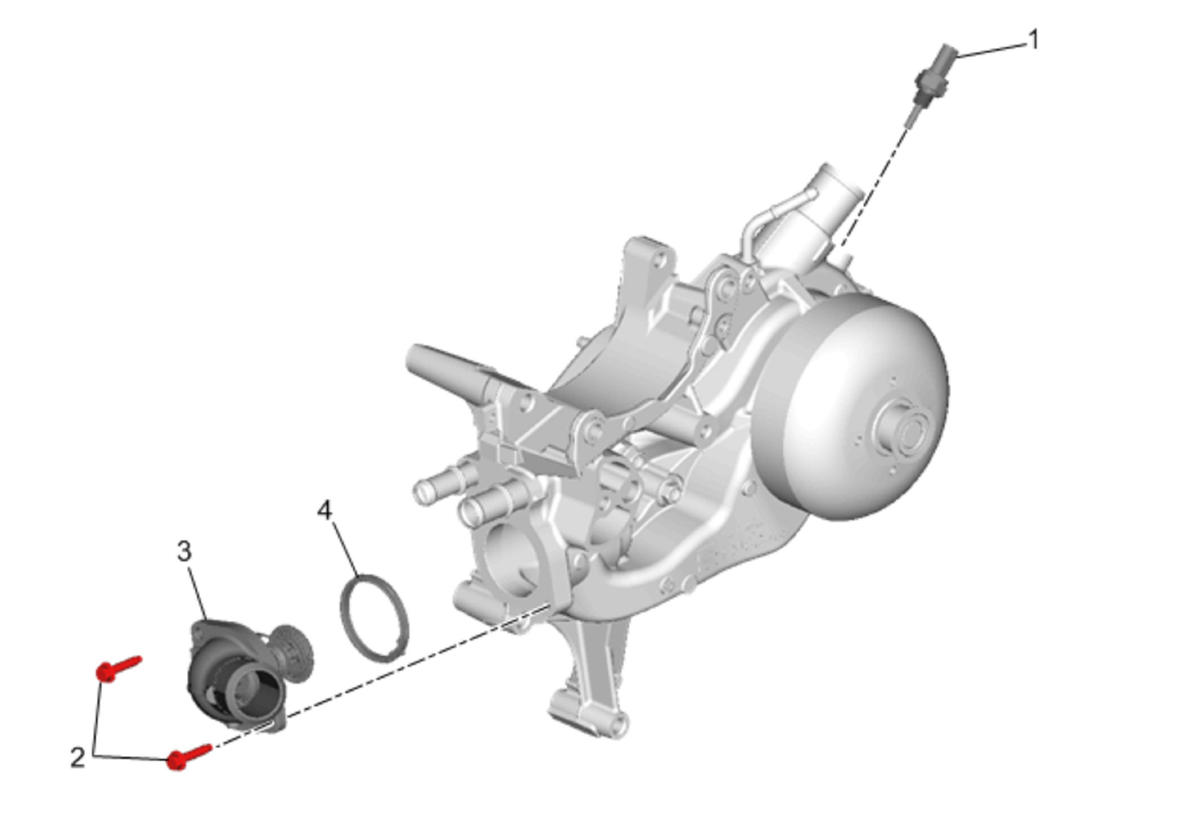

GM4807878Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Engine Coolant Temperature Sensor
2 Water Pump Inlet Assembly Bolt [2x]
3 Water Pump Inlet Assembly (with Thermostat)
4 Water Pump Inlet Gasket
NOTE:

DISCARD the gasket.
