Engine Coolant Manifold Assemble

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

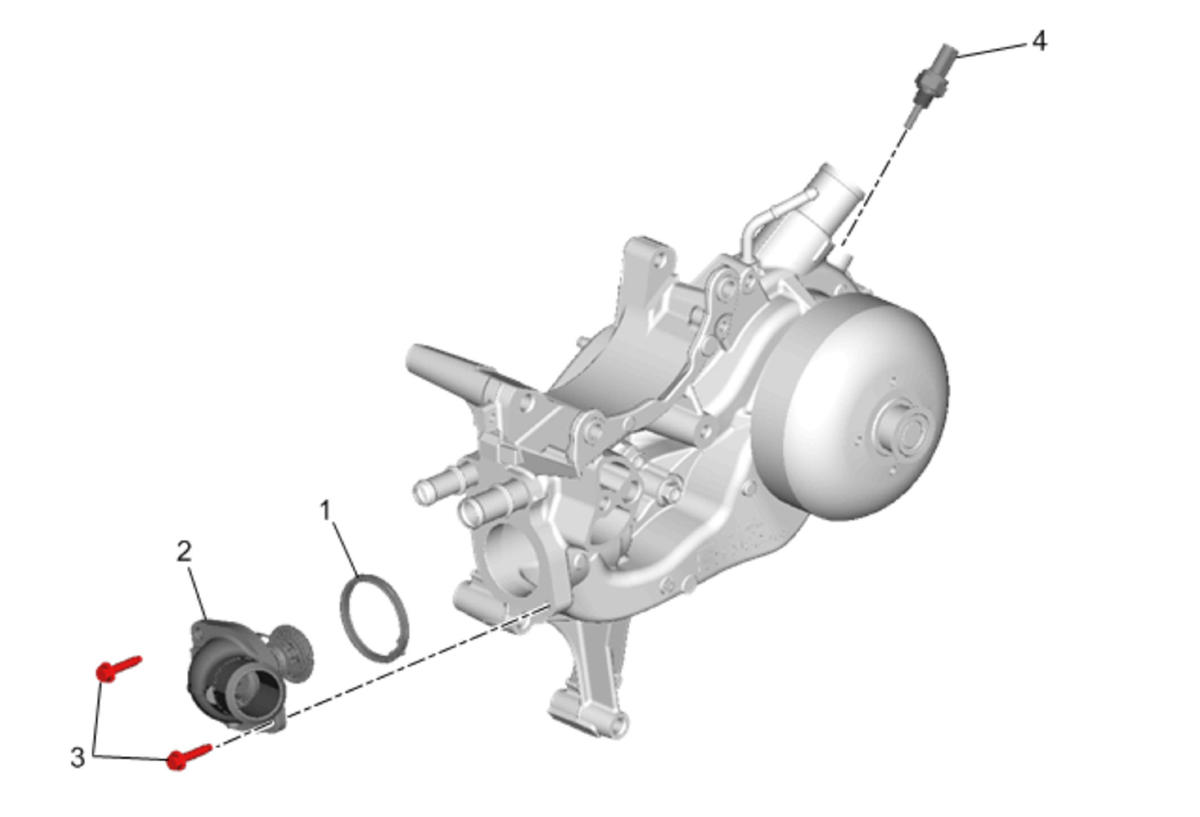

GM4807884Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Water Pump Inlet Gasket
NOTE:

Install a NEW Gasket.
2 Water Pump Inlet Assembly (with Thermostat)
3 Water Pump Inlet Bolt [2x]
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Install and hand tighten all three bolts.
  2. Tighten bolts to final torque.

Tighten
10 N.m (88 lb in)
4 Engine Coolant Temperature Sensor
Tighten
20 N.m (15 lb ft)
