Engine Block Valley Cover Disassemble

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

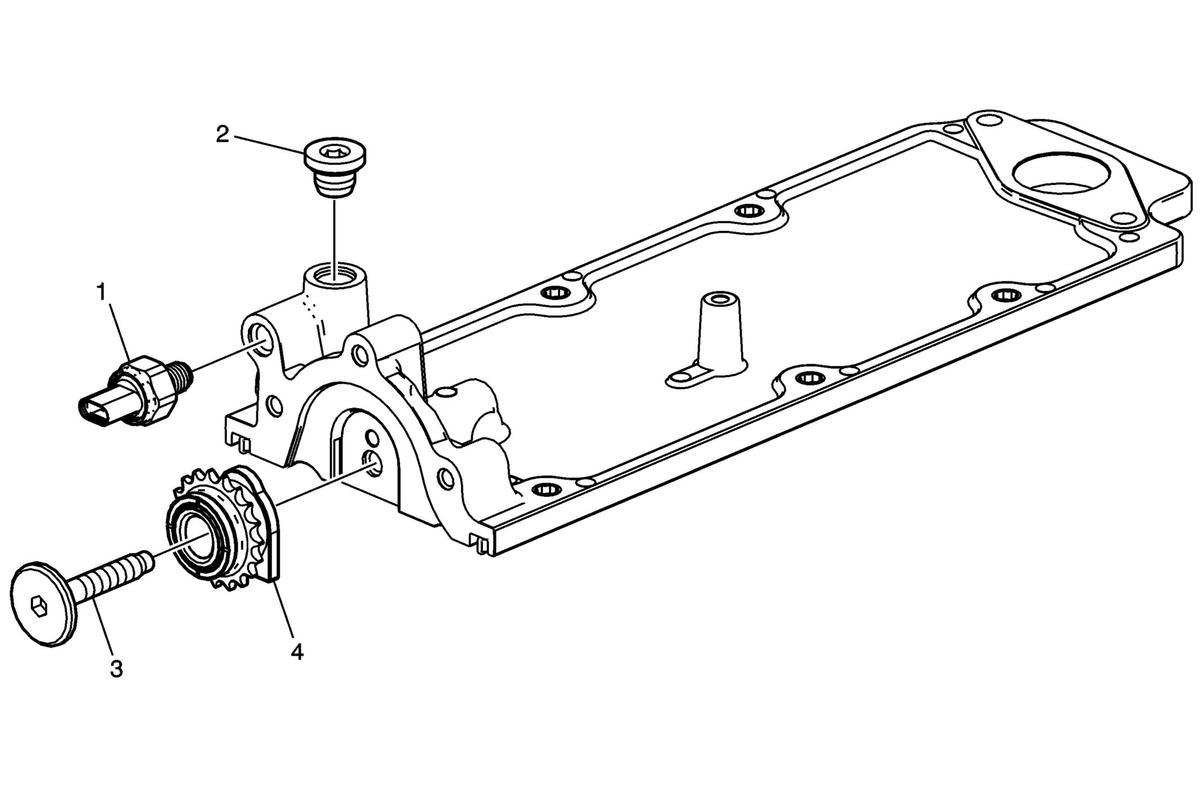

GM3352358Courtesy of GENERAL MOTORS COMPANY
Engine Block Valley Cover Disassemble

Callout Component Name
1 Oil Pressure Sensor
2 Engine Block Valley Cover Plug
3 Balance Shaft Driven Sprocket Bolt
4 Balance Shaft Driven Sprocket
