Engine Block Valley Cover Assemble
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
Engine Block Valley Cover Assemble

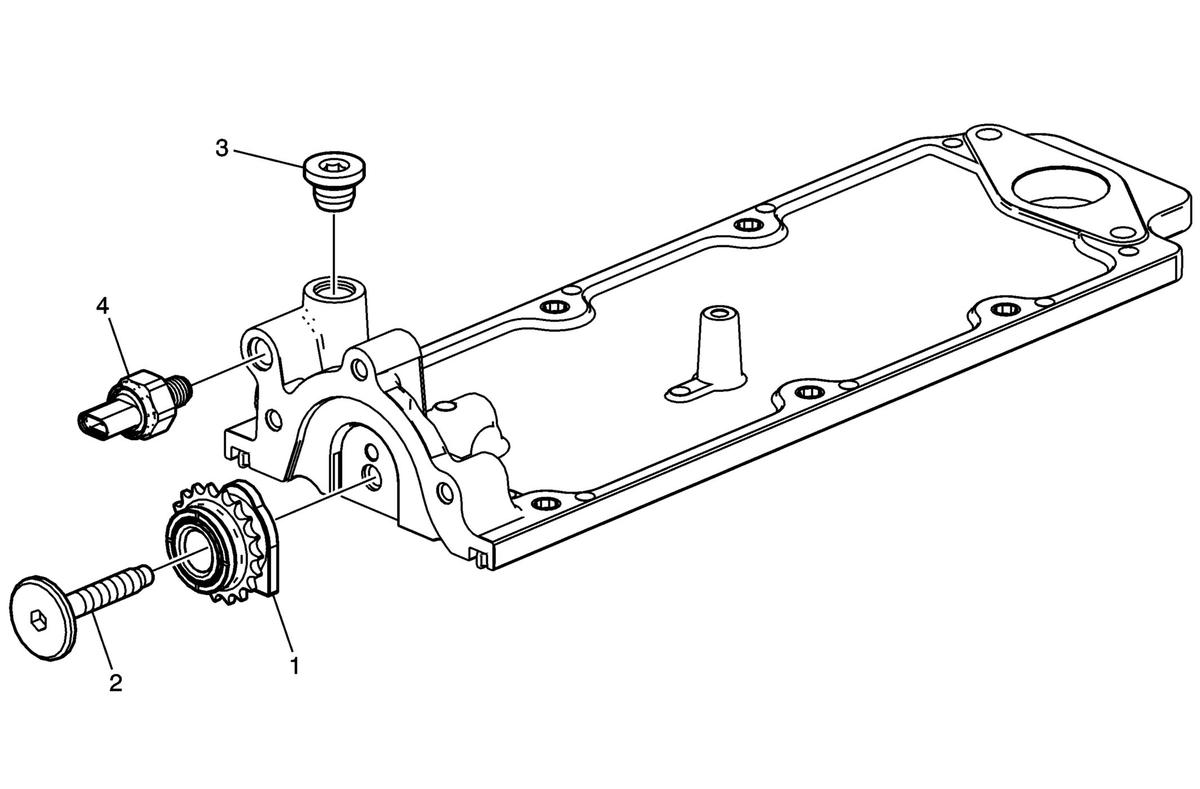

| Callout | Component Name |
|---|---|
| 1 | Balance Shaft Driven Sprocket |
| 2 | Balance Shaft Driven Sprocket Bolt Tighten 58 N.m (43 lb ft) |
| 3 | Oil Pressure Sensor Procedure Apply sealant GM P/N 12346004 (Canadian P/N 10953480) to the threads of the sensor. Refer to Adhesives, Fluids, Lubricants, and Sealers . Tighten 35 N.m (26 lb ft) |
| 4 | Engine Block Valley Cover Plug
CAUTION:
Refer to Fastener Caution . Procedure Apply sealant GM P/N 12346004 (Canadian P/N 10953480) to the threads of the plug. Refer to Adhesives, Fluids, Lubricants, and Sealers . Tighten 30 N.m (22 lb ft) |
