Plug Removal - Right Side

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

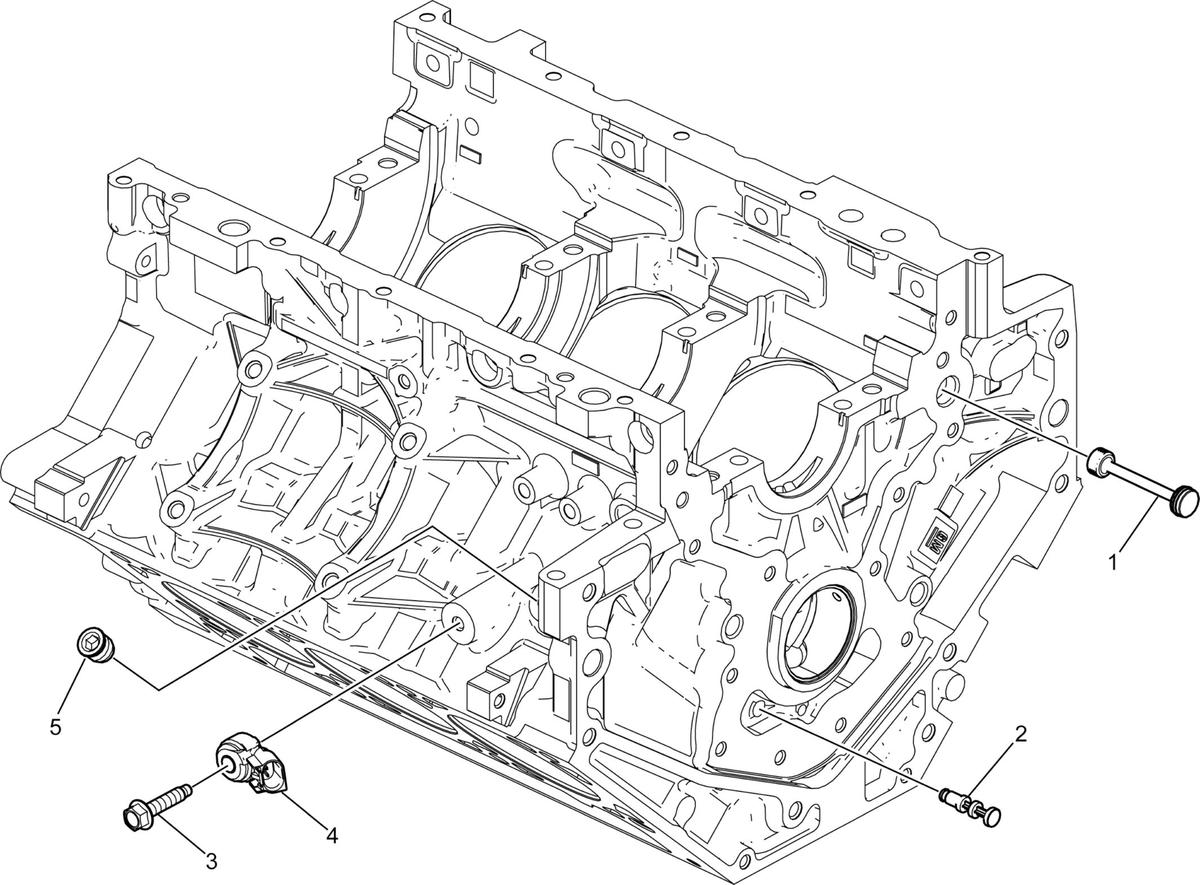

GM4802945Courtesy of GENERAL MOTORS COMPANY
Plug Removal - Right Side

Callout Component Name
1 Engine Block Oil Gallery Plug
2 Engine Block Oil Gallery Plug
3 Knock Sensor Bolt
4 Knock Sensor
5 Engine Block Core Hole Plug
