Plug Removal - Left Side
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

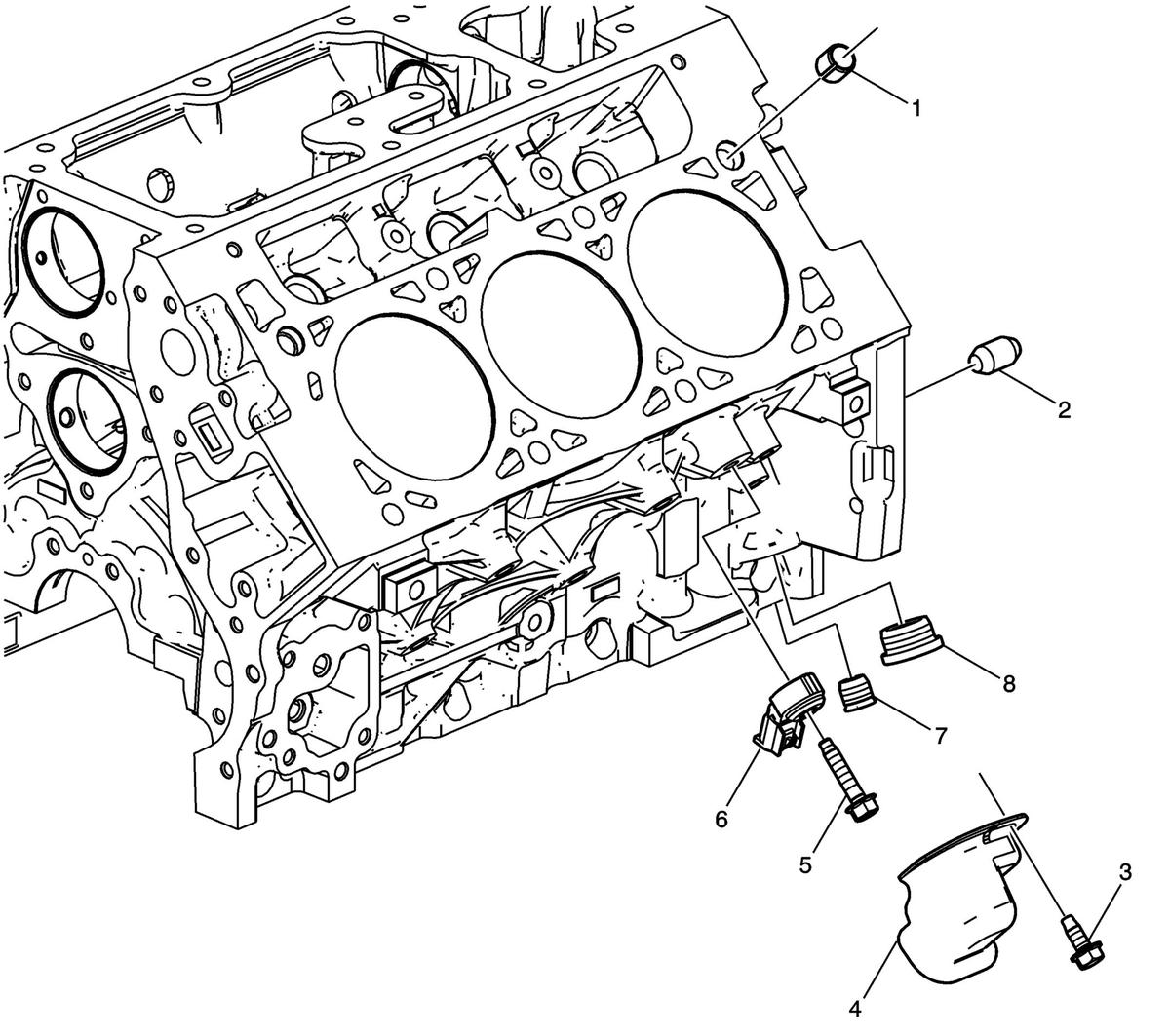

Plug Removal - Left Side
| Callout |
Component Name |
| 1 |
Cylinder Head Locating Pin |
| 2 |
Transmission Locating Pin |
| 3 |
Knock Sensor Heat Shield Bolt |
| 4 |
Knock Sensor Heat Shield |
| 5 |
Knock Sensor Bolt |
| 6 |
Knock Sensor |
| 7 |
Engine Block Oil Gallery Plug |
| 8 |
Engine Block Core Hole Plug |
