Plug Installation - Right Side
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

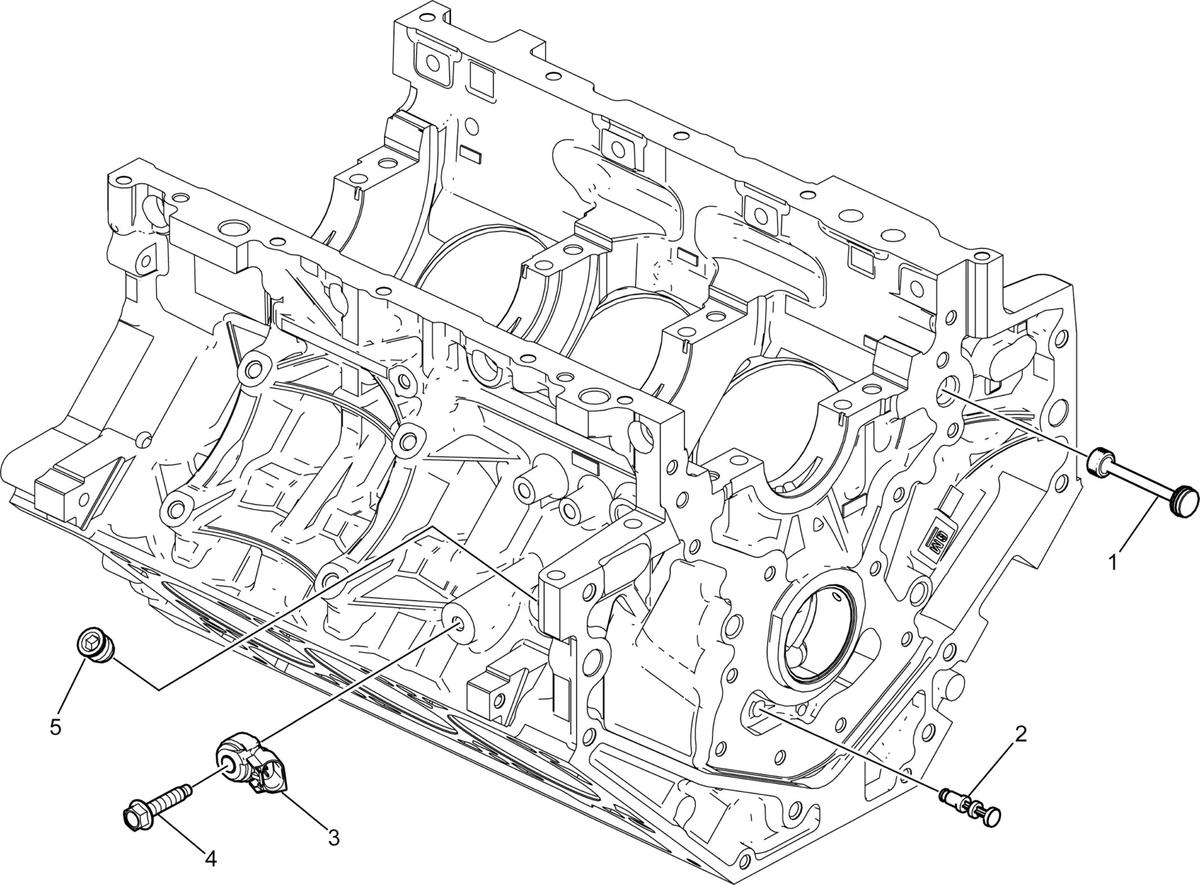

Plug Installation - Right Side
| Callout | Component Name |
|---|---|
| 1 | Engine Block Oil Gallery Plug |
| 2 | Engine Block Oil Gallery Plug |
| 3 | Knock Sensor Assembly |
| 4 | Knock Sensor Bolt
CAUTION:
Refer to Fastener Caution . Tighten 25 N.m (18 lb ft) |
| 5 | Engine Block Plug Tighten 30 N.m (22 lb ft) |
